ABBElectro-Pneumatic Positioner TZIDC

1.5 Modular design Pos: 3.18 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/ModularerAufbau @ 10mod_1173184783043_3101.doc @ 71181 q

The TZIDC basic model can be enhanced at any time by retrofitting

optional equipment. Option modules for analog or digital position

feedback or a shutdown-module can be installed. Additionally, a

mechanical position indicator, proximity switches or 24 V

microswitches are available for indicating the position independently

of the mother board function

Electro-Pneumatic Positioner TZIDC 10/18-0.22-EN

for 4 … 20 mA two-wire technology

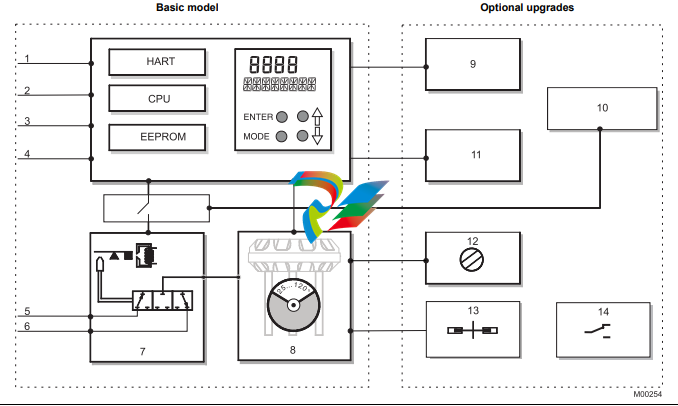

Basic model Optional upgrades

1 LKS plug 9 Plug module for analog feedback (4 … 20 mA)

2 Positioning signal 4 … 20 mA 10 Plug-in module for safety shutdown (forced depressurization)

3 Digital input 11 Plug module for digital feedback

4 Digital output DO 12 Installation kit for mechanical position indicator

5 Supply, 1.4 … 6 bar 13 Installation kit for digital feedback with proximity switches

6 Exhaust 14 Installation kit for digital feedback with 24 V microswitches

7 I/P module with 3/3-way valve

8 Position sensor (optional up to 270° rotation angle)

Important

With optional upgrades either the “Installation kit for digital feedback with proximity switches” (13) or the “Installation

kit for digital feedback with microswitches 24 V” (14) can be used.

In both cases, the “mechanical position indicator” (8) must be installed.

2 Mounting versions Pos: 5.2 /==== Wechsel ein- auf zweispaltig ==== @ 0mod_1130421847171_3101.doc @ 3828

Wechsel ein-auf zweispaltig Pos: 5.3 /Überschriften/1.1/2-spaltig/Genormter Anbau an pneumatische Linearantriebe @ 10mod_1176212852312_3101.doc @ 76956

2.1 To linear actuators in accordance with the

standard Pos: 5.4 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Montage/Genormter Anbau an pneumatische Linearantriebe @ 10mod_1176213091968_3101.doc @ 77040

Lateral attachment is in accordance with DIN / IEC 534 (lateral

attachment to NAMUR). The required attachment kit is a complete

set of attachment material, but does not include the screwed pipe

connections and air pipes.

Pos: 5.5 /Überschriften/1.1/2-spaltig/Genormter Anbau an pneumatische Schwenkantriebe @ 10mod_1176212899953_3101.doc @ 76977

2.2 To rotary actuators in accordance with the

standard Pos: 5.6 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Montage/Genormter Anbau an pneumatische Schwenkantriebe @ 10mod_1176213146937_3101.doc @ 77061

This attachment is designed for mounting according to the standard

VDI/VDE 3845. The attachment kit consists of a console with

mounting screws for mounting on a rotary actuator. The adapter for

coupling the positioner feedback shaft to the actuator shaft has to be

ordered separately. Screwed pipe connections and air pipes have to

be provided on site.

Pos: 5.7 /======= Spaltenumbruch ======== @ 0mod_1132937966324_3101.doc @ 3831

Pos: 5.8 /Überschriften/1.1/2-spaltig/Integrierter Anbau an Regelventile @ 10mod_1176212940421_3101.doc @ 76998

2.3 Integral mounting to control valves Pos: 5.9 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Montage/Integrierter Anbau an Regelventile, TZIDC-1x0 @ 10mod_1176213402234_3101.doc @ 77103

The TZIDC positioner featuring standard pneumatic action is also

suitable for integral mounting.

The required holes are found at the back of the device.

The benefit of this design is that the point for mechanical stroke

measurement is protected and that the positioner and actuator are

linked internally. No external tubing is required.

Pos: 5.10 /Überschriften/1.1/2-spaltig/Besondere antriebsspezifische Anbauversionen @ 10mod_1176212991062_3101.doc @ 77019

2.4 Special actuator-specific mounting Pos: 5.11 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Montage/Besondere antriebsspezifische Anbauversionen @ 10mod_1173186727709_3101.doc @ 71265

In addition to the mounting methods described above, there are

special actuator-specific attachments.

Please contact us for details.

Electro-Pneumatic Positioner TZIDC 10/18-0.22-EN

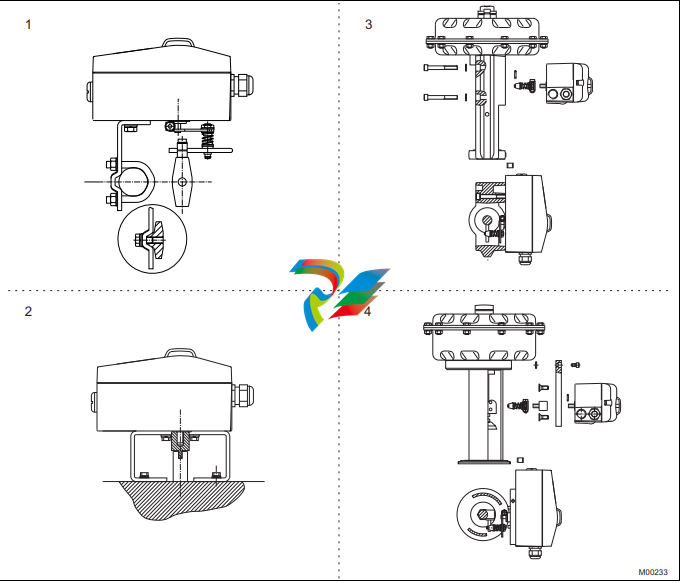

Fig. 2: Mounting options

1 Mounting to linear actuators acc. to DIN / IEC 534 3 Integral mounting to control valves

2 Mounting to rotary actuators to VDI / VDE 3845 4 Integral mounting to control valves by using an adapter panel

3 Operation Pos: 7.2 /==== Wechsel ein- auf zweispaltig ==== @ 0mod_1130421847171_3101.doc @ 3828

Wechsel ein-auf zweispaltig Pos: 7.3 /Überschriften/1.1/2-spaltig/Allgemeines @ 10mod_1176213970765_3101.doc @ 77124 A

3.1 General Pos: 7.4 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Betrieb/Allgemeines @ 10mod_1176214294328_3101.doc @ 77292

Microprocessor-based position control in the TZIDC provides for

optimal results. The positioner features high-precision control
