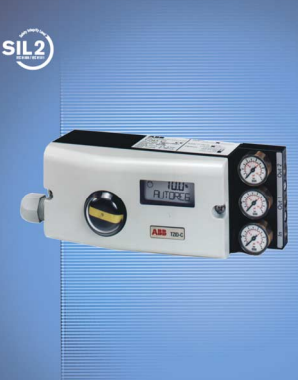

ABBElectro-Pneumatic Positioner TZIDC

Low operating cost

Compact design

Well-proven technology

Robust and environmentally ruggedized

Wide operating temperature range

 -40 ... 85 °C (-40 ... 185 °F)

Easy to commission, “single pushbutton”

operating philosophy

Mechanical position indicator

ATEX, FM, CSA, GOST and IECEx approvals

For SIL2 safety loops

1 Description Pos: 3.2 /==== Wechsel ein- auf zweispaltig ==== @ 0mod_1130421847171_3101.doc @ 3828

Wechsel ein-auf zweispaltig Pos: 3.3 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/Kurzbeschreibung @ 10mod_1173180169769_3101.doc @ 71118

The TZIDC is an electronically configurable positioner with

communication capabilities designed for mounting to pneumatic

linear or rotary actuators. It features a small and compact design, a

modular construction, and an excellent cost-performance ratio.

Fully automatic determination of the control parameters and

adaptation to the final control element yield considerable time savings

and an optimal control behavior.

Pos: 3.4 /Überschriften/1.1/2-spaltig/Pneumatik @ 10mod_1176211138453_3101.doc @ 76683

1.1 Pneumatics Pos: 3.5 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/Pneumatik @ 10mod_1173180645393_3101.doc @ 71139 a

An I/P module with subsequent pneumatic amplifier is used to control

the pneumatic actuator. The well-proven I/P module proportionally

converts the permanent electrical positioning signal from the CPU

into a pneumatic signal used to adjust a 3/3-way valve.

The air flow for pressurizing or depressurizing the actuator is

continuously adjusted. As a result, excellent control is achieved.

When reaching the set point, the 3/3-way valve is closed in center

position to minimize the air consumption.

Four different pneumatics versions are available: for single-acting or

double-acting actuators, each with “fail-safe” or “fail-freeze” function.

Pos: 3.6 /Überschriften/1.1.1/2-spaltig/Sicherheitsfunktion "entlüftend" @ 10mod_1176211744343_3101.doc @ 76809

1.1.1 “Fail-safe” function

Pos: 3.7 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/Sicherheitsfunktion "entlüftend" @ 10mod_1176211673796_3101.doc @ 76788

If the electrical power supply fails, the positioner output 1 is

depressurized, and the pneumatic actuator’s return spring moves the

valve to the defined safe position. In case of a double-acting actuator

the second output 2 is additionally pressurized.

Pos: 3.8 /======= Spaltenumbruch ======== @ 0mod_1132937966324_3101.doc @ 3831

Pos: 3.9 /Überschriften/1.1.1/2-spaltig/Sicherheitsfunktion "blockierend" @ 10mod_1176211798765_3101.doc @ 76830

1.1.2 “Fail-freeze” function

Pos: 3.10 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/Sicherheitsfunktion "blockierend" @ 10mod_1176211845484_3101.doc @ 76851

If the electrical power supply should fail, the positioner output 1 (and

2, if applicable) is closed and the pneumatic actuator stops

(“freezes”) the valve in the current position. If compressed air supply

should fail, the positioner depressurizes the actuator.

Pos: 3.11 /Überschriften/1.1/2-spaltig/Bedienung @ 10mod_1176211172234_3101.doc @ 76704

1.2 Operation Pos: 3.12 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/Allgemein/Kurzbeschreibung/Bedienung (Kommunikationsmöglichkeit) @ 10mod_1173184631054_3101.doc @ 71160

The positioner has a built-in operating panel providing a 2-line LCD

and 4 pushbuttons for optimal local configuration, commissioning and

operational monitoring.

Alternatively, the appropriate configuration program and the available

communication option can be used.

Pos: 3.13 /Überschriften/1.1/2-spaltig/Kommunikation @ 10mod_1176211201546_3101.doc @ 76725

1.3 Communication Pos: 3.14 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/TZIDC / TZIDC-200/Kurzbeschreibung/Kommunikation @ 10mod_1176212225390_3101.doc @ 76893

The standard TZIDC model has a local communication interface (LKS

connector). Additionally, a “HART communication” option for

communication via the 20 mA signal is available. Both

communications are based on the HART Protocol.

Pos: 3.15 /Überschriften/1.1/2-spaltig/Ein-/Ausgänge @ 10mod_1176211233015_3101.doc @ 76746

1.4 Inputs and outputs Pos: 3.16 /Technische Daten / Datenblatt/Aktorik/Stellungsregler/TZIDC / TZIDC-200/Kurzbeschreibung/Ein-/Ausgänge @ 10mod_1176212290390_3101.doc @ 76914

In addition to its input for the analog position set point the TZIDC

positioner is equipped with a digital input which can be used to

activate various protective functions in the device via the process

control system. A digital output allows you to output collective alarms

or fault messages.
