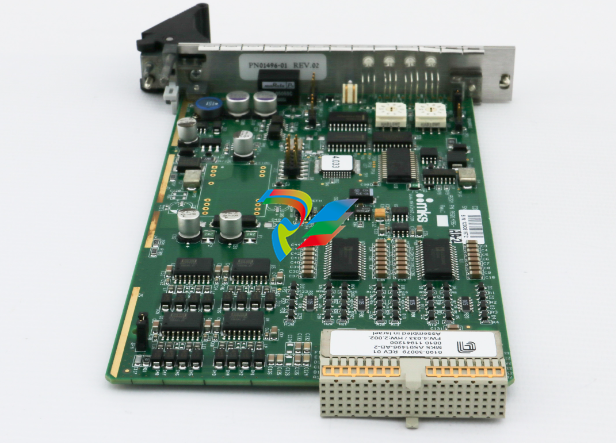

AMAT 0190-30079 Applied Materials CDN496R DeviceNet I/O PCB

AMAT 0190-30079 | Applied Materials CDN496R DeviceNet I/O PCB

The Applied Materials (AMAT) 0190-30079 is a high-performance communication and control board manufactured by MKS Instruments (Part Number AS01496-AB-2).

Designated as the CDN496R, this module is a specialized DeviceNet I/O PCB Slot Card.

It is primarily used within the control racks of AMAT Producer and Centura platforms to provide a robust digital communication interface between the system's host controller and distributed hardware components.

Technical Parameter Table

Product Advantages and Features

Advanced Signal Routing: The CDN496R architecture is optimized for high-density signal distribution, allowing multiple I/O channels to be managed through a single DeviceNet node.

RF Detection Integration: Some revisions of this board (0100-20213) are specifically equipped to handle 13.56MHz RF Match Detection, helping to ensure plasma stability by monitoring reflected power.

MKS Quality Engineering: Built by MKS Instruments, a leader in semiconductor vacuum and control technology, ensuring long-term stability in 24/7 fab operations.

Deterministic Network Performance: Provides the low-latency response times required for safety interlocks and rapid process transitions in CVD and Etch tools.

Related Models & Same Series

The 0190-30079 belongs to the CDN-family of interface cards utilized in AMAT equipment:

0190-04745: CDN 494 Analog I/O Board

0190-24115: CDN 391R DeviceNet Module

0190-08680: 2-Channel DeviceNet Scanner

0190-14903: 4-Port DeviceNet Interface

0100-20213: Raw PCB Assembly associated with this module

Application Cases

The CDN496R (0190-30079) is a staple in high-end semiconductor tool mainframes:

AMAT Producer Platforms: Managing chamber-level digital feedback for CVD and PECVD processes.

RF Matching Systems: Serving as the interface between the RF generator, the match box, and the tool's central logic.

Vacuum & Gas Management: Distributing control signals to pneumatic valves and monitoring the status of vacuum interlocks.

Installation and Maintenance

Installation Guidelines:

Slot Alignment: Carefully insert the card into the designated slot of the tool’s electronics rack. Ensure the edge connectors are free of debris to prevent "Bus-Off" communication errors.

MAC ID Addressing: DeviceNet MAC IDs are often set via hardware rotary switches or software. Verify the ID matches the equipment configuration before powering up.

ESD Safety: This card contains sensitive logic circuits and RF detection components. Use a grounded wrist strap and anti-static matting during all handling procedures.

Maintenance Tips:

LED Diagnostics: Monitor the onboard status indicators. A flashing green light usually indicates a network is established but not active, while a solid red light indicates a critical hardware or communication fault.

Heat Dissipation: Ensure the rack’s forced-air cooling is functional. Overheating can cause the onboard RF detection circuitry to drift, leading to inaccurate process readings.

Unique Product Description

The AMAT 0190-30079 (MKS CDN496R) is an essential communication and detection board for Applied Materials semiconductor processing tools.

As a core DeviceNet I/O PCB, it provides the high-fidelity signal interfacing required for complex wafer manufacturing.

Specifically designed for the AMAT Producer series, this module excels in managing the intricate balance of digital I/O and RF Match Detection, ensuring that your plasma-enhanced processes remain stable and repeatable.

For procurement managers and field service engineers, the 0190-30079 is a critical spare part for maintaining system uptime.

Its robust AS01496-AB-2 architecture by MKS Instruments offers the reliability and precision needed to avoid costly chamber deviations. By utilizing genuine Applied Materials spares,

you ensure seamless integration with the tool’s host software and maintain the rigorous safety and performance standards of a modern 300mm wafer fabrication facility.
