AMAT 0190-35653 Applied Materials G6 FPD Digital I/O Interface

AMAT 0190-35653 | Applied Materials G6 FPD Digital I/O Interface

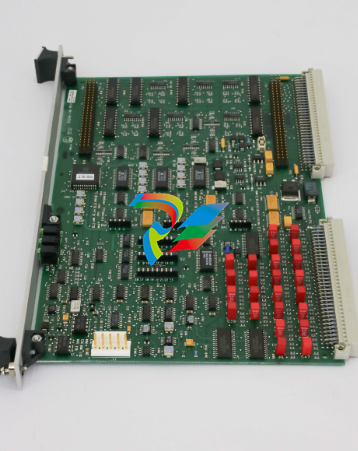

The Applied Materials (AMAT) 0190-35653 is a high-density digital interface module engineered specifically for the Flat Panel Display (FPD) and AKT series of semiconductor manufacturing equipment.

This module belongs to the Generation 6 (G6) through Generation 10 (G10) hardware ecosystem, where it manages high-speed discrete signals between the system's central logic and large-scale substrate processing hardware.

It is a critical link for the synchronized operation of vacuum robotics, glass transport systems, and chamber safety interlocks.

Technical Parameter Table

Product Advantages and Features

Substrate Safety Logic: Optimized for handling the complex sensor arrays required to move large-area glass substrates without breakage or misalignment.

Superior Noise Suppression: Features advanced opto-isolation to protect control logic from the massive electromagnetic interference (EMI) generated by FPD sputtering and PECVD power supplies.

Low Latency Execution: Provides the near-instantaneous signal switching necessary for high-speed "E-Stop" chains and robotic "Home" position detection.

Industrial Durability: Constructed with high-grade components designed for 24/7 continuous operation in high-heat environments.

Related Models & Same Series

The 0190-35xxx and 0190-16xxx series represent the electronic backbone of the AMAT FPD division:

0190-16926: Thermal Control Interface Module

0190-35654: Complementary Analog Input Board

0190-09553: Motor Control Interface

0190-20120: High-Density Digital I/O Module

0190-01898: DeviceNet Gateway Module

Application Cases

The 0190-35653 is a staple in large-format display manufacturing tools:

AKT PECVD Systems: Managing the vacuum chamber door (Slit Valve) status and pneumatic actuator positions.

Glass Transport Robotics: Providing real-time feedback for "Glass Present" sensors on the robotic end-effectors.

Sputtering/PVD Tools: Coordinating the safety interlock loops for high-voltage target power supplies and gas delivery systems.

Installation and Maintenance

Installation Guidelines:

Chassis Alignment: Use the guide rails to ensure the multi-pin backplane connector is perfectly aligned before applying pressure. Bent pins on the backplane can lead to system-wide communication failures.

Locking Mechanism: Secure the front-panel captive screws. These are not just for physical retention but also serve as a vital ground path for the board's EMI shielding.

Static Protocol: Handle only in an ESD-protected area. These boards are highly susceptible to latent damage from static discharge.

Maintenance Tips:

Diagnostic Check: Utilize the onboard LED status array to verify that 24V logic power is present and that the "Run" signal is active.

Periodic Cleaning: Inspect the front-panel connectors for dust or chemical residue common in fab environments. Use only electronics-grade cleaners.

Firmware Sync: If replacing a board, verify that the hardware revision matches the software version of the tool's Operating System (OS).

Unique Product Description

The AMAT 0190-35653 is a high-performance Digital I/O Interface module designed specifically for Applied Materials FPD (Flat Panel Display) equipment.

As an essential component for AKT-series G6 and G8 platforms, this module ensures that your substrate processing is both precise and safe.

In the world of large-scale display manufacturing, where glass substrates are both massive and fragile, the 0190-35653 provides the deterministic control needed to maximize yield and eliminate handling errors.

For global procurement managers and fab maintenance engineers, the 0190-35653 is a critical spare part for maintaining system uptime. Its robust design is engineered to withstand the rigorous duty cycles of a 24/7 production facility.

By utilizing genuine Applied Materials 0190-35653 hardware, you ensure full compatibility with your tool's existing control architecture, protecting your investment and ensuring the longevity of your PECVD or PVD production lines.

Keywords: AMAT 0190-35653. Applied Materials FPD Board, AKT Control Module, 0190-35653 Digital I/O, Semiconductor Spare Parts, Display Manufacturing Hardware, G6 G8 G10 Tooling.
