General

The programming and test software 907 PC 33 serves to create programs for the

 ABB Procontic T200, ABB Procontic CS31 and Advant Controller 31 programmable

 logic controllers (PLCs). An installation program that functions largely automatically i

nstalls the software package on the PC.

This specification is valid for 907 PC 331/332. Following table gives

 an overview of the different PLC systems and the pertinent software packages:

PLC system programmable with:

ABB Procontic T200 907 PC 332

ABB Procontic CS31 907 PC 331

Advant Controller 31 907 PC 331

The programming and test software 907 PC 33 is executable on

commercially available, IBM–compatible personal computers with the following technical features:

● at least 4 Mbyte RAM for optimum performance

● Hard disk drive

● Diskette drive, 3 1/2”, 1.44 MB

● EIA RS–232 serial interface for the PLC system

● Parallel or second serial interface for printer

● MS–DOS operating system V5.0 or higher

● Optionally a mouse for fast cursor control

The programming and test software 907 PC 33 permits simple and economical programming of PLC programs in the following notations:

● Function block diagram (FBD)

● Ladder diagram (LD)

● Instruction list (IL)

Both symbolic and absolute program input is possible. The PLC program is

supplemented by symbolic designators, long text and comment. Auxiliary

 and error messages that can be called at all times, and also a syntax check,

facilitate program input. Program creation as an FBD or LD takes place in a joint

 editor. Therefore, elements from the FBD and LD can be mixed and can also be li

nked to each other.

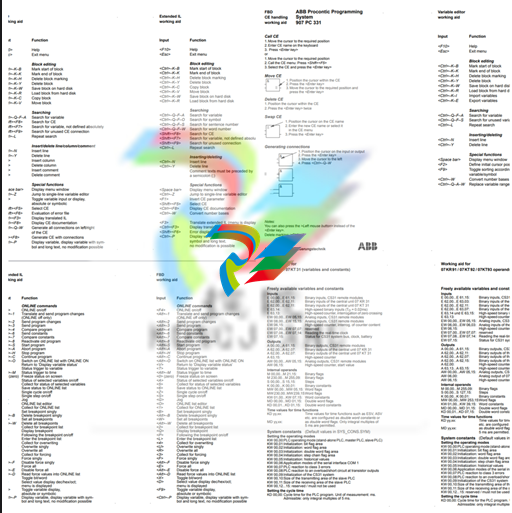

Features

The scope of features and functions listed depends on individual PLCs’ capabilities

Menu prompting

● Modern, clearly–arranged menu interface employing pop–up menus

● Color display ● Fast selection of menu options by mouse or on the keyboard

● Calls of external programs at the DOS level directly from the menu (DOS shell)

Path information

● Input of a file name with the affiliated DOS path

● Display of the project overview in a file directory

Password protection

● Several access privilege levels

Modularization

● Handling of large projects

● Arrangement of projects in logical structures

● Subdivision into program and variable modules

FBD/LD editor

● Uniform editor for programming with graphic symbols as a function block diagram and as a ladder diagram

● Connection of ladder diagram networks with elements of the function block diagram

Extended IL editor

● Notation with symbols and long text in various forms

● Cursor control by mouse

● Selection of connection elements via a selection menu and using a mouse

Variable editor

● Complete list of all entered variables

● Selectable sorting according to absolute or symbolic variables

● Adoption and transfer of variable lists from and to any chosen word processing systems

● Provision and adoption of variable lists for specific CAD/CAE systems

Text editor

● Input of any ASCII files, up to 255 characters per line

Comments

● Verbal description of networks or program segments
