I/ASeries® Hardware

Fieldbus Communications Module, FCM10E

The FCM10E Fieldbus Communications Module is a

communications interface which allows the DIN rail

mounted Fieldbus Modules (FBMs) to communicate

with I/A Series control stations via the high speed,

optionally redundant 10 Mbps Ethernet trunk Fieldbus

(see Figure1).  The FCM10E converts 10 Mbps

Ethernet signals used by the control station to 2Mbps

signals used by the FBMs, and vice versa.  They also

provide galvanic isolation between the 10 Mbps

Ethernet trunk Fieldbus and the 2Mbps module

Fieldbus.

The FCM10E modules are used in pairs for

redundancy.  An FCM10E (or pair of FCM10E

modules) can support up to 30 FBMs.

FCM10E modules have a compact design, with a

rugged extruded aluminum exterior for physical

protection of the circuits.  Up to 30 FCM10E pairs can

be connected to the Ethernet trunk Fieldbus.

Enclosures specially designed for mounting of DIN

rail mounted FBM equipment provide various levels of

environmental protection for the Fieldbus

Communications Modules, up to harsh environments

per ISA Standard S71.04.

The FCM10E can be removed/replaced without

removing power or communications cabling.

Six light-emitting diodes (LEDs), incorporated into the

front of the FCM10E Fieldbus Communications

Modules, indicate the status of network activity

to/from the control station and the associated FBMs,

and the operational status of the FCM10E.

For redundant configurations, two FCM10E modules

are required for each FBM grouping. A non-redundant

configuration requires a single FCM10E for each

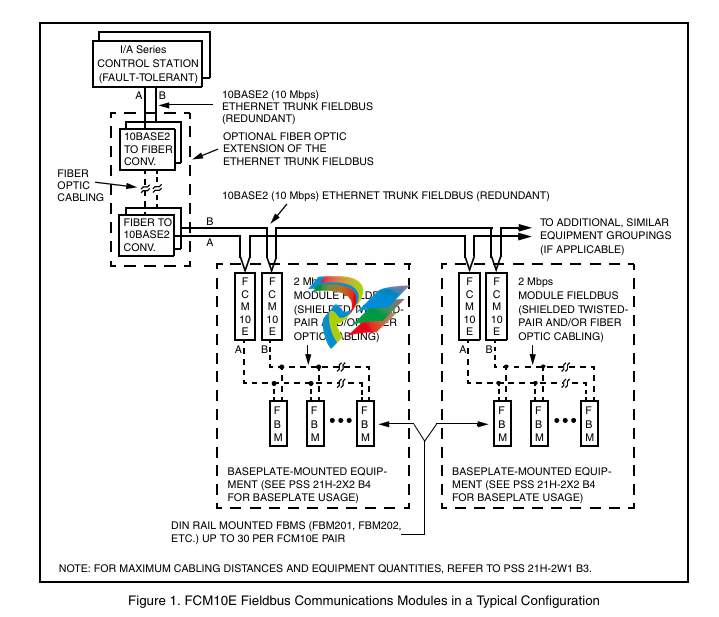

grouping. Figure1 shows how FCM10E modules are

used in a typical subsystem configuration.

BASEPLATE MODULE MOUNTING

The FCM10E mounts on a baseplate, which is either

DIN rail mounted or rack mounted and includes signal

connectors for Fieldbus, power, and I/O cable

connections. A baseplate can support up to eight

FBMs, or a combination of FBMs and FCMs.

FUNCTIONAL SPECIFICATIONS

Regulatory Compliance (Cont.)

INPUT VOLTAGE RANGE (REDUNDANT)

24 V dc +5%, -10%

CONSUMPTION

7 W (maximum) at 24 V dc

HEAT DISSIPATION

7 W (maximum) at 24 V dc

Vibration

0.75 g (5 to 200 Hz)

Calibration Requirements

Calibration of the module is not required.

Regulatory Compliance

ELECTROMAGNETIC COMPATIBILITY (EMC)

European EMC Directive 89/336/EEC

EN 50081-2 Emission standard

EN 50082-2 Immunity standard

IEC 61000-4-2 ESD Immunity

Contact 4 kV, air 8 kV

IEC 61000-4-3 Radiated Field Immunity

10 V/m at 80 to 1000 MHz

IEC 61000-4-4 Electrical Fast Transient/Burst

Immunity

2 kV

IEC 61000-4-5 Surge Immunity

2kV on ac and dc power lines; 1kV on I/O and

communications lines

IEC 61000-4-6 Immunity to Conducted

Disturbances

10 V

IEC 61000-4-8 Power Frequency Magnetic Field

Immunity

30 A/m

IEC 61000-4-11 Voltage Dips, Short Interruptions

and Voltage Variations Immunity

Operating

PRODUCT SAFETY

European Low Voltage Directive 73/23/EEC

PRODUCT CERTIFICATION

Underwriters Laboratories (UL)

UL/UL-C listed as suitable for use in UL/UL-C

listed Class I, Groups A-D; Division 2;

temperature code T4 enclosure based systems.

The modules are also UL and UL-C listed as

associated apparatus for supplying non

incendive communication circuits for Class I,

Groups A-D, Division 2 hazardous locations

when connected to specified I/A Series

processor modules as described in the I/A Series

DIN Rail Mounted FBM Subsystem User’s Guide

(B0400FA). Communications circuits also meet

the requirements for Class 2 as defined in Article

725 of the National Electrical Code (NFPA No.70)

and Section 16 of the Canadian Electrical Code

(CSA C22.1). Conditions of use are as specified

in the I/A Series DIN Rail Mounted FBM

Subsystem User’s Guide (B0400FA).

CENELEC

CENELEC (DEMKO) certified as EEx nA IIC T4

for use in CENELEC certified Zone 2 enclosure

based systems. The modules are CENELEC

certified as associated apparatus for supplying

non-incendive field circuits for Zone 2. Group IIC,

potentially explosive atmospheres when

connected to specified I/A Series processor

modules as described in the I/A Series DIN Rail

Mounted FBM Subsystem User’s Guide

(B0400FA).

EUROPEAN UNION COMPLIANCE

Meets all applicable European Union directives

including the Explosive Atmospheres (ATEX)

directive 94/9/EC, and bears the CE mark.

ENVIRONMENTAL SPECIFICATIONS(a)

Storage

TEMPERATURE-20 to +70°C (-4 to +158°F)

RELATIVE HUMIDITY

5 to 95% (noncondensing)

ALTITUDE-300 to +3.000 m (-1.000 to +10.000 ft)

TEMPERATURE-40 to +70°C (-40 to +158°F)

RELATIVE HUMIDITY

5 to 95% (noncondensing)

ALTITUDE-300 to +12.000 m (-1.000 to +40.000 ft)

Contamination

Class G3 (Harsh) as defined in ISA Standard,

S71.04. Pollution degree 2 as defined in IEC 664-1.

PHYSICAL SPECIFICATIONS

Dimensions

FCM10E mounts on a baseplate. The baseplate can

be mounted on a DIN rail (horizontally or vertically),

or horizontally on a 19-inch rack using a mounting

kit. Refer to PSS 21H-2X2 B4 for details.

Mass

284 g (10 oz) approximate

33 Commercial Street

Foxboro, MA  02035-2099

United States of America

www.foxboro.com

HEIGHT

102 mm (4 in)

114 mm (4.5 in) including mounting lugs

WIDTH

45 mm (1.75 in)

DEPTH

104 mm (4.11 in)

Indicators (mounted on front of module)

Red and green light-emitting diodes (LEDs) provide

indication of the FCM operational status. Amber

LEDs indicate data traffic and direction
