ABB Technology Days Fall 2013

S+ Control & I/O Update Presentation Outline

• Harmony Rack Update & Evolution

• SD Series Hardware

• IEB800 Infi-Net to Ethernet Bridge

• New Developments Coming Soon…

• S+ Engineering Update

• Latest Version of S+ Operations

  ---

  What has Changed? Life Cycle Commitment




• § Previous Support commitment Increased from 2025 to indefinitely




• Active investment




• New features and functions at all levels of the system




• Introduction of Symphony Plus Product Name




  ---

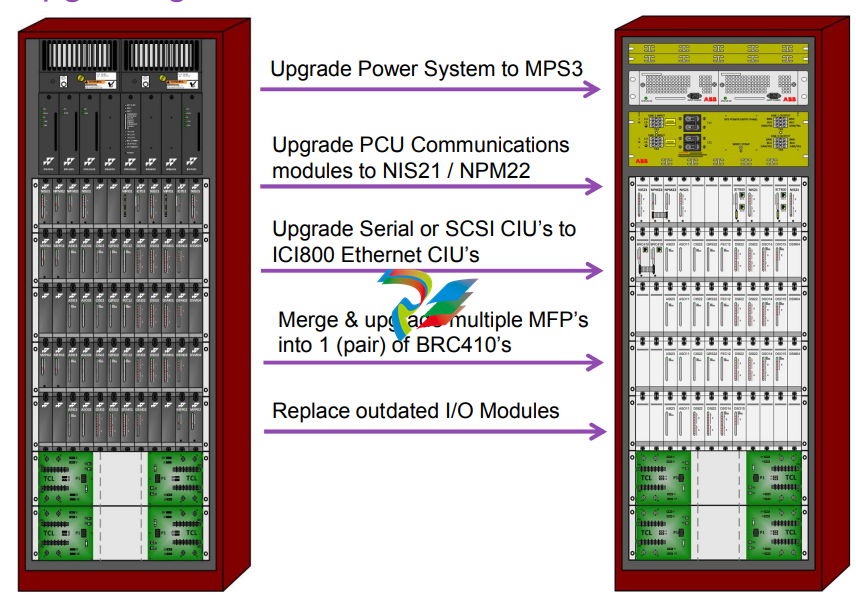

  S+ Control & I/O Update Upgrading to Latest Rack Hardware



• Power Supplies Harmony Power Supply - MPSIII



• § Multi-Voltage DC Power System § System and Field Power § 2N and N+1 Configuration § System Monitoring § “Slide-in” Design § Evolution for Network 90, MPS I (PMU), and MPS II Supplies

  ---

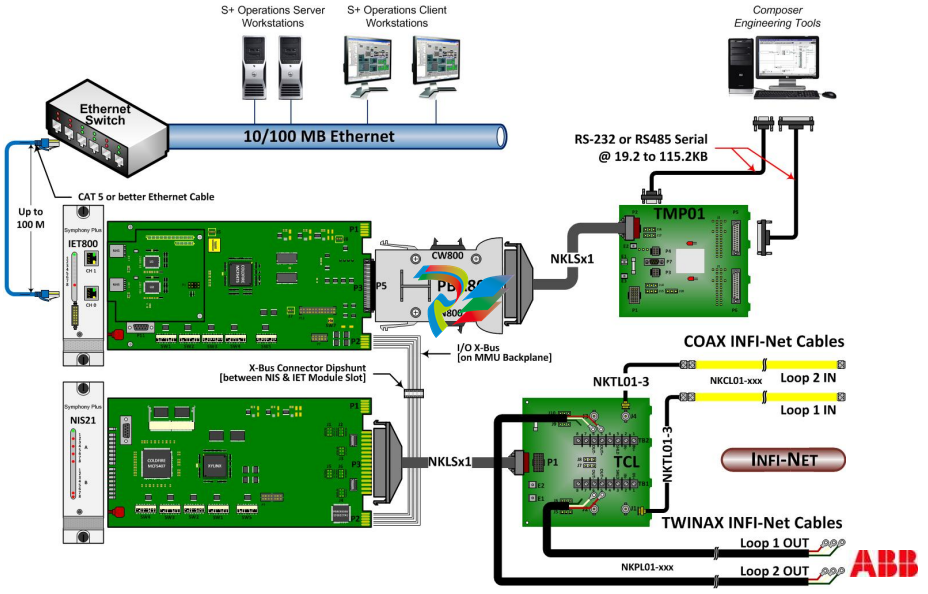

• S+ Control & I/O Update Upgrading PCU Communications

•

Symphony Plus Communications

§ Ethernet interface to INFI-Net used by: § Composer 5.1 and Higher § Harmony OPC § Harmony Connect (800xA Process Portal v. 5.1A) § S+ Operations § PPB, Conductor NT* § Security Modes § Basic (Twofish) [Default] § 128 –bit block cipher § Advanced (TLS1/SSL3) § 256-bit encryption § Supports up to 30,000 tags (Ethernet)

S+ Control & I/O Update Upgrading to ICI800 Ethernet CIUs

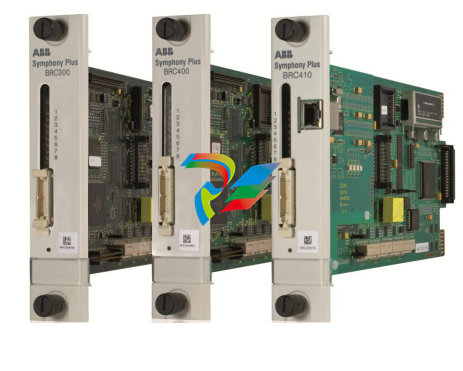

Symphony Plus Control & I/O BRC410

Performance increase depends on specific function blocks used, but in general performance of latest module (BRC410) compared with older modules: § ~ 10x vs. MFP01/02/11/12 § ~ 4x vs. BRC100/200 § Enhanced On-Line Configuration provided by BRC410 § BRC410 also provides ModBus TCP § BRC410 support 30,000 block addresses § Infi90 Modulebus support* § Downloadable firmware

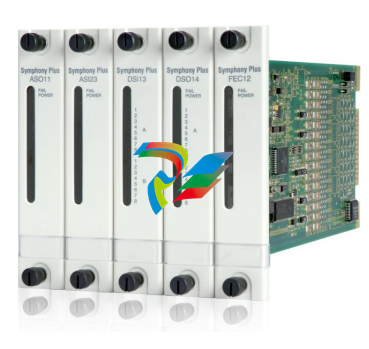

S+ Control & I/O Update Upgrading to S+ Rack Modules

q Harmony Rack Modules q Grey Front Plates q Module Nomenclatures: IMxxxx or INxxxx q Build to Order, longer lead q S+ Rack Modules q White Front Plates q Module Nomenclatures: SPxxxx q Original Price of Grey Modules q Std Factory Lead Time

Symphony Harmony Comprehensive I/O system

§ Modular to meet varying I/O requirements § Local and remote I/O options § Rack and DIN I/O options § I/O Types § Analog Input § Analog Output § Pulse Input § Digital Input § Digital Output § Turbine Control § SOE timestamp resolution of +/- 1 msec across the entire Harmony system

Harmony I/O options Expanding with S800 I/O

§ S800 I/O is configured using Composer and standard function codes § BRC simultaneously supports Harmony Rack & S800 I/O § Each IOR-800 supports up to 7 clusters § Each cluster modem supports up to 12 S800 I/O modules

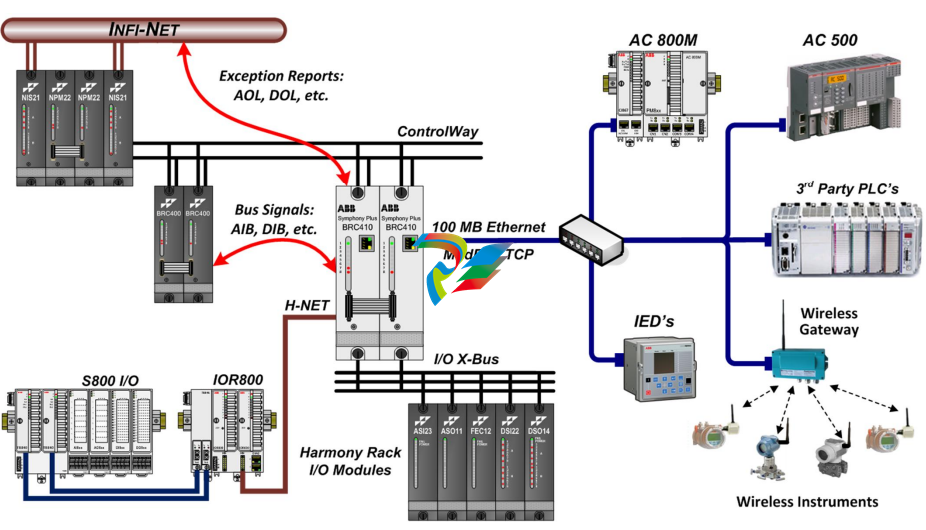

S+ Control & I/O Update BRC410 Bridge Controller and Gateway

H-Net to Enhanced HN800

Symphony Plus SD Controller Harmony Control & Communications on a DIN-Rail

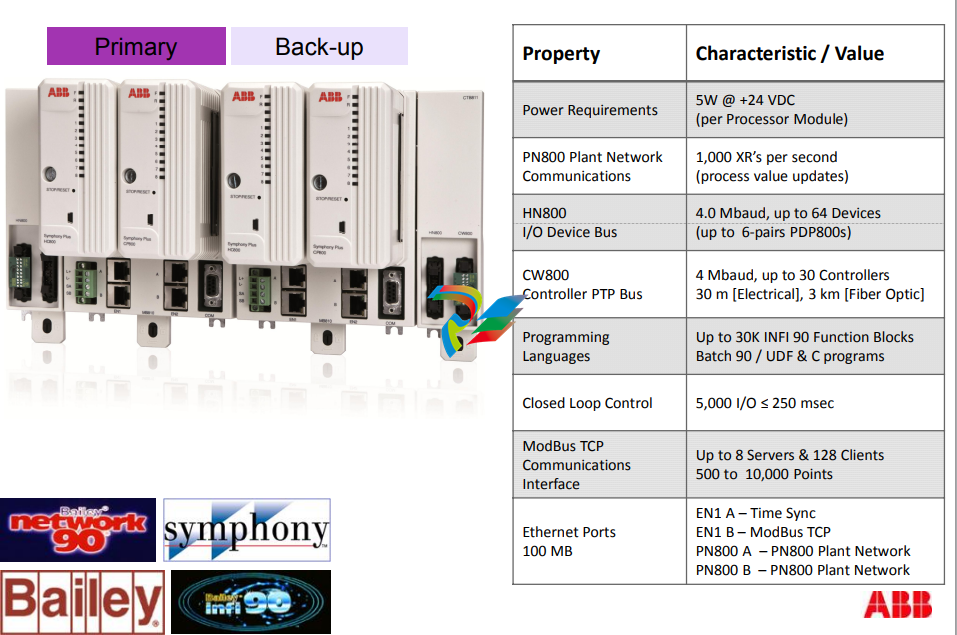

HPC800 Harmony Process Controller

PNI800 Plant Network Interface

§ DIN-Rail CIU for Symphony Plus § 1-PNI800 required for each HMI Server: § S+ Operations Server § Harmony RTDS of 800xA PPA § 1-PNI800 can be shared by up to 10 Composer Client Workstations § Composer Communications Server for PN800 Plant Network § PNI800 supports PN800 line redundancy § Connects to both Ethernet lines

SD Series Control & I/O Architectural Comparison

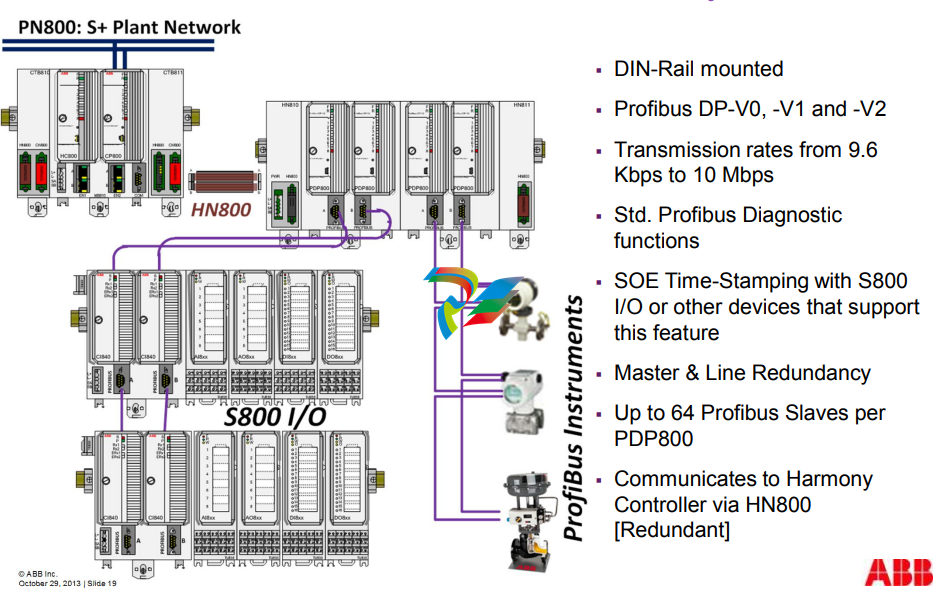

Symphony Plus PDP800: Profibus DP Master for Harmony

PDP800 Profibus Master Module

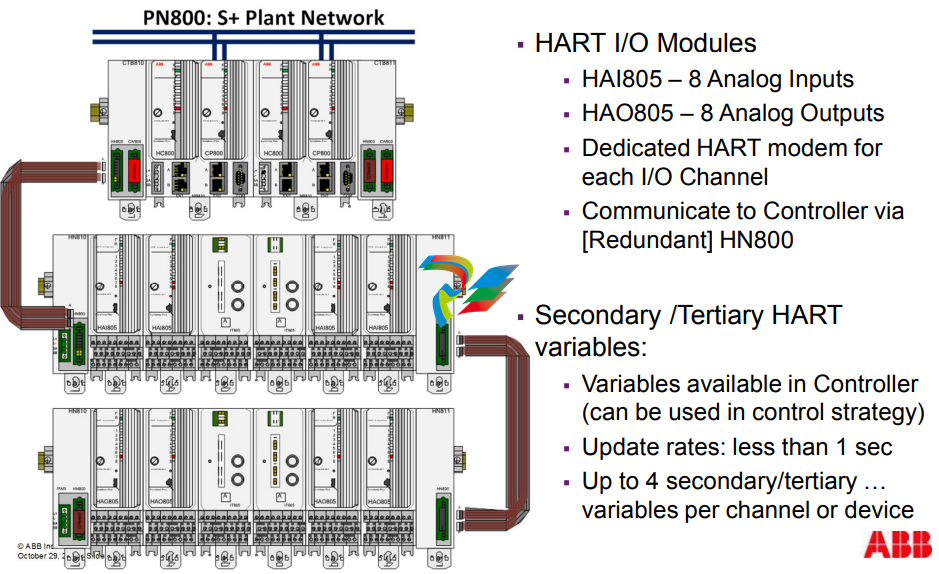

Symphony Plus HAI805 & HAO805: HART AI & AO Modules
