Preface

This guide contains the hardware installation instructions for the AT-8000S/16, AT-8000S/24, AT-8000S/24POE, AT-8000S/48 and AT-8000S/48POE Fast Ethernet Switches.

How This Guide is Organiz

How This Guide is Organiz

• Chapter 1 Product Description describes the features and components of the switches.

• Chapter 2 Installation describes the installation instructions for the switches.

• Chapter 3 Stacking describes the stacking instructions for the switches.

• Chapter 4 Initial Configuration describes the instructions for initially configuring the switches.

• Chapter 5 Troubleshooting provides information on how to resolve problems that might occur with the switches.

• Appendix A Technical Specifications contain the technical specifications for the switches.

• Appendix B Translated Safety Standards contain the safety standards for the device.

Document Conventions

This document uses the following conventions to highlight important information:

Note

Notes provide additional information.

Caution

Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data.

Warning

Warnings inform you that performing or omitting a specific action may result in bodily injury.

Contacting Allied Telesis

This section provides Allied Telesis contact information for technical support as well as sales or corporate information.

Online Support You can request technical support online by accessing the Allied Telesis Knowledge Base from the following web site: www.alliedtelesis.com/kb. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions

Email and TelephoneSupport For Technical Support via email or telephone, refer to the Allied Telesis web site: www.alliedtelesis.com. Select your country from the list displayed on the website. Then select the appropriate menu tab..

Returning ProductsProducts for return or repair must first be assigned a Return Materials Authorization (RMA) number. A product sent to Allied Telesis without a RMA number will be returned to the sender at the sender’s expense

To obtain an RMA number, contact the Allied Telesis Technical Support group at our web site: www.alliedtelesis.com/support/rma. Select your country from the list displayed on the website. Then select the appropriate menu tab..

For Sales or Corporate InformationYou can contact Allied Telesis for sales or corporate information at our web site: www.alliedtelesyn.com. Select your country from the list displayed on the website. Then select the appropriate menu tab..

WarrantyThe AT-8000S has a limited warranty of lifetime (two years PSU and fan). Go to www.alliedtelesis.com/warranty for the specific terms and conditions of the warranty and for warranty registration.

Chapter 1. Product Description

The new AT-8000S series combines the best of the previous L2 series; stackability and affordability. The new AT-8000S series is

 an entry level managed switch for the SMB, Small Office/Field Office offering managed desktop connectivity. The fiber uplink p

rovides connectivity between workgroups over a larger distances. In addition the AT-8000S series is also equipped with a copper

10/100/1000Base-T port for connectivity to gigabit aggregation switches.

The new AT-8000S series combines value with the necessary management features for networked applications. There are five device models which provide different hardware configurations and include the following:

• AT-8000S/16 device which supports 16 built-in 10/100Base-T ports, and a Combo port functionality that supports both copper and SFP interfaces.

• AT-8000S/24 device with stacking ports which supports 24 built-in 10/100Base-T ports, two Gigabit stackable and 2 Combo Ports, inclusive of a Combo port functionality that supports both copper and SFP interface.

• AT-8000S/24POE device with stacking port which supports 24 built-in 10/100Base-T ports, two Gigabit stackable and 2 Combo Ports, inclusive of a Combo port that supports both copper and SFP interface. The PoE function is supported on RJ-45 ports.

• AT-8000S/48 device with stacking ports which supports 48 built-in 10/100Base-T ports, two Gigabit stackable and 2 Combo Ports, inclusive of a Combo port functionality that supports both copper and SFP interface.

• AT-8000S/48POE device with stacking port which supports 48 built-in 10/100Base-T ports, two Gigabit stackable and 2 Combo Ports, inclusive of a Combo port that supports both copper and SFP interface. The PoE function is supported on RJ-45 ports. The AT-8000S/24, AT-8000S/24POE, AT-8000S/48 and AT-8000S/48POE can be joined together into a stack of up to six units. For more information, see Chapter 3 Stacking. Device configuration is performed through an Embedded Web Server (EWS) or through a Command Line Interface (CLI). The device management is performed through a DB-9 RS-232 interface.

Features

The AT-8000S/16, AT-8000S/24, AT-8000S/24POE, AT-8000S/48 and AT-8000S/48POE features include the following:

• Wirespeed switching traffic across all ports

• Auto MDI/MDIX enabled

• 802.1d, 1w, 1s priority tags supported • Broadcast storm control

• IEEE 802.1Q tagged VLANs supported • GARP/GVRP supported

• Port/MAC based VLANs supported • 802.3ad link aggregation Static and Dynamic (LACP) supported

• IEEE 802.1P based QoS supported

• Ingress rate limiting

• Egress rate shaping (WRR) • 802.1x port/MAC based authentication support

• RFC 2618 RADIUS Authentication

• SSL/ SSLv3 • RFC 1492 TACACS+

• Management ACL support

• Industry standard CLI

• Browser based management interface (HTTP)

• Telnet access supported

• SNMP v1, v2 and v3

• RFC1757 RMON support

• Port Mirroring support

• PVE

• Port Security

• DHCP support

• Static IP Multicast support

• IGMP Snooping

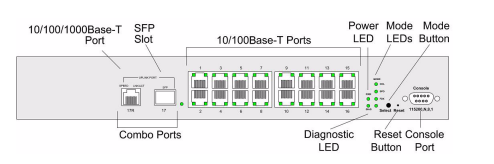

AT-8000S/16 Front Panel

The AT-8000S/16 front panel is configured as follows:

• 16 10/100Mbps Ports — RJ-45 ports designated as 10/100Base-T. The RJ-45 ports are designated as ports Ports 1 - 16.

• 1 10/100/1000Base-T Copper Port — There is one copper 10/100/100Base-T port designated on the switch as port 17R. This port is paired with the SFP slot designated on the switch as port 17. Together these two ports form the Combo ports shown in Figure 1.

• 1 SFP Port — There is one SFP slot supports either a 100Base-FX or a 1000Base-X (fiber) connection and is designated on the switch as port 17. This SFP slot is paired with the 10/100/1000Base-T copper port which is designated on the switch as port 17R. Together these two ports form the Combo ports shown in Figure 1.

• DB-9 Console port — An asynchronous serial console port supporting the RS-232 electrical specification. The port is used to connect the device to the console managing the device.

• Reset Button — Button to reset the device.

• Mode Button — Selects the port LED indications.

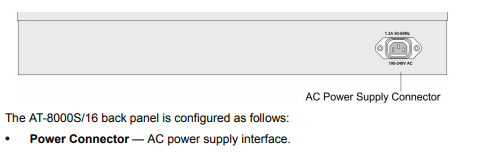

AT-8000S/16 Back Panel

The following figure illustrates the AT-8000S/16 back panel.

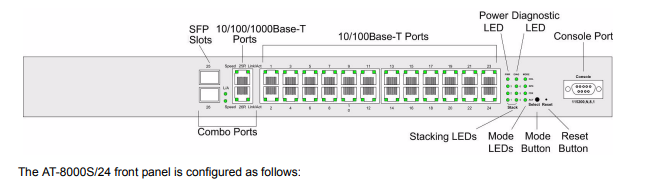

AT-8000S/24 Front Panel The following figure illustrates the AT-8000S/24 front panel.

• 24 10/100Mbps Ports — RJ-45 ports designated as 10/100Base-T. The RJ-45 ports are designated as ports Ports 1 - 24.

• 2 10/100/1000Base-T Copper Ports — There are two copper 10/100/100Base-T ports designated on the switch as ports 25R and 26R. These ports are paired with the two SFP slots designated on the switch as ports 25 and 26. Together these four ports form the Combo ports shown in Figure 3..

• 2 SFP Ports— There are two SFP slots which support either a 100Base-FX or a 1000Base-X (fiber) connection and are designated on the switch as ports 25 and 26. This SFP slot is paired with the two 10/100/ 1000Base-T copper ports which is designated on the switch as port 25R and 26R. Together these four ports form the Combo ports shown in Figure 3.

• DB-9 Console port — An asynchronous serial console port supporting the RS-232 electrical specification. The port is used to connect the device to the console managing the device.

• Reset Button — Button to reset the device.

• Mode Button — Selects the port LED indications.

Chapter 2. Installation

This section contains information for installing the device, and includes the following sections:

• Preparing for Installation

• Installing the Device

• Connecting the Device

• Rack Installation

Preparing for Installation

Caution Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. E36

Warning Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuits (e.g., use of power strips). E37

Warning To reduce the risk of electric shock, the PoE ports on this product must not connect to cabling that is routed outside the building where this device is located.  E40
