ALSTOM ADVANCED MICRO CONTROLLER 2

From:ALSTOM | Author:LIAO | Time :2025-08-01 | 7 Browse: | Share:

PURPOSE

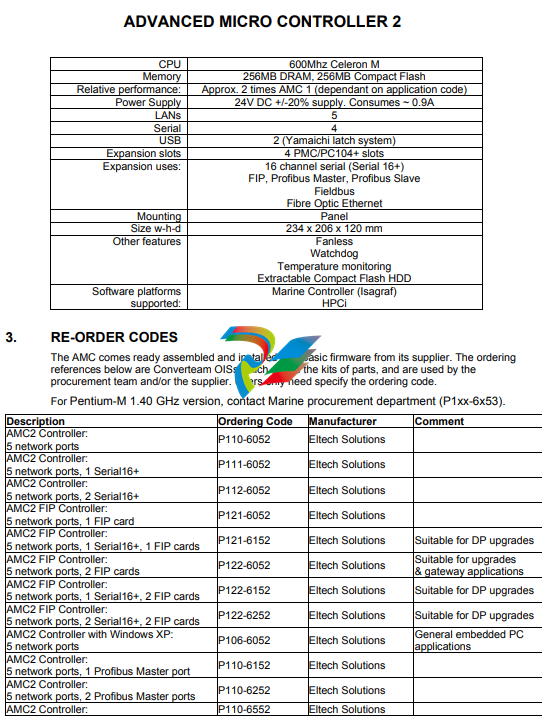

The purpose of this document is to describe the features of the Advanced Micro Controller 2, providing basic information in a datasheet form.

DESCRIPTION

The main controller box used for the AMC-PLC, AMC-AU and AMC-DP is a Converteam design supplied by Eltech, using the Arbor EmE7x-i701 controller board.

• Small rugged flange mounted box, for mounting on a vertical panel

• 70C temperature rating without fan • Type tested.

• Shock test to 15g (IEC1131)

• Low cost, based on COTS Pentium M class embedded CPU.

• Higher Performance Pentium-M 1.40 GHz is also available to special order

• LED indication of Power, Healthy, Running

• Identity Dongle port for defining controller ID

• Integrated Ethernet ports (5 off), and 4 off serial links (RS232) - 3 available to applications.

• Integrated high density serial interfaces (for Marine DP)

• Used in the Marine Architecture (DP and Automation controllers, fieldstation PLCs & redundancy boxes), PEC drive Controllers & general purpose PLC applications

SOFTWARE LICENCES

VxWorks runtime licences are needed for the AMC Controllers. Contact Marine Procurement for advice on the necessary licences.

5. MOUNTING
