Bently3500/32 4-Channel Relay Module

Description

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform needed voting logic. Each relay utilized on the 4-Channel Relay Module includes "Alarm Drive Logic". The Alarm Drive Logic is programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers) from any monitor channel or any combination of monitor channels in the rack. This Alarm Drive Logic is programmed using the 3500 Rack Configuration Software to meet the specific needs of the application. Note: Triple Modular Redundant (TMR) applications require the use of the 3500/34 TMR Relay Module. Consult Bently Nevada Specification and Ordering Information part number 141534-01 for details.

Specifications

Inputs Power Consumption: 6 Watts typical

Outputs OK LED:

Illuminated when module is functioning properly.

TX/RX LED

Transmit and Receive. Flashes to indicate proper communications between this module and other modules within the rack

CH ALARM LED:

Illuminated to indicate that the Relay Channel is in an alarm state.

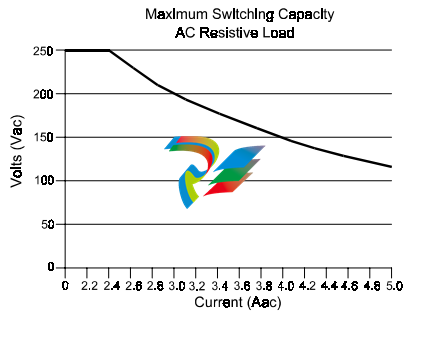

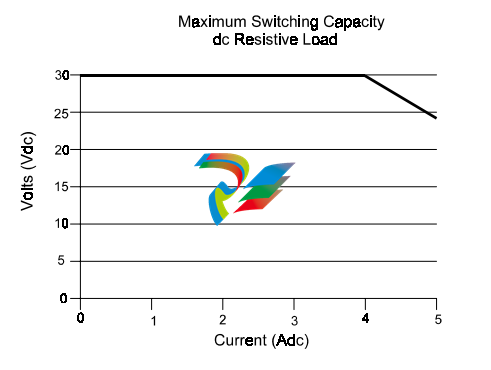

Relays Type:

Two single-pole, double-throw (SPDT) relays connected in a double-pole, dou

Environmental Sealing

Epoxy-sealed.

Arc Suppressor

250 Vrms, installed as standard.

Contact Life

100,000 cycles @ 5 A, 24 Vdc or 120 Vac.

Operation

Each channel is switch selectable for Normally De-energized or Normally Energized.

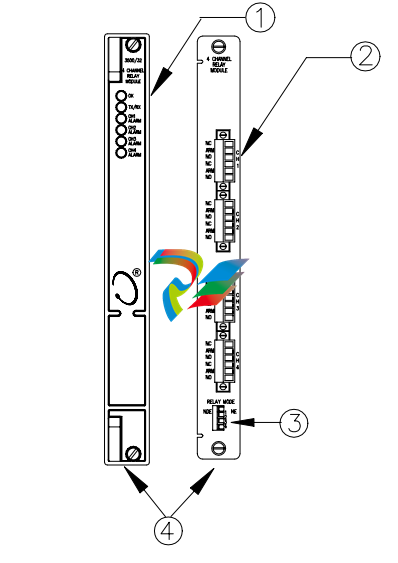

Figures and Tables

1) LEDs indicate the status of the relay channels.

2) Terminals for connecting relay contacts to external devices.

3) Switches that control how the relay contacts work.

4) 4 Channel Relay and I/O Modules
