EMERSONAutomation of NuGEN Ovation RNA-Seq System V2 on the Agilent NGS Bravo

Authors

Lisa Knapp

Agilent Technologies, Inc.

1362 Kirklees Dr

Carmel, IN 46032

Lin Z Pham

NuGEN Technologies, Inc.

201 Industrial Road, Suite 310

San Carlos, CA 94070

Introduction

The Ovation RNA-Seq System V2 from NuGEN Technologies provides a fast and

simple method for preparing amplified cDNA from total RNA for RNA-Seq applications,

with enhanced transcript coverage and uniform distribution of sequencing reads.

Amplification is initiated at the 3’ end as well as randomly throughout the whole

transcriptome in the sample. This feature makes the Ovation RNA-Seq System V2 ideal

for amplification prior to Next Generation Sequencing, as it allows amplification of both

mRNA and non-polyadenylated transcripts.

The Ovation RNA-Seq System V2 is enabled by Ribo-SPIA technology, a rapid, simple,

and sensitive RNA amplification process developed by NuGEN. Using Ribo-SPIA

technology and starting with as little as 500 pg total RNA, µg quantities of cDNA can be

prepared in approximately 4.5 hours.

The Ovation RNA-Seq System V2 (NuGEN part number 7102) provides optimized reagent

mixes and a protocol to process eight or 32 total RNA samples, and is also available as

an automation solution for processing 96 samples.

Automated protocols are now available

for the Ovation RNA-Seq V2 workflow on

Agilent NGS Bravo (part number G5541A)

(Figure 1).

Experimental Setup

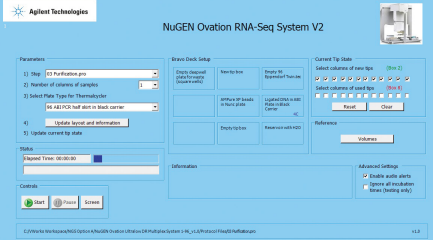

The NuGEN Ovation RNA-Seq System

V2 form-based protocols provide an

interactive, visual layout for the end

user. The underlying VWorks protocols

have been designed to allow laboratory

personnel to use the same protocol

to run one to 12 columns of samples.

Preparation of double-stranded cDNA

from total RNA for 96 samples can be

accomplished in less than 5 hours. Each

protocol has a unique deck layout, which

is shown in Figure 2. This is also used to

start the protocol and select options such

as the number of columns of samples to

process.

The labware used in the protocol was

selected for optimal performance while

being cognizant of minimizing dead

volumes when reagent conservation

is critical and ease of setup for those

reagents where cost is negligible. The

Current Tip State selection allows partial

boxes of tips to be used to minimize tip

waste.

Links are provided to a spreadsheet,

which calculates volumes for all master

mixes (Figure 3) and has space provided

to enter lot number information or

any other information which may be

required for documentation within the

lab.

Results and Discussion

Two nanograms of Universal Human

Reference total RNA (MAQC A - part

number 740000) and Brain total RNA

(MAQC B) were used to generate cDNA

using the Ovation RNA-Seq System V2

(part number 7102) on Agilent NGS Bravo.

One hundred nanograms of the resulting

cDNA was used to produce sequencing

libraries using the NuGEN Ovation

Ultralow Library System on the Agilent

NGS Bravo.

Table 1 shows the sequencing alignment

metrics with the expected level of

uniquely mapped reads, low levels of

rRNA reads, and good detection of

RNA-Seq transcripts, as compared to the

control data from manual preps.

Conclusion

Automated protocols of Ovation

RNA-Seq System V2 generated similar

technical performance as compared to

the manual process. With automation,

up to 96 samples can be processed

simultaneously. This is a marked

improvement in throughput over the

manual method without comprising

the integrity of the experiment. The

Ovation RNA-Seq System V2 is available

from NuGEN in a 96 reaction size

(part number 7102-A01).
