EMERSONDeltaV SISTM Logic Solver

 World’s first smart SIS Logic Solver

 Integrated, yet separate from the control

system

 Easy compliance with IEC 61511

 Scales to fit any size application

 SIL 3-rated

 Online addition of Logic Solvers

Introduction

The DeltaV SIS system, part of Emerson’s smart SIS,

ushers in the next generation of Safety Instrumented

Systems (SIS). This smart SIS approach uses the power

of predictive field intelligence to increase the availability of

the entire safety instrumented function.

Benefits

The World’s first smart SIS. Research shows that

over 85% of all faults in SIS applications occur in field

instruments and final control elements. The DeltaV SIS

system has the first smart Logic Solver. It communicates

with intelligent field devices using the HART protocol to

diagnose faults before they cause spurious trips. This

approach increases process availability and reduces

lifecycle costs.

Integrated yet separate. Safety standards insist on

separation of the control and safety systems in order to

remove any possibility of a common failure affecting both

layers of protection. End users require an integrated

configuration, maintenance, and operations environment.

The DeltaV SIS system has a unique solution to this

problem; implementing safety functions with dedicated

hardware, software, and networks while being seamlessly

integrated at the workstations.

Easy Compliance with IEC 61511. IEC 61511

demands rigorous user management and the DeltaV SIS

platform provides it. IEC 61511 requires that any changes

made from an HMI (e.g. to a trip limit) be extensively

vetted to ensure that the right data is written to the right

Logic Solver. The DeltaV SIS system automatically

provides this data verification.

Scales to fit any size application. Whether you have

an isolated wellhead or a large ESD/fire and gas

application, the DeltaV SIS system scales to provide you

with the safety coverage you need for your SIL 1, 2 and 3

safety functions. Each Logic Solver has dual CPUs and

sixteen channels of I/O built into it. This means that no

additional processors will ever be required to expand the

system, since each Logic Solver contains its own CPUs.

Scan rate and memory usage are constant and

independent of system size.

SIL 3-rated. DeltaV SLS 1508 Logic Solvers are installed

in redundant pairs for increased process availability of

your SIS loops.

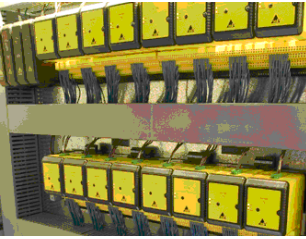

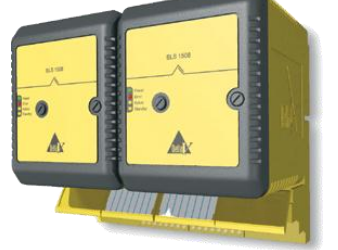

A redundant SLS 1508 Logic Solver

Redundant architecture includes:

 dedicated redundancy link

 separate power supply to each Logic Solver

 I/O published locally every scan on redundant peerto-peer link

 same input data for each Logic Solver

Online addition of Logic Solvers. The system

checks for new hardware every scan, so equipment can

be added to an on-line system in real time. Online addition

of new logic solvers means your process does not get

interrupted. As new equipment is added, the DeltaV

Explorer software recognizes it and makes it ready to be

configured.

Product Description

This section provides general information on DeltaV SIS

hardware. Refer to the Installing Your DeltaV Digital

Automation System manual for more information on

DeltaV system equipment.

DeltaV SIS Equipment

A DeltaV automation system consists of carriers, one or

more I/O subsystems, controllers, power supplies,

workstations, and a control network.

The DeltaV SIS system consists of:

 Redundant Logic Solvers (SLS 1508) and termination

blocks

 SISnet Repeaters (see separate product data sheet)

 Carrier extender cables

 Local peer bus extender cables

 Right 1-wide carrier with termination

Logic Solvers (SLS1508) contain the logic-solving

capability and provide an interface to 16 I/O channels that

can be configured as Discrete Input, Discrete Output,

Analog Input (HART) and HART two-state output

channels. Logic Solvers and termination blocks install on

the 8-wide carrier. Logic Solvers communicate with each

other through the carriers over a two-channel, local peer

bus (SISnet) and remote peer ring. Local Logic Solvers

are hosted by the same DeltaV controller and remote

Logic Solvers are hosted by a different DeltaV controller.

Logic Solvers are powered by a 24 V DC power supply

that is separate from the power supply that drives the

DeltaV controller and I/O. Logic Solvers install in oddnumbered slots (1,3,5,7) on the 8-wide carrier. Redundant

Logic Solvers use four slots.

SISnet Repeaters extend communication beyond the

local Logic Solvers connected to one DeltaV controller and

broadcast global messages to remote Logic Solvers

through a fiber-optic ring Carrier extender cables extend

Local Bus power and signals between 8-wide carriers.

Local peer bus extender cables extend the local peer bus

(SISnet) between Logic Solvers on different carriers. 1-

wide carriers with terminators terminate the local peer bus

at the final carrier.
