DeltaV™ Electronic Marshalling for Migrations

„ I/O anywhere you need it

„ Single channel granularity

„ Replaces legacy I/O in place

„ Fully redundant architecture

„ Complete DeltaV™ solution

„ Plug and play I/O

DeltaV™ CHARM I/O Cards (CIOC) mounted on a Migration Panel.

DeltaV CHARM I/O Baseplate Migration Panel.

Introduction

DeltaV™ Electronic Marshalling delivers a new level of control

system I/O performance with unprecedented flexibility and

ease of use. The CHARM I/O card (CIOC) supports up to

96 individually configurable channels and when mounted

horizontally in conjunction with a legacy system migration

will allow for direct replacement of legacy hardware within

existing cabinets. Now you can migrate to DeltaV without

having to add cabinets, custom cables, or extra marshalling.

All communications are completely redundant from the

channel (CHARM) to the DeltaV controller.

Benefits

I/O anywhere you need it: The DeltaV CIOC provides

unprecedented flexibility in control system I/O topology.

Now you can mount your DeltaV I/O in the same space as your

legacy I/O for a direct 1-to-1 replacement. Without adding

any new cabinets of DeltaV hardware you can replace all your

legacy equipment leaving behind a complete DeltaV solution.

Single Channel granularity: The CHARM I/O architecture

allows each individual channel to be characterized for the

requirements of the field device. Any instrument signal can be

wired to any terminal block. The channel is then electronically

marshalled by installing the appropriate CHARM and assigning

the channel to one of four controllers. Legacy I/O terminations

are no longer a concern because of multiple channel types

from a single termination panel. Just install the proper CHARM

to characterize the I/O as found on the legacy panels. No more

engineering and splitting signals from a single legacy panel to

multiple DeltaV I/O cards.

Replaces legacy I/O in place: DeltaV Electronic Marshalling

goes where no one else’s I/O can. Install the CHARMs migration

panel above, below, or even in front of your legacy termination

panel and move your wires inches to complete your migration

to DeltaV. Since the CHARMs migration panel is a standard

CHARMs baseplate, it talks to the CIOC the same as the

standard vertical installation through the cable interface.

This allows you to mount the migration panel in the best

location to facilitate a clean system cutover and not have to

“stretch” your I/O cables to a new termination. As an added

bonus, install CHARMs vertical if your wiring allows for it in

certain areas. Now you can mount your I/O in any orientation

as best fits your current migration layout and needs.

Fully redundant communications: The CIOC architecture is

fully redundant. This starts with the two I/O cards on a carrier.

The carrier has redundant communication modules for primary

and secondary network connections. There are two 24 V DC

input power connections. The carrier connects to the CHARMs

Baseplates and provides redundant power and communication

buses to the CHARMs. Everything is redundant down to the

individual channel.

Complete DeltaV solution: Migrate from your legacy system

with the comfort that when complete you will have a complete

DeltaV solution, not a combination of standard and custom

hardware/software to support. Every piece of the migration

panel is standard DeltaV hardware and can be supported with

the same personnel and spare equipment that every other

CHARMs and DeltaV installation uses.

Plug and play I/O: The DeltaV CIOC has been designed for

ease of use, both in physical installation and its software tools.

Components snap together with secure DIN-rail latches and

interlocking carrier connectors. Insert the CHARMs and auto

sense the node to create the I/O definition automatically in

your DeltaV configuration database. CHARMs use a self-keying

system to automatically set a channel for a specific CHARM

type. Users cannot mistakenly insert a CHARM into the wrong

terminal block. Assign all, one, or any number of channels to a

controller with a simple click and drag.

CHARM and Terminal Block.

Field power is provided through a redundant 24V DC bus to

each CHARM, with up to 100 mA per CHARM. Higher current

Discrete Channels can be powered through integrated power

injection bus local to each CHARM Baseplate.

Product Description

Electronic Marshalling for Migrations hardware includes:

„ CHARM I/O Carrier (DIN-rail mounted and supports

redundant pair of CHARM I/O Cards).

„ CHARM I/O Card (CIOC) provides communication between

CHARMs and the Ethernet I/O network to M-series, S-series,

and PK controllers. The CIOC has Achilles Communications

Certification Level 1 and the redesigned CIOC2 has more

computing power and Achilles Communications Certification

Level 2. The CIOC2 is a drop-in replacement for the CIOC.

„ CHARM Baseplate (DIN-rail mounted with interleaving power

and bus connectors. Supports 12 CHARMs and their terminal

blocks, as well as connection for injected field power).

„ CHARM Terminal Block (removable terminal block

providing terminal connections to field wiring and

physical latch for CHARM).

„ CHARMs (Characterization Module for each field signal.

Provides basic analog to digital conversion, connectivity

to redundant communication bus, and fault isolation).

„ Cable Extenders that provide flexibility in carrier mounting.

„ Baseplate terminators (provides bus terminations for

redundant I/O bus).

„ 19” Migration Panels (provides DIN-rail mounting for two

migration CIOC’s or two baseplates and cable extenders

for installation into your standard 19” legacy cabinets).

CIOC Migration Panel

The CHARM I/O card carrier is supposed to be mounted

on a vertical DIN-rail and can communicate with up to

eight CHARM Baseplates mounted vertically or on migration

panels and connected to each other through extender cables.

The bus terminators are attached to the last baseplate.

Baseplate Migration Panel

Each CHARMs Migration Baseplate Assembly is

ordered pre-loaded with 24 terminal blocks that are

ready to receive field wires from 2-, 3- , and 4-wire devices.

Electronic Marshalling eliminates the need to scramble the

field wiring or to partition the I/O to match signals to channel

types of specific cards. Simply connect field signals in an orderly

fashion as desired. Insert the appropriate CHARM into each

terminal block to complete the field circuit and the signal

is ready to be used by any, up to four controllers.

For each Migration CIOC installation you will need to

determine the quantity and connector cable length as

well as the appropriate quantity of top and/or bottom

baseplate terminators.

The Migration CIOC assembly has a height of 6 EIA units

(10.5 inches) and is designed to be mounted at the top

of the migration cabinet and connected to the CHARM

baseplate assemblies through the cables and cable extenders.

It should be noted that the CIOC can be mounted on vertical

DIN-rail anywhere in the cabinet (front, back, side, top,

middle, bottom) and connected to the CHARM baseplate

assembly the same way. NOTE: the CIOC cannot be mounted

on a horizontal DIN-rail.

The Migration CHARM baseplate assembly has a height of

3 EIA units (5.25 inches) which allows for each installation

to determine the mounting location within each cabinet.

The user can decide to reuse existing wire way / cable tray,

mount each assembly adjacent to each other, or mount with

spacing between each assembly. DeltaV CHARMs allow for

installation flexibility by allowing each assembly to be mounted

as needed to achieve the best result for each customer-specific

termination installation.

Each CHARM acts as a circuit protection device and field wiring

disconnects. Signals are current limited or fused to protect

against wiring faults to ground. Each CHARM provides surge

protection to meet industry standards in the area of EMC, and is

designed to fail during overvoltage conditions due to incorrect

field wiring. Signal faults are isolated to the single CHARM.

CHARMs can be partially ejected to a locked position that

disconnects the field wiring from the system to perform field

maintenance actions or to remove power to a field device.

Activating the CHARM latch ejects the CHARM to the detent

position. Closing the latch locks the CHARM in place and

isolates the field wiring for field work.

The CIOC communicates over Ethernet with up to four

controllers, allowing great flexibility and ease of system

expansion. Additional controllers can be added to

accommodate increased control scope and I/O can be

reassigned without changing the physical wiring. This allows

you the flexibility required in migrations where over time

I/O has been landed on one controller only to be used in

another because of space and or available I/O.

CHARMs can be added to any existing base plate position

and autosensed online. Additional CIOCs can be added online.

CHARM Types

All CHARM types function on the migration panel. See DeltaV

Electronic Marshalling PDS and DeltaV IS Electronic Marshalling

PDS for a complete listing of CHARMs and IS CHARMs.

I/O Terminal Block Options

All IS and non IS I/O Terminal Block types function on the

migration panel by choosing the right baseplate assembly.

CHARM Keying Posts

Keying Posts function the same.

CHARM I/O Card Hardware

See DeltaV Electronic Marshalling PDS and DeltaV IS Electronic

Marshalling for a complete description of CIOC Hardware.

CHARM I/O Card Carrier

See DeltaV Electronic Marshalling PDS and DeltaV IS

Electronic Marshalling PDS for a complete description

of CIOC Carrier Hardware.

Hardware Specifications

CHARM I/O Migration Panel

Environmental Specifications

Operating Temperature* -40 to 70°C (-40 to 158°F)**

Storage Temperature -40 to 85°C (-40 to 185°F)

Relative Humidity 5 to 95% , non-condensing

Protection Rating IP 20

Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G3

Conformal coating

Shock 10 g ½-sine wave for 11 ms

Vibration 1 mm peak-to-peak from 5 to 13.2 Hz;

0.7 g from 13.2 to 150 Hz

Dimensions

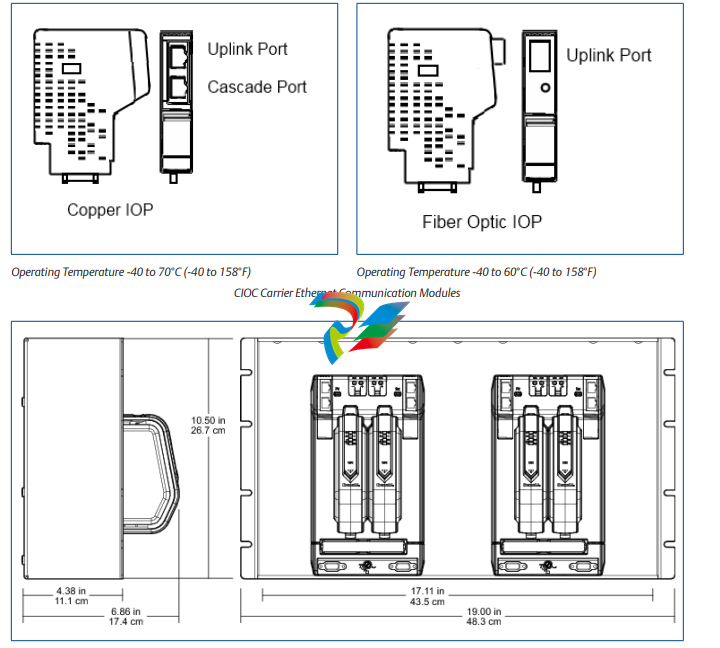

Height 10.5 in (26.7 cm)

Depth 6.68 in (17.4 cm)

Width 19 in (48.3 cm)

Mounting 19 in (48.3 cm) EIA rails

6 Rack Units (U) high

Redundant Migration CIOC2 with Copper Ethernet, includes redundant pair of CHARM I/O Card 2,

CHARM I/O Carrier with Screw Terminals, Copper I/O Ports, CHARMs Baseplate Extender with Bottom

Cable Connector, a Baseplate Identifier and a Separation Wall

SE6505T03

Redundant Migration CIOC2 with fiberoptic Ethernet, includes redundant pair of CHARM I/O Card 2,

CHARM I/O Carrier with Screw Terminals, Fiberoptic I/O Ports, CHARMs Baseplate Extender with Bottom

Cable Connector, a Baseplate Identifier and a Separation Wall

SE6505T04

CHARMs Migration CIOC Panel

19” Migration panel with DIN-rail support for 2 redundant migration CIOCs

SE6503T01

CHARM Baseplates for Migrations

Description Model Number

CHARMs Migration Baseplate Assembly:

„ Two CHARM Baseplates

„ Two CHARM Address Terminal Blocks with screw terminals

„ 24 Standard CHARM Terminal Blocks

„ CHARM Baseplate Extender with Cable Connectors – Top

„ CHARM Baseplate Extender with Cable Connectors – Bottom

„ 19” migration panel with DIN-rail

„ 3 Baseplate Identifiers

SE4601T03

CHARMs Migration Baseplate Assembly with 3-wire DI Fused-Injected Field Power:

„ Two CHARM Baseplates

„ Two CHARM Address Terminal Blocks with screw terminals

„ 24 3-wire DI Fused Injected Power CHARM Terminal Blocks

„ CHARM Baseplate Extender with Cable Connectors – Top

„ CHARM Baseplate Extender with Cable Connectors – Bottom

„ 19” migration panel with DIN-rail

„ 3 Baseplate Identifiers

SE4601T10

CHARMs Migration Baseplate Assembly with Fused-Injected Field Power:

„ Two CHARM Baseplates

„ Two CHARM Address Terminal Blocks with screw terminals

„ 24 Fused Injected Power CHARM Terminal Blocks

„ CHARM Baseplate Extender with Cable Connectors – Top

„ CHARM Baseplate Extender with Cable Connectors – Bottom

„ 19” migration panel with DIN-rail

„ 3 Baseplate Identifiers

SE4601T04

CHARMs Migration Baseplate Panel:

19” Migration panel with DIN-rail support for 2 CHARM Baseplates and Cable Extenders

KL4504X1-BA1

CHARM Baseplates for Migrations

Description Model Number

CHARMs Migration Baseplate Assembly with Relay Output:

„ Two CHARM Baseplates

„ Two CHARM Address Terminal Blocks with screw terminals

„ 24 Relay Output CHARM Terminal Blocks

„ CHARM Baseplate Extender with Cable Connectors – Top

„ CHARM Baseplate Extender with Cable Connectors – Bottom

„ 19” migration panel with DIN-rail

„ 3 Baseplate Identifiers

SE4601T06

IS CHARMs Migration Baseplate Assembly:

„ Two IS CHARM Baseplates

„ Two IS CHARM Address Terminal Blocks

„ 24 IS CHARM Standard Terminal Blocks

„ CHARM Baseplate Extender with Cable Connectors – Top

„ CHARM Baseplate Extender with Cable Connectors – Bottom

„ 19” migration panel with DIN-rail

„ 3 Baseplate Separation Walls

SE4608T02

Important Note:

The IS CHARMs are dimensionally different than non-IS CHARMs. The IS CHARM Baseplates are supposed to be mounted on the same

19” migration panel than the non-S Baseplates, therefore the IS CHARMs will stick 45 mm further out of the 19” frame than non-IS CHARMs!

CHARM I/O Baseplate Address Plugs

Description Model Number

CHARM Addressing Plugs, includes Address Plugs 1 through 8 SE4602

CHARM Addressing Plugs, includes Address Plugs 1 through 4 SE4613

Prerequisites

DeltaV Electronic Marshalling hardware requires DeltaV v11.3.1 or later software.

CHARM I/O Baseplate Extender, Terminator and Cables

Description Model Number

CHARM Baseplate Extender with Cable Connectors, Top (Male)

includes a Baseplate Identifier and a Baseplate Separation Wall

SE4603T05

CHARM Baseplate Extender with Cable Connectors, Bottom (Female)

includes a Baseplate Identifier and a Baseplate Separation Wall

SE4603T06

CHARM Baseplate Terminator, Top (Male)

includes a Baseplate Identifier and a Baseplate Separation Wall

SE4604T03

CHARM Baseplate Terminator, Bottom (Female)

includes a Baseplate Identifier and a Baseplate Separation Wall

SE4604T04

CHARM Baseplate Cables, includes two 0.5m cables SE4605T02

CHARM Baseplate Cables, includes two 1m cables SE4605T03

CHARM Baseplate Cables, includes two 2m cables SE4605T04

Each vertical DIN-rail requires a DIN-rail stop to lock baseplates in position. Order VE4054DRS, which is a box of 5.

IS CHARM FUSE

Description Model Number

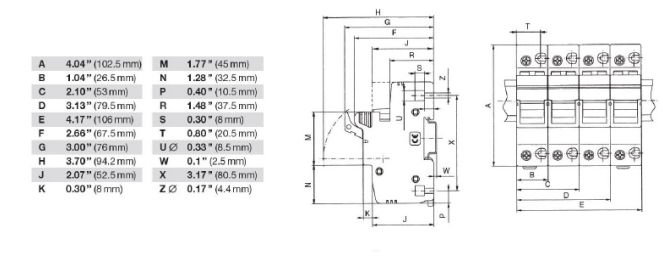

Fuse Holder and Fuse Assembly for 24V DC Power Supply of CHARM I/O CARD SE4610T01*

DeltaV Electronic Marshalling for Migrations
