schneiderI/A Series® HARDWARE Product Specifications

The Intrinsically Safe I/O Subsystem provides integration between the Pepperl+Fuchs™ (P+F) modular

intrinsically safe remote I/O systems and the I/A Series® system. The Intrinsically Safe Communications

Module (ISCM) enables I/A Series control processors to view the P+F I/O modules as equivalent 200 Series

Fieldbus Modules (FBMs), which can be monitored with standard I/A Series blocks and standard InFusion™

or I/A Series system/control configurator applications such as the InFusion Engineering Environment and the

Integrated Control Configurator.

FEATURES

 Intrinsically safe - supports Zone 2, Div. 2 or

Zone 22 (LB-style) environments or Zone 1, or

Zone 21 (FB-style) environments

 ISCMs interface the 2 Mbps HDLC Module

Fieldbus to the FCP270 or ZCP270

 Up to 46 (for LB-style Zone 2 Applications) or

48 (for FB-style Zone 1 Applications) P+F

intrinsically safe I/O modules supported per

optionally redundant ISCM, with a total of

16 ISCMs supported per I/A Series control

processor (FCP270 or ZCP270); a maximum of

204 modules (ISCMs, I/O modules and

200 Series FBMs) supported per FCP270 and a

maximum of 128 modules supported per

ZCP270, provided the maximum CP Fieldbus

load and intrinsically safe I/O power supply load is

not exceeded.

 Redundant ISCMs allow either module to control

the process. Role reversal is automatic on

detected failures

 Letterbug set through a letterbug module with

rotary switch plugged into the ISCM.

 Monitored by standard System Manager or

I/A Series SMDH and FoxView™ displays

 “CE” logo marked on product.

OVERVIEW

The Intrinsically Safe I/O Subsystem provides

integration between the Pepperl+Fuchs (P+F)

modular intrinsically safe remote I/O systems and the

I/A Series system. The Intrinsically Safe

Communications Module (ISCM) communicates

between the two systems, as it enables I/A Series

control processors to view supported P+F intrinsically

safe I/O modules as equivalent 200 Series Fieldbus

Modules (FBMs) over the I/A Series 2 Mbps HDLC

Fieldbus. This allows the I/O modules to be

monitored with standard I/A Series blocks and

standard I/A Series or InFusion system/control

configurator applications such as InFusion

Engineering Environment and ICC.

This subsystem supports both the P+F intrinsically

safe I/O modules and their associated base,

extension or redundancy units for Zone 2, Div. 2 or

Zone 22 (LB-style(1)) environments or

Zone 1 or Zone 21 (FB-style(2)) environments.

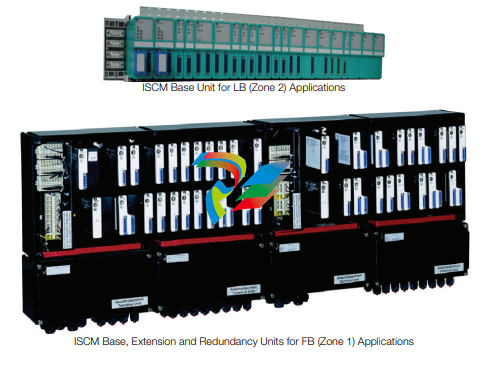

Optionally redundant ISCMs are mounted directly on

the appropriate P+F unit along with the I/O modules

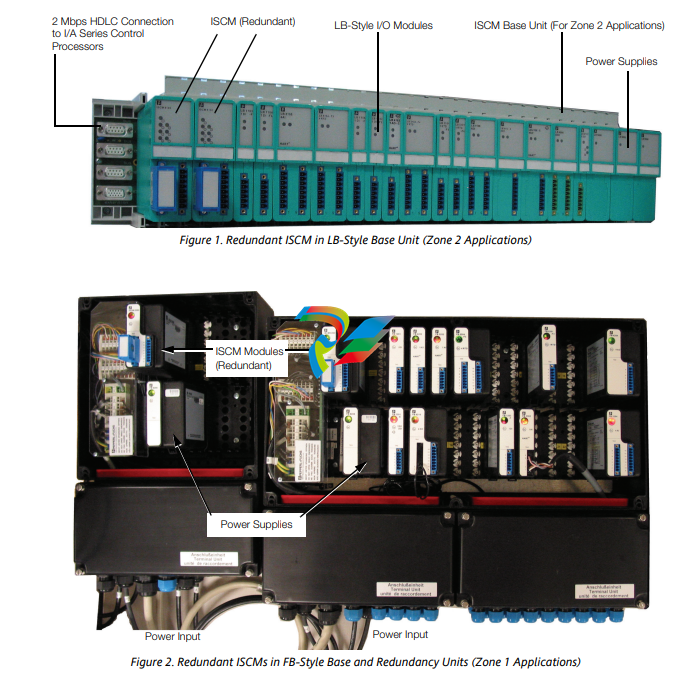

and power supplies, as shown in Figure 1 and

Figure 2. Only I/O modules can be mounted in the

extension units. Each I/O module can be plugged

into any desired slot on the base or extension unit.

ISCMs and power supplies are required to be

plugged into their own dedicated slots.

Depending on the model type used, I/O modules can

occupy one or two slots in their unit.

ISCMs are installed as single or redundant. In

redundant configurations, both ISCMs are always

active. In case of a module’s failure, the other

provides backup coverage until the failed ISCM is

returned to service. An ISCM for Zone 2 applications

may support up to 46 LB-style I/O modules, while an

ISCM for Zone 1 applications may support up to 48

FB-style I/O modules.

NOTE

The following 200 Series FBM features are

not supported on the intrinsically safe I/O

modules: Sequence of Events (SOE), TDR,

time synchronization, ladder logic, and the

EVENT, MDACT and DPIDA blocks.

NOTE

The limit of sixteen ISCMs per subsystem

represents the theoretical maximum if the

base, extension or redundancy units are not

fully fitted with modules. Sixteen base units

with sixteen extension units will connect a

total of 16 x 46 I/O modules (736). The

controller can handle up to 204. If dual-width

modules are used, then the subsystem will

have 16 x 23 dual-width I/O modules (368)

which is outside the scope of the

subsystem. In typical scenarios, eight units

can be connected to one FCP270

PEPPERL+FUCHS MODULAR REMOTE I/O

SYSTEMS

The Pepperl+Fuchs modular remote I/O systems -

for Zone 2 or Zone 1 applications - are the costeffective connection of field signals in the hazardous

and the intrinsically safe areas to your process

control system via the HDLC Fieldbus. Combinable

I/O modules and high modularity offers cost-saving

installations. The P+F remote I/O systems are

characterized by high functionality and simple

handling.

Only intrinsically safe I/O modules from P+F that are

listed in this PSS are supported by the ISCM. If it is

desired to also include non-IS signals in the same

I/A Series system, then standard 200 Series FBMs

must be used for these signals.

For more information on these systems, refer to the

website: www.ips.invensys.pepperl-fuchs.com
