schneiderModbus Master (Serial and TCP/IP) Driver for Field Device System Integrator Modules

The Field Device System Integrator (FDSI) Modbus Master driver is designed to smoothly integrate single or

dual-ported Modbus devices using several different Modbus protocols into an I/A Series® system.

FEATURES

Key features of the FDSI Modbus Master driver are:

 Integration of single and/or dual-ported Modbus

devices into an I/A Series system at the fieldbus

level

 Exchange of real-time data between Modbus

devices and the I/A Series system

 Compliance with the globally accepted and

widely used Modbus communication standard

 Simplex (FBM230 or 232) or Redundant

(FBM231 or 233) operation of FDSI Fieldbus

Modules

 Support for three Modbus protocols: Modbus

RTU and Modbus ASCII protocols for serial

devices, and Modbus/TCP for Ethernet devices

 Optionally available vendor-specific device

variations of Modbus drivers

 FDSI hardware provides a barrier for network

security issues

 Availability of standard I/A Series plant

management functions and operator displays to

Modbus devices

 System Monitor detection of Modbus device

connectivity

OVERVIEW

The Field Device System Integrator (FDSI) Modbus

Master driver enables the integration of vendorindependent single or dual-ported Modbus devices

using one of several Modbus protocols into an

I/A Series system.

The Modbus Master driver allows the I/A Series

system to obtain real-time data from attached

Modbus devices, manipulate the data using state-ofthe-art control algorithms, and write output data to

the devices.

The Modbus Master driver is downloaded to the

appropriate single or redundant FBM, and allows the

FBM to translate the data sent to the I/A Series

system from the field device or vice-versa.

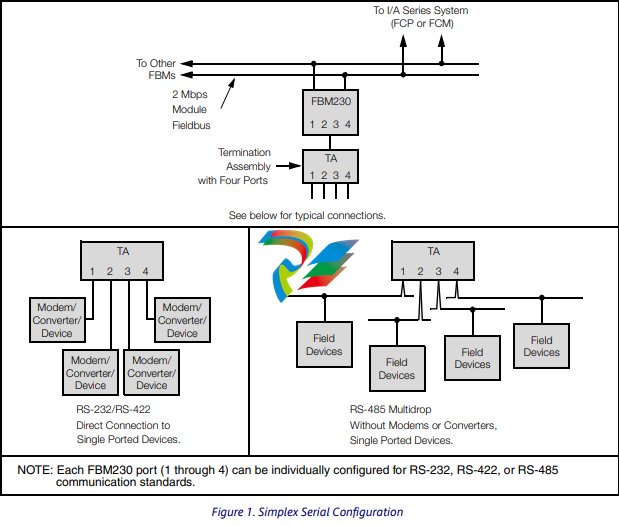

Figure 1 illustrates a typical configuration in which a

simplex FBM230 is communicating with serial

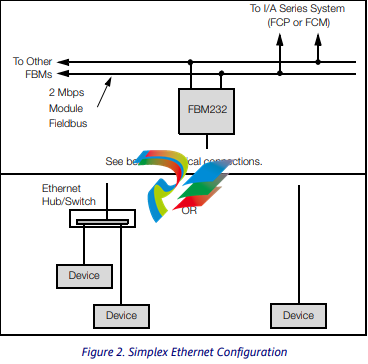

Modbus devices. Figure 2 illustrates a typical

configuration in which an FBM is communicating with

Ethernet Modbus devices.

HARDWARE

Devices with which the FDSI FBMs can successfully

communicate are single or dual-ported Modbus

devices that support any of the three Modbus

communication protocols. Depending on which

Modbus devices and methods of communication you

are using, as well as redundancy requirements, you

need one or more of the following FDSI FBMs.

FBM230

The FBM230 is equipped with four ports, each of

which can be configured to use either the RS-232,

RS-422, or RS-485 physical interface standard. The

FBM230 supports single-ported devices utilizing

either the Modbus RTU or Modbus ASCII

communication protocols, and provides a serial

interface between the I/A Series system and the

devices. Refer to PSS 21H-2Z30 B4.

FBM231

The FBM231 is equipped with four ports, each of

which can be configured to use either the RS-232,

RS-422, or RS-485 physical interface standard. Two

FBM231s can be used to implement a redundant

serial interface between the I/A Series system and

dual-ported devices utilizing either the Modbus RTU

or Modbus ASCII communication protocols. Refer to

PSS 21H-2Z31 B4.

FBM232

The FBM232 supports single-ported devices utilizing

the Modbus/TCP communication protocol, and

provides an Ethernet interface between the I/A Series

system and the devices. Refer to PSS 21H-2Z32 B4.

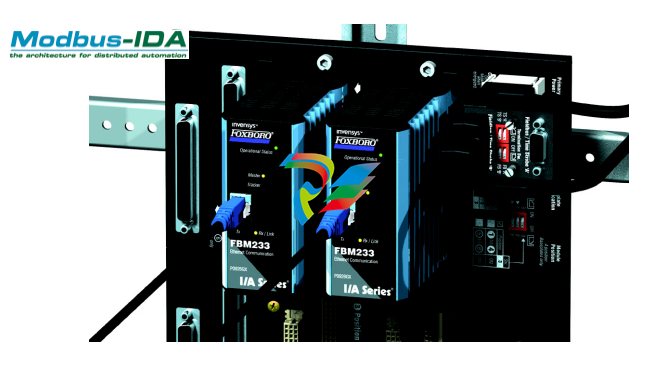

FBM233

Two FBM233s can be used to implement a

redundant Ethernet interface between the I/A Series

system and single or dual-ported devices utilizing the

Modbus/TCP communication protocol. Refer to

PSS 21H-2Z33 B4.

MODBUS MASTER DRIVER BENEFITS

Using the Modbus Master driver with FDSI FBMs

provides the benefits described in the following

subsections.

Easy Integration of Modbus Devices

The Modbus Master driver allows you to include new

or existing Modbus-compliant devices in your

process, regardless of device manufacturer.

Incorporating an open communication standard like

Modbus in your system provides a wide range of

options when selecting the best field devices for your

process.

I/A Series System Support

The I/A Series system supports three protocols for

communication with Modbus devices: Modbus RTU,

Modbus ASCII, and Modbus/TCP. For FBMs 230 and

231, either Modbus RTU or Modbus ASCII are

separately configurable on each port. This support

accommodates the transfer of data to and from both

single and dual-ported Modbus devices, via a serial

or Ethernet connection.

I/A Series software also provides standard plant

management functions and operator displays for

these devices, in addition to startup and

communication fault detection and display using

System Monitor.

Flexibility

The Modbus/TCP protocol uses Ethernet and TCP/IP

technologies. The simplicity and low cost of Ethernet

hardware combined with the high speeds and

reliability characterized by Ethernet networks greatly

improves plant efficiency and provides the flexibility

required to constantly keep up with changing
