CMZ-SVM-SVM1608

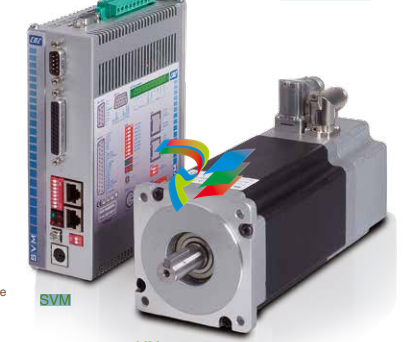

• SMART SERVODRIVE FOR 2 PHASES SYNCHRONOUS MOTOR HARDWARE FEATURES

Power supply 65-180Vdc [Nominal 160Vdc] Control supply 20-180Vdc Rated current 4Arms @40°C (8,5Arms with external ventilation) Peak current 12Arms Feedback Incremental encoder Encoder output Incremental line driver (differential output) Digital input 7 configurable 24Vdc PNP optoisolated (e.g.: limit switch +/-, index, captures or general purpose) Special digital input 2 configurable 24Vdc PNP or line driver optoisolated: settable as master encoder or step/dir or general purpose Analog input 1 Analogue IN +/-10V Digital output 4 optoisolated PNP digital outputs 24Vdc max 200mA n. 1 24Vdc max 1,4A for motor brake control or general purpose (external power device required) Interface Profibus-DP slave CANopen RS232/485 (ModBus) step/dir, +/-10V with encoder output CAN Speed/address selection by switches or software settable Available versions Profibus-DP, CANopen, ModBus RS485, Step/dir, ±10V Dimensions (mm) W51xH196xD125 Weight (Kg) 0.8 Certifications: CE FUNCTIONAL FEATURES SVM Integrated movement features: device profile DS402, interpolated mode, positioning, extended gearing function, homing, capture Stand alone programmability according to the standard IEC61131, ST language Capture input PC parametrization tool Protection I2t, Overload, Short circuit, Overtemperature, Overvoltage

FUNCTIONAL FEATURES SVM Integrated movement features: device profile DS402, interpolated mode, positioning, extended gearing function, homing, capture Stand alone programmability according to the standard IEC61131, ST language Capture input PC parametrization tool Protection I2t, Overload, Short circuit, Overtemperature, Overvoltage

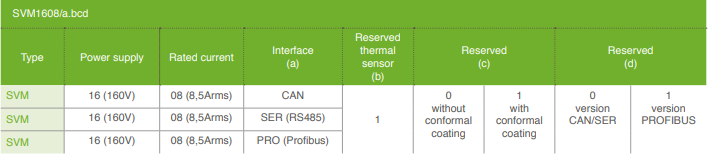

• SVM ORDERING CODES
