OrmecSMLC System Overview

The ServoWire Motion & Logic

Controller (SMLC) family features high

performance computing capability

combined with a true real-time

operating system (RTOS). Using the

industry standard family of Intel 32-bit

processors running the QNX RTOS

provides plenty of cost effective, robust

computing power for even the most

demanding multi-axis motion control

and machine control applications.

Machine I/O

The SMLC provides a multi-tiered,

flexible approach to meeting machine

I/O requirements. It has the ability to

interface high-speed drive based I/O

for microsecond position capture and

single servo update response to sensor

signals. It also provides submillisecond programmable limit switch

outputs that are tightly coupled to the

motion control.

General purpose I/O options are fully

supported using WAGO 750 Series

Ethernet I/O as well as optional

Profibus DP Master support. For both

options, a wide variety of analog and

digital I/O modules can be cost

effectively connected to and controlled

by the SMLC.

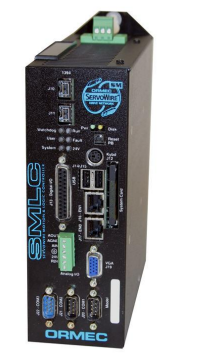

SMLC

1. Processor Options

Intel architecture microprocessor

128 Mbytes DRAM

128 Mbytes of FLASH memory for

program storage

32 Kbytes SRAM (battery packed)

for non-volatile data storage

2. Communication Ports

Two or three IEEE 1394b

ServoWire (FireWire) Ports

Two Ethernet Communication

Ports.

Three RS-232 Communication

Connectors.

3. Input Power Supply

115/230 VAC input power (autoranging), 50/60 Hz

+5, +/-12 VDC logic power output

4. Status LEDs

Eight status LEDs on the face for

indicating system status.

ServoWire Drive Network

ORMEC’s AC brushless servomotors

and ServoWire digital ServoDrives

offer tested and guaranteed

performance with the SMLC. The

result is maximum performance from a

tightly integrated, pre-engineered

package that simplifies everything

from system integration to

maintenance.

Fully digital control offers compelling

benefits eliminating manual

ServoDrive setup and providing realtime software access to all

parameters. In an SMLC system, the

position, velocity and torque loops are

all closed by the digital signal

processors (DSPs) in the ServoWire

Drives. Position update commands

are sent from the SMLC. Velocity

observer software eliminates the need

for analog tachometers, and

potentiometers are eliminated since all

gain and compensation parameters

are set in software.

All loop adjustments are automatically

computed when a motor and its load

inertia are specified in ServoWire Pro

greatly simplifying servo system

tuning.

SMLC — At a Glance

Powerful and Robust: Intel 32-bit

processors running the QNX RTOS.

IEC 61131-3 Application

Programming: International

programming standard for PLCs.

PLCopen Motion Blocks: Standard

compliant motion blocks, powerful

ORMEC enhancements.

ServoWire: High-bandwidth,

synchronous, all-digital ServoDrive

network based on IEEE 1394b.

Networking Options: Modbus/TCP,

OPC Server and Ethernet IP.

I/O Options: WAGO 750 Series

Ethernet I/O and Profibus DP Master.

Size: Models 30 and 80 are 2.75” x

7.2” x 9” (w x d x h) and Model 160 is

4.25” x 7.2” x 9”

Specifications

General Specifications

Input Voltage: 115/230 VAC,

1.0/0.5A (+15%, -20%), 50/60 Hz

Operating Temperature: 0 to 50°C

Relative Humidity: 10 to 95% @

40C (non-condensing)

Weight: Approx. 3.1/3.5 lbs

Dimensions: Models 30 & 80 are

2.75” x 7.2” x 9.0” (69.9 x 182.9 x

228.6 mm), and Model 160 is 4.25”

x 7.2” x 9.0” (108 x 182.9 x 228.6

mm) (w x d x h)

Processor & Memory

DRAM: 128 Mbytes

Program Memory: 128 Mbytes

(Removable Compact Flash)

Non-Volatile Memory: 32 Kbytes

(battery backed).

Motion Control

All-digital control algorithms

featuring velocity and acceleration

feed-forward for optimal

performance.

High-speed sensor inputs to initiate

motion within one position command

update.

High-speed hardware position

capture is <1 µsec, ideal for use in

high-speed registration applications.

Software controlled position, speed

and current (torque) limits.

Drive fault protection circuits,

watchdog timers and integrated

diagnostics for fail-safe operation.

Full 32-bit position count or modulo

position in user units.

SMLC Model 30 - 3 axes

SMLC Model 80 - 8 axes

SMLC Model 160 - 16 axes

Equal number of ‘virtual’ axes for each

model

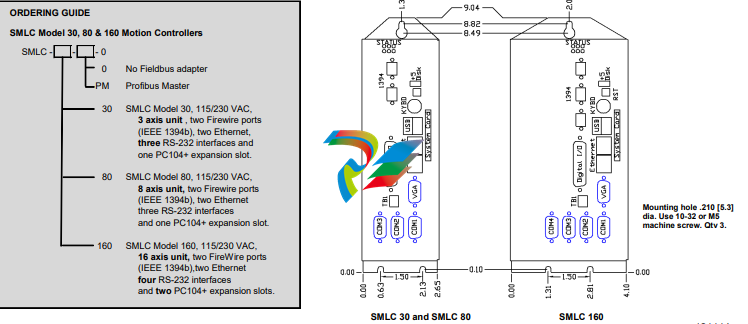

SMLC Mounting Diagrams

Inputs/Outputs

SMLC I/O: 8 inputs, 8 outputs, 1

analog in, 1 analog out.

General I/O: 64 modules per WAGO

750 Series bus coupler, up to 512

I/O points connected via Ethernet

(Modbus/TCP). Multiple bus

couplers can be used for additional

I/O.

Profibus DP Master (optional)

supports up to 126 I/O nodes.

Communications

Standard RS-232 serial ports

Standard Ethernet ports support

Modbus TCP/IP or Ethernet/IP.
