OrmecSMLC System Overview

Motion and Logic. All in

one. You can

combine the best of

both worlds with

IEC 61131-3

programming tools

and powerful

motion control

software for up to

16 axes.

ORMEC’s

ServoWire Motion & Logic

Controller (SMLC) product family

provides integrated, costeffective control that leverages

industry-standard hardware and

software solutions.

Reduce your software

development and support costs

by using the common “look and

feel” of our CoDeSys software

solution for programming

applications using sequential

function chart, relay ladder

logic, function block diagrams,

instruction list and structured

text. Use the PLCopen motion

control library, Application

Specific Function Blocks and

powerful ORMEC extensions

for electronic gearing,

camming, registration control,

superimposed motion and

coordinated,

for multi-axis

applications.

Check out our

line-up of

FireWirebased digital drives and servo

motors, and solutions for machine

I/O, factory networking and HMI.

IEC 61131-3 programming and

high performance motion for

up to 16 axes in a single

package.

Up to 16 servos can be daisychained and interfaced to the

SMLC using standard IEEE1394b network interfacing and

cabling.

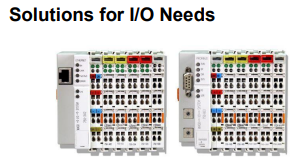

Machine I/O solutions include

Ethernet or Profibus DP.

Quality AC brushless

servomotors offer continuous

stall torques from 3 to 845 lbin (0.32-75 N-m)

Fully Integrated Total System Solutions...

ORMEC Systems Corp. | 19 Linden Park | Rochester, NY 14625 | phone (585) 385-3520 |www.ormec.com

Integrated Control Hardware

The ServoWire® Motion and Logic Controller

The SMLC is a cost-effective control platform offering

rugged, industrial hardware, a proven RTOS and industry

standard networking, programmed using standard IEC

61131-3 languages. An SMLC system offers low cost,

compact, proven and reliable components.

Featuring Pentium-class processors.

Two built-in Ethernet ports, two or three FireWire

ports* (with or without screw downs), three or four

serial ports*.

Compact Flash program storage (eliminates hard

disk) and 32k battery-backed SRAM data storage.

Reliable, QNX real-time operating system.

*Model Dependent

CoDeSys Development Software

Using industrystandard IEC

61131-3, you can

develop a motion

and I/O program

using standard

tools that

streamline

development and

create application

solutions that are

both more effective and easier to support in the field.

There are no software costs when using the ORMEC

SMLC in your application.

FireWire motion networking reduces cost &

complexity

Control one to 16 servos directly from one controller

without specialized motion control hardware.

ServoWire® S2D drives are available in 200V and

400V series. Fourteen models provide continuous

output power from 600 watts to 24 kilowatts,

Conveniently interface a variety of Servo Motors

Mix and match servo technologies (DC brushless rotary, linear,

DC brush-type or voice coil motors) in the same drive hardware.

Continuous stall torques from 3 to 665 lb-in (0.32-75 N-m).

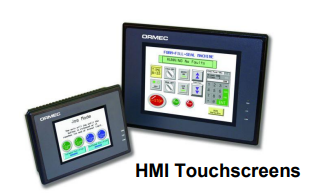

Standalone touchscreen HMIs utilize Modbus RTU

(Serial) or Modbus/TCP (Ethernet) communications. Or

you can utilize Windows-based HMIs such as

Wonderware InTouch, Rockwell Automation RS View,

Intellution iFIX, CiTect or GE Cimplicity that communicate

with the SMLC using an OPC Server.

Select among text-based and graphical languages

to pick the right one for the job -- Relay Ladder

Logic, Function Block Diagram, Structured Text,

Instruction List or Sequential Function Chart

programming.

Program motion control and logic using standard

IEC 61131-3 tools.

Suite of programming languages and diagnostic

tools streamlines development and simplifies

support.

PLCopen standard Motion Control Library, plus

powerful ORMEC extensions, bring new levels of

motion performance for electronic gearing,

camming, registration control and coordinated,

multi-axis applications

Application Specific Function Blocks are provided

for many common motion control applications.

ServoWire® Motion & Logic Controller

Models 30, 80 & 160

ORMEC’s ServoWire Motion & Logic

Controller (SMLC) is at the center of a

complete machine control solution that

can meet all of your motion, I/O and

networking needs. By combining

Pentium processors, IEEE 1394b

FireWire drive networking and Ethernet

connectivity, the SMLC is a system that

can control your entire machine. This

allows you to focus on your application

instead of integrating control

components.

The SMLC, ServoWire Drive Network,

Modbus/TCP and Ethernet IP provide

state-of-the-art I/O and motion control

(for up to 16 axes), all programmed

using any of the five IEC 61131-3

standard languages including relay

ladder logic.

SMLC Family of Controllers
