schneiderABSOLUTE™ Temperature Control System

ABSOLUTE™

Temperature Control System

DESCRIPTION

The ABSOLUTETM Temperature Control System provides accurate and stable

temperature control of liquid source chemicals. Five different models provide

temperature control through the range of 10°- 90°C, with an accuracy of ± 0.2°C.

FEATURES AND BENEFITS

• Modular design for easy installation

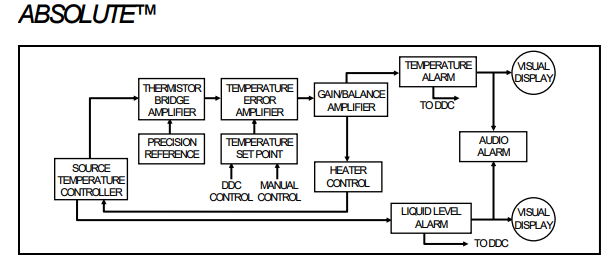

• Microprocessor-based control circuitry for accurate and stable temperature control

• Electronic and visual (sight glass) level sense (for monitoring chemical levels)

• Removable source cup permits safe container installation from the front of the unit

• Full range of safety interlocks

• DDC interface for remote control and monitoring

• Holds 1500cc quartz or 1.2 liter stainless steel containers

• Stainless steel versions incorporate level sense and integrated lid heater

• Trans-LC® version eliminates all spark sources and reduces over temperature cutout

interlock

ATCS with 1500cc patented

breakseal quartz bubbler.

APPLICATIONS

• Temperature control for CVD source chemicals

(i.e. TEOS, ZTOMCATS®, LTO-410™,

TMB,TMPI)

• Temperature control for diffusion and oxide

passivation source chemicals (i.e. Trans-LC,

TCA, POCl3, and PBr3 and BBr3)

RELATED PRODUCTS

Delivery Containers

• 1500cc Quartz Breakseal Containers

• 1.2 liter Stainless Steel Containers

Delivery Equipment

• Serves as temperature controller for the V

MDOT™ Delivery System

Refill Equipment

• Transfill“ II Automated Chemical Refill System

• UltraFillTM Automated Chemical Refill System

ABSOLUTE™

* Minimum cooling capability is 15°C below ambient temperature.

** Add a minimum of 78mm (3in) to depth measurements for cable connection clearance.

*** Overall height = 62.5mm (2.5in) + source height.

**** Not including weight of source and chemical.

ABSOLUTE SYSTEM SPECIFICATIONS

PERFORMANCE

Temperature Control:

Standard Temperature Model: 10°C* to 60°C

High Temperature Model: 40°C to 90°C

Trans-LC Model: 10°C to 22°C

Temp Accuracy: ± 0.2°C of setpoint

Temp Stability: ± 0.1°C

Readout Resolution: 0.1

Temp Cutout (std): 70°C

Temp Cutout (Trans-LC): 50°C

Temp Cutout (high temp): 110°C

LIQUID LEVEL SENSE

Quartz Breakseal Container:

Discrete level sensors at 100%, 50%, 25% and 15%.

Backlit sight glass for visual inspection of liquid level.

Stainless Steel Container:

Discrete level sensors for indications at 100%, 75% and 15%.

ALARMS

Liquid Level Alarm:

Alarm activated when liquid level reaches 15% full.

Temperature Alarm:

Alarm is activated when the sensed temperature is not within ± 2°C of the temperature setpoint.

(± 5°C for Trans-LC unit)

Alarm Indicators:

All alarm conditions generate an audio alarm, flashing LED display with alarm condition, and an alarm output through

the DDC interface. (The audio alarm can be silenced for 30 minute intervals.)

DIMENSIONS

ABSOLUTE Electronics Module:

Height: 233.7mm (9.20 in)

Width: 63.5mm (2.50 in)

Depth**: 260.4mm (10.25 in)

ABSOLUTE Base Unit

Height: 233.7mm (9.20 in)

Width: 209.6mm (8.25 in)

Depth**: 262.9mm (10.35 in)

Source elevation***: 62.5mm (2.5 in)

WEIGHT

ABSOLUTE Base Unit: 6.7kg**** (14.9 lbs)

ABSOLUTE Electronics Module: 4.8kg (10.5 lbs)

MOUNTING

• ABSOLUTE must be mounted on a level, low vibration surface.

• ABSOLUTE base unit should be secured to mounting surface to prevent it from sliding when removing and

installing the source cup.

• ABSOLUTE electronics module can be remoted up to 4.84 meters (16 feet) away from the base unit.

POWER REQUIREMENTS

• 90 - 154VAC 50/60 Hz 275VA max

• 180 - 264VAC 50/60 Hz 275VA max

DDC INPUTS

• Analog Temperature Setpoint

DDC OUTPUTS

• Analog Temperature Output

• Analog Level Output

• Temperature Alarm

• Liquid Level Alarm

• Any Alarm

CABLE LENGTH

• DDC Cable 20 Conductor Shielded: 6.10 meters (20ft) 20-conductor shielded

• ABSOLUTE Interconnect Cable: 456.85mm (18in) standard

 – Cable lengths up to 6.10 meters (20ft) are available upon request.

SOURCE CONTAINERS

The ABSOLUTE is fully compatible with Schumacher 1500cc quartz and 1.2 liter stainless steel containers.

1.2 Liter stainless steel container:*

Standard Configuration (BK1200SS Series)

• Manual inlet/outlet valves

• VCR inlet/outlet connectors

• Level Sense Probe

Integral Lid Heater Configuration (BK1200SSV)

• Pneumatic outlet valve

• 1/2" male VCR outlet connector

• Level sense probe

TransFill Host Container (BK1200SSR)

• Designed for automatic refill

• Pneumatic valves, VCR connectors

• Continuous and discrete level sense probes included

1500cc Quartz Containers:

D-Series Quartz Container (BK3D1)

• Teflon inlet/outlet valves

• 1/4" inlet and 3/8" outlet connectors (for teflon tubing)

R-Series Quartz Container (BK3R1)

• Designed for Automatic Refill

• Pneumatic Teflon Control Valves
