benderIRDH575 Series Digital Ground Fault Monitor / Ground Detector Controller for Ground Fault Location System Ungrounded (Floating) AC/DC Systems

Description

The IRDH575 monitors for ground faults in ungrounded AC (20 - 760 V, single- and threephase) and DC (20 - 575 V) by measuring the system's insulation resistance. Systems with

extensive power conversion devices, such as rectifiers and variable frequency drives, are

supported by the IRDH575. The IRDH575 is able to detect ground faults in ungrounded

systems before leakage current may even be present.

When combined with EDS4… ground fault location devices and the appropriate current

transformers, the IRDH575 becomes a controller for a ground fault location system.

Function: Ground fault detection

When the insulation resistance from system to ground falls below the set response value,

the alarm relays switch and the alarm LEDs activate. Two separately adjustable alarm

contacts can be set to a prewarning and main warning alarm. The measured value is indicated on the LCD display or on an externally connected meter. If the device is set to nonlatching mode, the alarms will clear when the ground fault clears. If the device is set to

latching mode, the alarms will not reset until the device is reset manually or the supply

voltage is lost. An external and internal test/reset can be activated remotely or on the device. A comprehensive INFO menu key displays additional information such as the current leakage capacitance and device settings.

The IRDH575 continuously monitors the equipment ground connection and line connections to ensure proper operation. The device's easy-to-use onboard menu manages all

settings via the detailed LCD screen.

Function: Ground fault location

When a ground fault is detected, the EDS ground fault location system is activated (this

feature can be set to require a manual start as well). Each channel of the EDS location device is connected to a particular branch circuit. The IRDH575 begins transmitting a pulsed

signal. This signal will travel through the channel of the EDS with the ground fault back

to the IRDH575. If the pulse travels back to the IRDH575, the channel with the ground

fault will display on both the IRDH575 and the EDS device.

In addition, an optional EDS30... portable ground fault location system can be used to follow the pulse travelling to the source of the ground fault.

Additional functions

99 timestamped alarm messages may be stored in the non-volatile memory of the

IRDH575. The device also includes standby contacts when several A-ISOMETER® detectors

are operating in coupled ungrounded systems.

Two-way data communication is carried out between devices via an RS-485 interface.

This interface can be connected to a BENDER protocol converter to exchange data across

other protocols, such as Ethernet, MODBUS, or PROFIBUS.

A 0/4 - 20 mA output can be connected to an external meter or higher-level control system, such as a PLC.

System design

Each isolated system requires one IRDH575 for ground fault detection and location control. Up to 90 EDS46... devices can be interconnected to the IRDH575. Each EDS device

can monitor up to 12 separate channels. An optional EDS30.... portable ground fault location system can be used in conjunction with the IRDH575/EDS46... system.

Features

• Universal application in 3(N)AC, AC/DC

and DC ungrounded systems 20…575

V/340…760 V

• Response range 1 kΩ…10 MΩ

• Info key for the indication of various

parameters and the system leakage

capacitance

• Comprehensive self-monitoring function

including system fault alarm relay

• Internal/external test and reset button

• Two separate alarm relays, operating

normally energized or normally de-energized

• Backlit LCD display

• RS-485 interface

• Data memory, system disconnection and

0/4…20mA current output

• Extendable to ground fault

location system for 1080 circuits

• Adjustable test current for ground fault

location

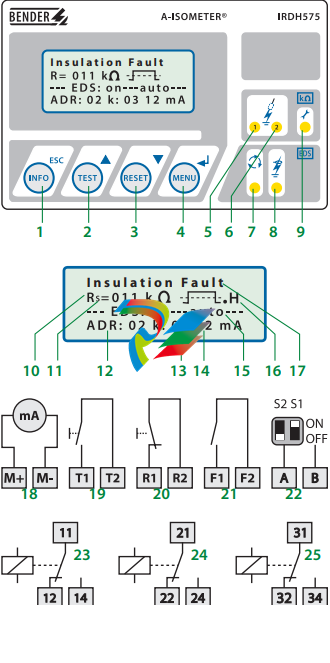

1 - INFO key: Displays pertinent system information

ESC key: Goes back a step inside device's menu

2 - TEST button: Activates self-test

Arrow up key: Scrolls down inside device's menu

3 - RESET button: Resets device

Arrow down key: Scrolls down inside device's menu

4 - MENU key: Activates device's internal menu

Enter key: Confirm change inside device's menu

5 - Alarm LED 1 lights: Insulation fault, warning level reached

6 - Alarm LED 2 lights: Insulation fault, alarm level reached

7 - EDS LED lights: Indicates ground fault location is active

8 - EDS alarm LED lights: Indicates EDS ground fault location device is in alarm

9 - LED lights: Indicates system fault alarm

10 - Real-time measurement of insulation resistance in kΩ

11 - Additional information - "s" displayed when device has begin a

new measurement

12 - Active when EDS4… is connected and in alarm; indicates

address of EDS4… in alarm

13 - Active when EDS4… is connected and in alarm; indicates

channel of EDS4… in alarm

14 - Active when EDS4… is connected and in alarm; indicates

strength of test signal detected by the channel in alarm (mea

sured in mA or µA)

15 - Active when EDS4… is connected. Displays mode of operation
