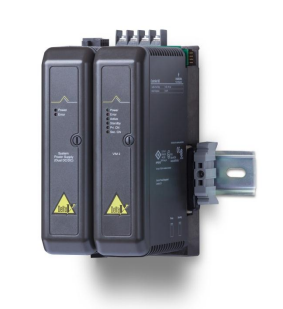

EMERSONM-series Virtual I/O Module 2

Control and Information Protocol (CIP) as defined in the

Ethernet/IP Specification from Open DeviceNet Vendor

Association and ControlNet International.

The VIM2 Ethernet/IP Scanner Class Driver provides:

 Ethernet/IP Scanner Class (originator)

functionality

 UCMM (unconnected) messaging client and

server Class 3 (connected) messaging client and

server, including encapsulated DF1 message

Class 1 (I/O) connection client and server

DeltaV Licensing Guidelines

DeltaV Software Licensing Requirements (DST count) will

be impacted by DeltaV Module configuration use of VIM2

registers in the same way as Serial Card registers. The

following guidelines can be applied:

 A DeltaV Serial Card data set can contain up to 100

values (a value can be any Boolean, 8-bit or 16-bit

number), and up to16 data sets are supported by

each of the 2 ports on the serial card. If the data set

registers are configured as floating point or 32-bit

values, then the maximum value is 50. However, the

serial device, in general, limits the total capacity of the

interface.

 Each data set counts as one DST as long as a single

module references all values in the data set. If

multiple modules reference values in a data set, then

the DST count for the data set is equal to the number

of modules referencing the data set.

 Values used in modules containing control function

blocks will be counted as Control DSTs.


