Vibro-meterGSI127 galvanic separation unit

KEY FEATURES AND BENEFITS

• From the vibro-meter ® product line

• Power supply for sensors and/or signal

conditioners with a current output or a

voltage output

• 4 kVRMS galvanic separation between the

sensor side and the monitor side

• 50 VRMS galvanic separation between the

power supply and the output signal

(floating output)

• High rejection of frame voltage

• μA to mV transfer function for current-signal

transmission over longer distances

• V to V transfer function for voltage-signal

transmission over shorter distances

• Available in standard versions and Ex versions

certified for use in potentially explosive

atmospheres (hazardous areas)

• Compatible with all vibro-meter

sensors / measurement chains

• Also compatible with industry-standard IEPE

sensors and 4 to 20 mA loop-powered sensors,

including vibration sensors/transmitters

• No ground connection needed

KEY BENEFITS AND FEATURES (cont’d)

• Suitable for use in functional safety contexts:

SIL 2 in accordance with IEC 61508

• Removable screw-terminal connectors

• DIN-rail mounting

APPLICATIONS

• All vibro-meter sensors / measurement chains

• Safety-related applications

DESCRIPTION

The GSI127 is a galvanic separation unit from

Parker Meggitt’s vibro-meter ® product line. It is

designed for operation with the signal conditioners,

charge amplifiers and electronics (attached or

integrated) used by various vibro-meter

measurement chains and/or sensors.

Compatible devices include the IPC707 signal

conditioners (charge amplifiers) used by CAxxx

piezoelectric accelerometers and CPxxx dynamic

pressure sensors (and older IPC704 signal

conditioners), the IQS9xx signal conditioners used by

TQ9xx proximity sensors (and older IQS4xx signal …

Information contained in this document may be subject to export control regulations of the European Union, USA or other countries. Each

recipient of this document is responsible for ensuring that the transfer or use of any information contained in this document complies with all

relevant export control regulations. ECN N/A.

DESCRIPTION (continued)

conditioners), the attached or integrated electronics

used by CExxx piezoelectric accelerometers, and the

integrated electronics used by the VE210 velocity

sensor. The GSI127 is also compatible with industrystandard IEPE (integrated electronics piezo electric)

sensors such as the CE620, CE630 and PV660

vibration sensors, and 4 to 20 mA loop-powered

sensors such as the CE687 and PV685 vibration

sensors.

Note: The variant of the GSI127 defined by the

ordering option code B11 is compatible with IQS91x

signal conditioners and/or industry-standard

4 to 20 mA loop-powered sensors/transmitters.

The GSI127 galvanic separation unit is a versatile unit

that can be used for the transmission of highfrequency AC signals over long distances in

measurement chains using current-signal

transmission or as a safety barrier unit in

measurement chains using voltage-signal

transmission. More generally, it may be used to

supply any electronic system (sensor side) having a

consumption of up to 21 mA.

The GSI127 also rejects a large amount of the frame

voltage that can introduce noise into a measurement

chain. (Frame voltage is the ground noise and AC

noise pickup that can occur between the sensor case

(sensor ground) and the monitoring system

(electronic ground)). In addition, the design of its

internal power supply results in a floating output

signal, thereby eliminating the need for an additional

external power supply such as a APF19x.

Ex versions of the GSI127 are certified to be installed

in an Ex Zone 2 (“Ex ec”) when supplying

measurement chains installed in Ex environments up

to Zone 0 (“[ ia Ga ]”). These units can also eliminate

the need for additional external Zener barriers.

The GSI127 housing features removable screwterminal connectors that can unplugged from the

main body of the housing to simplify installation and

mounting. It also features a DIN-rail mounting

adaptor for direct mounting on a DIN rail.

In addition, the GSI127 incorporates diagnostics that

automatically and remotely indicates the health/

status of the measurement chain so you always know

when measurements can be trusted. The diagnostics

(SIL 2 “by design”) bring enhanced reliability and

significant risk reduction, making the GSI127 suitable

for use in safety-related applications (functional

safety contexts).

For specific applications, contact your local

Parker Meggitt representative.

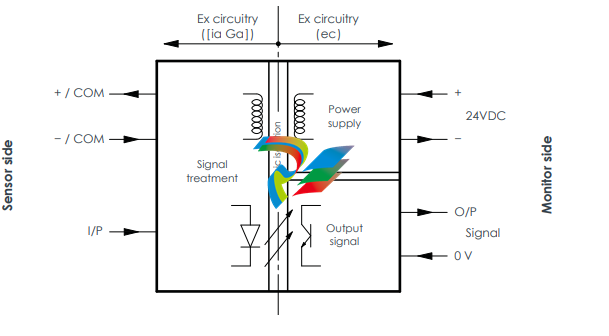

BLOCK DIAGRAM

SPECIFICATIONS

Environmental

General

Temperature

• Operating : −20 to 70°C (−4 to 158°F)

• Storage : −40 to 85°C (−40 to 185°F)

Humidity

• Operating : 90% max. non-condensing

• Storage : 95% max. non-condensing

Protection rating

(according to IEC 60529)

: IP20.

Note: The GSI127 is suitable for indoor use only unless it is installed in

an industrial housing or enclosure that ensures a higher level of
