EMERSONS-series Mass Connection Solutions

„ Fast, easy and error-free cabinet wiring

„ Modular design, improves reliability

„ Lowers overall termination footprint

„ Significant labor and work reduction

„ Loop disconnect feature for Analog Signals

„ LED’s and replaceable Fuses for discrete Signals

„ Termination Fault Detection between discrete

traditional I/O Cards and Mass Connection

Board Signals

Introduction

The DeltaV™ S-series Mass Connection Solutions provide fast,

easy and reliable connection from field devices to DeltaV

simplex and redundant, high density traditional I/O Cards,

while providing several wiring options.

The modular design of the Mass Connection Boards further

helps to lower the overall termination footprint due to flexible

mounting capabilities.

Ribbon cable connectors will be used to connect the Mass

Connection Boards easily to the simplex or redundant, high

density traditional I/O Cards, where loop and termination

fault diagnostic information are available.

Benefits

Fast, easy way to connect terminals. The DeltaV simplex and

redundant high density traditional I/O Cards can be easily wired

to the Mass Connection Boards within seconds.

No tools are necessary to connect the ribbon cables, so you

can significantly reduce labor costs by eliminating additional

cabinet wiring.

Modular design, improves reliability. The modular designed

Mass Connection Boards are more reliable than other traditional

solution, by splitting the Signals up, to a max of 16 Signals.

Optimization of space. The DeltaV S-series Mass Connection

Solutions offer significant space advantages by integrating all

needed cabinet wiring components on one board.

Significant labor work reduction. No need for cross wiring

between I/O cards and Mass Connection Boards anymore, due

to flexible 1:1 ribbon cable based connectivity.

Significant cost reduction. Since off-the-shelf Ribbon cables

can be used inside a Cabinet with a max. Length of 3 m,

significant cost reductions can be achieved.

In some cases, longer cables are needed for connections

between two Cabinets. 6m long Standard Round Ribbon Cables

can be ordered to be used with the Mass Connection Solutions.

Loop Disconnect Features for all Signal Types. For each

Signal Type, a loop disconnect feature is available on the Mass

Connection boards.

On the AI/AO Mass Connection boards, this is realized using a

specific knife edge disconnect setup with 2mm test holes, in

this way maintenance or calibration work can be performed

without disturbing the 4-20 mA loop based Signal.

On the DI/DO Mass Connection boards, this is realized using

replaceable fuses. In this way, loop power to the field can be

easily disconnected, during maintenance activities.

Termination Fault Detection. With the DI/DO Mass

Connection boards, power or cable failures can now be

detected by DeltaV Diagnostic when used with the new

Plus Cards.

Product Description

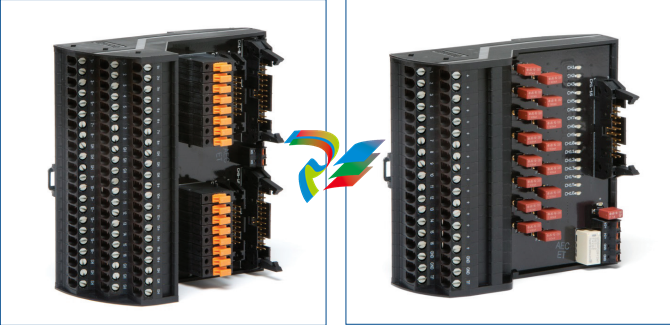

AI/AO Plus Mass Connection Board

The AI/AO Plus Mass Connection Board connects to the new

S-series Plus (simplex or redundant) AI, 16 Channel and AO,

16 Channel cards by using either two ribbon cables with 24-Pin

connectors or the 48-Pin special Round Ribbon Cable, which is

required if the distance is longer than 3m.

Up to 16 Analog, 4-20 mA HART based Field devices can be

connected to the AI/AO Plus Mass Connection Boards by screw

terminals. 2- And 4- wire Devices are supported by the

3- row screw architecture, so you can choose on a Channel

by Channel basis.

For each Channel, a loop disconnect feature with 2mm test

holes is implemented. In this way, maintenance or calibration

work can be performed at any time, without disturbing the

4-20 mA loop based Signal.

Please refer to the Cross Reference List for your application.

DI Mass Connection Board (for simplex DI Card)

This DI Mass Connection Solution (set of two boards) connects

to the existing simplex S-series DI, 32 Channel, 24 VDC, Dry

Contact cards by using either two ribbon cables with 20-Pin

connectors or two of the 20-Pin standard Round Ribbon Cable,

which is required if the distance is longer than 3m.

Up to 16, 24 VDC based discrete input Signals can be connected

to each of the DI Mass Connection Boards by screw terminals.

Dry Contact or 24 VDC Isolated Field Signals are supported by

the 2- row screw architecture.

Yellow LED’s are providing status Indication for each Channel,

while the replaceable fuses can be used to disconnect loop

power to the field, during maintenance activities.

Please refer to the Cross Reference List for your application.

DI Plus Mass Connection Board (for DI Plus Card)

The DI Plus Mass Connection Solution (set of two boards)

connects to the new redundant S-series Plus DI, 32 Channel,

24 VDC, Dry Contact cards by using either two ribbon cables

with 20-Pin connectors or two of the 20-Pin standard Round

Ribbon Cable, which is required if the distance is longer
