Low-Low Limit Lower Range Limit (LRL)

Limits hysteresis 0.5 % of output scale

PV filter 0 s

Address (set by local key) 126

Tag PI000 (up to 32 alphanumeric

characters; only 8 visible on

display)

Optional LCD display PV in kPa; output in percentage

on bargraph

Any or all the above configurable parameters, including

the range values which must be the same unit of measure,

can be easily changed by a PC running the configuration

software with DTM for 266 models.The transmitter

database is customized with specified flange type and

material, O–ring and drain/vent materials and meter code

option.

Custom configuration (option N6)

The following data may be specified in addition to the

standard configuration parameters:

Descriptor 32 alphanumeric characters

Message 32 alphanumeric characters

Date Day, month, year

...Specification – configuration

Transmitter with FOUNDATION Fieldbus

communication

Standard configuration

Transmitters are factory calibrated to customer’s

specified range. Calibrated range and tag number are

stamped on the tag plate. If a calibration range and tag

data are not specified, the transmitter will be supplied

with the plate left blank and the analog input function

block FB1 is configured as follows:

Measure Profile Pressure

Engineering Unit kPa

Output scale 0 % Lower Range Limit (LRL)

Output scale 100 % Upper Range Limit (URL)

Output Linear

Hi-Hi Limit Upper Range Limit (URL)

Hi Limit : Upper Range Limit (URL)

Low Limit Lower Range Limit (LRL)

Low-Low Limit Lower Range Limit (LRL)

Limits hysteresis 0.5 % of output scale

PV filter time 0 s

Tag PI000 (up to 32 alphanumeric

characters; only 8 visible on

display)

Optional LCD display PV in kPa; output in percentage

on bargraph

The analog input function block FB2 and FB3 are

configured respectively for the sensor temperature

measured in °C and for the static pressure measured in

MPa.

Any or all the above configurable parameters, including

the range values, can be changed using any host

compliant to FOUNDATION fieldbus. The transmitter

database is customized with specified flange type and

material, O–ring and drain/vent materials and meter code

option.

Custom configuration (option N6)

The following data may be specified in addition to the

standard configuration parameters:

Descriptor 32 alphanumeric characters

Message 32 alphanumeric characters

Date Day, month, year

Dimensions

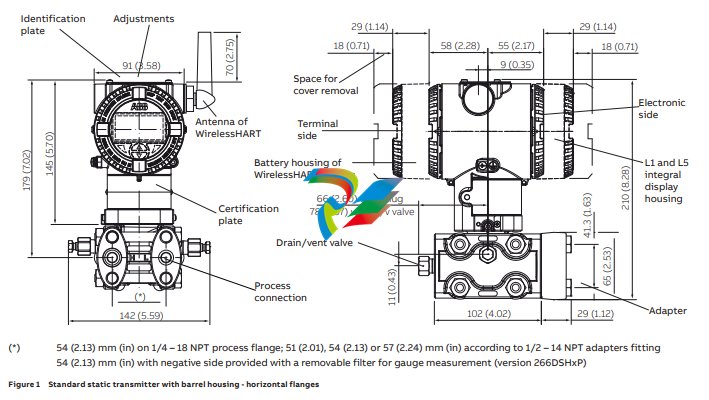

(not for construction unless certified) – dimensions in mm. (in.)
