EMERSONAMS 2140 Machinery Health™ Analyzer

From:EMERSON | Author:LIAO | Time :2025-08-18 | 501 Browse: | Share:

Copyright

© 2019 by Emerson. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form by any means without the written permission of Emerson.

Disclaimer

This manual is provided for informational purposes. EMERSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS

MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Emerson shall not be liable for errors, omissions, or inconsistencies that may be contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is

subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is

not all-inclusive and cannot cover all unique situations.

Patents

The product(s) described in this manual are covered under existing and pending patents.

1 AMS 2140 Machinery Health Analyzer

Topics covered in this chapter:

• AMS 2140 Machinery Health Analyzer overview

• User Guide overview

• Documentation conventions

• Precautions and general maintenance

• Technical Support and Customer Service

1.1 AMS 2140 Machinery Health Analyzer overview

The AMS 2140 Machinery Health Analyzer is a portable vibration analyzer that lets you

quickly and easily collect data from rotating equipment in process plants, do an on-site

analysis of the machine, and export results to the AMS Suite: Machinery Health Manager

software for storage and further analysis. You can also collect data using PeakVue™

technology. The analyzer supports up to four channels to make collecting data faster and

more efficient.

You can add additional programs to the analyzer to further expand your analysis and

troubleshooting capabilities. Add the Advanced Analyze, Balance, Advanced Laser Alignment,

ODS/Modal, and Advanced Transient programs at any time.

1.2 User Guide overview

The AMS 2140 Machinery Health Analyzer User Guide is written for Vibration Analysts,

Reliability Data Collection Technicians, and Reliability Engineers who monitor rotating

machines in a process plant environment.

The User Guide describes how to set up the analyzer, take route and job-based

measurements, review the data, and transfer the data to AMS Machinery Manager for

storage and analysis. The User Guide is written for the single-channel, dual-channel, and

four-channel versions of the AMS 2140. Any differences are noted.

1.3 Documentation conventions

The following conventions are used throughout:

Note

A note paragraph contains special comments or instructions.

CAUTION!

A caution paragraph alerts you to actions that can have a major impact on the equipment or

stored data.

WARNING!

A warning paragraph alerts you to actions that can have extremely serious consequences for

equipment and/or personnel.

1.4 Precautions and general maintenance

Any maintenance, repair, or replacement of components not listed below must be

performed by specially trained personnel at Emerson authorized service centers. Any

damage to the product caused by misuse, abuse, neglect, carelessness or modifications

performed by anyone other than Emerson may void the warranty.

Following the precautions listed below, you can perform common maintenance

procedures on the AMS 2140 and its accessories.

WARNING!

• An electrostatic discharge is possible when you clean the equipment exterior. When

cleaning the equipment exterior, do not use any abrasive or corrosive chemicals or

materials. Do not use petroleum distillates and ketone solvents, for example, acetone,

gasoline and kerosene. Use a dry, lint-free towel or cloth dampened with a mild soap

and water solution. Clean the analyzer only in a non-hazardous area.

• Charge, remove, and replace the battery pack only in a non-hazardous area.

• Use only Emerson’s battery packs with the AMS 2140. The analyzer will not function if a

non-Emerson battery pack is used. Lithium-Ion batteries have very specific charging

requirements. Emerson-supplied power supplies and chargers are designed to work

with Emerson’s Lithium-Ion battery pack. Using battery packs other than Emerson’s

approved battery packs could not only void the warranty, but could also be hazardous.

Precautions

• To prevent permanent damage to the touchscreen on the AMS 2140, never use

sharp objects or excessive pressure with your fingers or stylus. Lightly tap the screen.

• Use only Emerson’s power supplies and chargers approved for use with the AMS

2140 and Emerson’s battery packs. Using any power supplies and chargers other

than Emerson’s approved power supplies and battery packs could not only void the

warranty, but will also most likely damage the analyzer or the battery pack.

• Do not change or remove the battery pack in the AMS 2140 with the power supply

connected to the analyzer. The AMS 2140 or battery pack may be damaged.

• Do not use Emerson’s battery packs, power supplies, and chargers with any product

other than their corresponding Emerson product.

When charging the AMS 2140 with the battery pack or the battery pack by itself,

ensure the ambient temperature where charging is occurring is 50° F to 95° F (10° C

to 35° C).

• When operating the AMS 2140 with the battery pack, ensure the ambient

temperature where the analyzer is being used is -4° F to 122° F ( -20° C to 50° C).

Prevent battery degradation

When storing the AMS 2140 with the battery pack or storing the battery pack by itself for a

prolonged period of time:

• Ensure the ambient temperature where the battery pack is located is -4° F to 95° F

( -20° C to 35° C). Due to the chemical composition of Lithium-Ion battery

technology, over time there will be some degradation that results in a reduced

charge capacity and performance. This degradation is unavoidable and irreversible.

Prolonged storage at temperatures outside this range, especially temperatures

above the high end, speeds up the degradation process.

• Disconnect the power supply from the AMS 2140 or the battery pack.

• When storing for 1–3 months, Emerson recommends removing the battery pack

from the AMS 2140.

• When storing the battery for longer than three months, contact Technical Support

to learn how to enter storage mode. Storage mode protects the battery during long

term storage. In storage mode, the analyzer and battery are non-functional. The

analyzer does not power on and the battery LEDs do not operate. Connect the

charger to the unit to reactivate the battery.

Note

If you do not enter storage mode, ensure the battery capacity is approximately 40 percent

and periodically recharge the battery pack (to approximately 40 percent charge capacity)

during storage to ensure the battery does not drain to low levels.

Prevent damage

To prevent damage to the analyzer:

• Do not connect a signal larger than 0 to 24 volts into the Accel input of the AMS

2140.

• Do not connect a signal larger than +/- 24 volts into the Volts / Tach input of the

AMS 2140.

1.5 Technical Support and Customer Service

When you contact Technical Support, be ready with a screen capture of the error message

and details such as when and how the error occurred.

Hardware Technical Help

Have the number of the current version of your firmware ready when you call. To view the

firmware version of the AMS 2140, select Home > ALT > F1 Version.

Software Technical Help

Provide the software version numbers of both your Microsoft® Windows operating system

and AMS Machinery Manager, and your AMS Machinery Manager serial number. To find

AMS Machinery Manager version and serial numbers, select Help > About.

Be at your computer when you call. We can serve you better when we can work through

the problem together.

Software Technical Support

Emerson provides technical support through the following for those with an active support

agreement:

• Telephone assistance and communication via the Internet.

• Mass updates that are released during that time.

• Interim updates upon request. Please contact Emerson Technical Support for more

information.

Introduction to the analyzer

Topics covered in this chapter:

• Standard equipment

• Front view

• Top view

• Turn on the analyzer for the first time

• Use the stand

• Attach the shoulder strap

• Battery pack

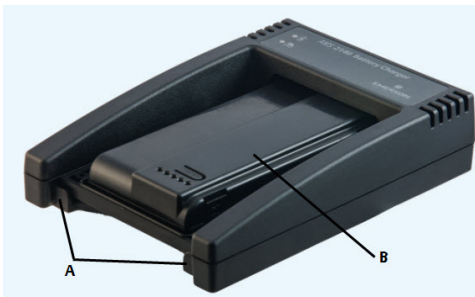

• External AMS 2140 Battery Charger

• Turn the analyzer on or off

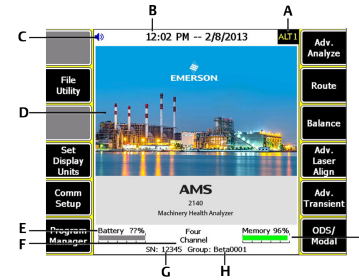

• Home screen

• Backlight

• Touchscreen

• Menu navigation

• Settings

• Memory card

• Bluetooth

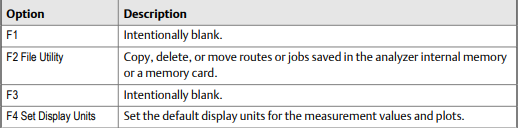

• Utilities

• Clean the analyzer

• AMS 2140 Four-Channel Input Adapter

• Multiple inputs

• AMS 2140 for use in hazardous locations

2.1 Standard equipment

Unpack the analyzer and compare the contents of the package to the list below. If you find

a discrepancy, contact your local sales representative immediately.

• Firmware media

• Micro USB cable to connect to AMS Machinery Manager

• Power supply to charge the battery pack

• Screen protector

• Shoulder strap

Note

The AMS 2140 does not support cables with 25-pin connectors or cables that connect to the Volts/

Tach input from previous Emerson vibration analyzers.

2.2 Front view

Figure 2-1: AMS 2140 front panel

A. Home key—Return to the Home screen from any program.

B. Reset key—Return to the main menu in a program.

C. Function keys—Display menu options.

D. Enter key—Select a menu or option.

E. Keypad backlight key—Turn on the backlight under the keys. (1)

F. LCD backlight key—Set the backlight for the LCD touchscreen.

G. Help key—Display Help text for a key.

H. Power key—Turn the analyzer on or off, or put the analyzer in standby.

I. Battery LED—Green light if the battery pack is charged; amber when charging.

J. Status LED—Blue light flashes each time you press a key or option, blinks in power save mode, and

remains solid in standby mode.

K. Arrow keys—Move through menus.

L. ALT key—Display an alternate screen, if available.

M. Back key—Back up to the main menu in a program

Top view

Figure 2-2: Connectors

A. Power supply connector.

B. Ethernet port.

C. Micro USB port.

D. Wireless LED.

E. Bluetooth® LED (not present on newer versions).

CAUTION!

To prevent damage to the analyzer:

• Do not connect a signal outside the range of 0 to 24 volts into the Accel input of the AMS

2140.

• Do not connect a signal outside the range of +/- 24 volts into the Volts / Tach input of the

AMS 2140.

2.4 Turn on the analyzer for the first time

Activate the battery pack before turning on the analyzer for the first time. The battery pack

is shipped in storage mode to protect the battery charge. Connect the provided power

supply cord into an outlet and to the analyzer to activate the battery pack.

Procedure

1. Connect the provided power supply cord into an outlet and to the analyzer.

Note

Refer to precautions for the battery pack and power adapter.

The Battery LED is amber to indicate the battery pack is charging. The analyzer is

activated.

2. Press and hold the power key to turn the analyzer on.

The Home screen appears when you turn on the analyzer. The time and date are set

to a default value.

3. To set the time and date, press Home > ALT > F3 Set Time.

Use the stand

1. To put the stand in the upright position, grab the stand and pull up until the stand

locks.

2. To release the stand, place the analyzer face down, grab the base of the stand, and

gently pull.

The lock releases, and you can push the stand toward the analyzer.

Attach the shoulder strap

1. Press and hold the button on the strap connector, and insert it into the connectors

on the sides of the analyzer or the AMS 2140 Four-Channel Input Adapter, if

attached.

2. To release the strap, press and hold the button on the connector and then pull.

Battery pack

A rechargeable Lithium-Ion battery pack powers the analyzer. A typical charge should last

for more than 8 hours of continuous use. The analyzer displays a low-battery warning

when the remaining charge reaches a set level; the default is 15 percent. If the battery

pack fully discharges, you do not lose any data or settings.

The battery pack is shipped in storage mode to protect the battery charge. Refer to

Section 2.4 to activate the battery pack.

You do not need to discharge or calibrate the battery pack. The hardware optimizes

battery pack performance. Contact technical support if you experience any problems or

for instructions on how to store or replace the battery pack.

WARNING!

Use only Emerson battery packs with the AMS 2140. The analyzer will not function if a nonEmerson battery pack is used. Lithium-Ion batteries have very specific charging requirements.

Emerson power supplies and chargers are designed to work with the Emerson Lithium-Ion

battery pack. Using battery packs other than approved Emerson battery packs could not only

void the warranty, but could also be hazardous.

2.7.1 Access the battery pack

The battery pack is located on the back of the analyzer. To access the battery, remove the

six screws that attach it to the analyzer

Figure 2-4: Six battery pack screws

WARNING!

Remove the battery pack only in a non-hazardous area.

2.7.2 Battery pack and power supply precautions

Understand and follow the precautions below before using the battery pack and power

supply.

• Do not use Emerson’s battery packs, power supplies, and chargers with any product

other than their corresponding Emerson product.

• Use only Emerson’s power supplies and chargers approved for use with the AMS

2140 and Emerson’s battery packs. Using any power supplies and chargers other

than Emerson’s approved power supplies and battery packs could not only void the

warranty, but will also most likely damage the analyzer or the battery pack.

• Do not change or remove the battery pack in the AMS 2140 with the power supply

connected to the analyzer. The AMS 2140 or battery pack may be damaged.

• When charging the AMS 2140 with the battery pack or the battery pack by itself,

ensure the ambient temperature where charging is occurring is 50° F to 95° F (10° C

to 35° C).

• When operating the AMS 2140 with the battery pack, ensure the ambient

temperature where the analyzer is being used is -4° F to 122° F ( -20° C to 50° C).

WARNING!

• Use only Emerson’s battery packs with the AMS 2140. The analyzer will not function if a

non-Emerson battery pack is used. Lithium-Ion batteries have very specific charging

requirements. Emerson-supplied power supplies and chargers are designed to work

with Emerson’s Lithium-Ion battery pack. Using battery packs other than Emerson’s

approved battery packs could not only void the warranty, but could also be hazardous.

• Charge, remove, and replace the battery pack only in a non-hazardous area.

2.7.3 View the battery charge level

View the remaining charge level from the analyzer Home screen or from the LEDs on the

battery pack.

Procedure

Do one of the following:

• From the Home screen, view the remaining battery charge on the lower left side of the

screen.

• Press the button on the inside of the battery pack. Each LED indicates approximately 20

percent remaining charge

Figure 2-5: Check the remaining charge from the battery pack

Note

If the battery pack has been placed in storage mode, the LEDs do not operate.

2.7.4 Charge the battery pack

The analyzer is fully operational during charging. As a best practice, charge the battery

pack frequently. Emerson recommends you charge the battery pack the night before you

intend to use it.

WARNING!

• Use only Emerson-supplied power supplies and chargers approved for use with the AMS

2140 and Emerson battery packs. Using any power supplies and chargers other than

approved Emerson power supplies and battery packs could not only void the warranty,

but will also most likely damage the analyzer or the battery pack.

• When charging the AMS 2140 with the battery pack or the battery pack by itself, ensure

the ambient temperature where charging is occurring is 50° F to 95° F (10° C to 35° C).

• Charge the battery pack only in a non-hazardous area.

Procedure

1. Remove the rubber plug on the top of the analyzer.

2. Insert the power supply connector into the analyzer. The analyzer can be powered

on or off.

Plug the AC connector on the power supply into a standard AC outlet, ranging from

100 VAC to 250 VAC, 50–60 Hz. A full recharge may take four hours.

The back of the analyzer may feel warm during charging. The power supply can

remain connected to the analyzer after charging completes. You cannot overcharge

the battery pack.

2.7.5 Battery LED indicates charging status

The Battery LED on the front of the analyzer shows the progress when charging the battery

pack. The LED is located to the right of the Power key.

Color Battery pack status

Amber Charging

Green Fully charged

2.7.6 Remove or change the battery pack

The analyzer gives you unlimited usage by changing the battery pack with a fully charged

spare battery pack. When you change the battery pack, the data saved in the analyzer is

not affected.

CAUTION!

Do not remove or change the battery pack with the power supply connected to the analyzer.

Damage may occur to the analyzer or the battery pack.

WARNING!

• Use only Emerson’s battery packs with the AMS 2140. The analyzer will not function if a

non-Emerson battery pack is used.

• Remove or change the battery pack only in a non-hazardous area.

Procedure

1. Turn off the analyzer and remove the power supply, if connected.

2. Set the analyzer face down on a level surface.

3. Lift up the stand.

4. On the back of the analyzer, remove the six screws that attach the battery pack to

the analyzer.

5. Carefully remove the battery pack from the battery compartment.

6. Insert the new battery pack and ensure it aligns with the contacts inside the battery

compartment on the analyzer.

7. Insert and tighten the six screws on the back panel.

 Battery pack maintenance

To prevent any significant loss of the battery capacity when storing the analyzer with the

battery pack or storing the battery pack by itself for a prolonged period of time:

• Ensure the ambient temperature where the battery pack is located is -4° F to 95° F

( -20° C to 35° C). Due to the chemical composition of Lithium-Ion battery

technology, over time there will be some degradation that results in a reduced

charge capacity and performance. This degradation is unavoidable and irreversible.

Prolonged storage at temperatures outside this range, especially temperatures

above the high end, speeds up the degradation process.

• Disconnect the power supply from the AMS 2140 or the battery pack.

• When storing for 1–3 months, Emerson recommends removing the battery pack

from the AMS 2140.

• When storing the battery for longer than three months, contact Technical Support

to learn how to enter storage mode. Storage mode protects the battery during long

term storage. In storage mode, the analyzer and battery are non-functional. The

analyzer does not power on and the battery LEDs do not operate. Connect the

charger to the unit to reactivate the battery.

Note

If you do not enter storage mode, ensure the battery capacity is approximately 40 percent

and periodically recharge the battery pack (to approximately 40 percent charge capacity)

during storage to ensure the battery does not drain to low levels.

2.7.8 Conserve battery pack power

• Set timers to automatically put the analyzer in standby or turn off the backlight after

a set period of inactivity, such as not pressing any keys or not collecting data. You

can also put the analyzer into standby mode by quickly pressing the power key.

• Set the LCD backlight intensity to Medium. If you use the High setting, Emerson

recommends setting the backlight timer to 30 seconds.

These options are available on the General Analyzer Setup screen. Press Home > ALT > F2

General Setup.

The analyzer uses several power modes, or states, to conserve battery pack power.

Reference Table 2-1 when setting options on your analyzer that impact battery pack

power.

External AMS 2140 Battery Charger

The external AMS 2140 Battery Charger lets you charge the battery pack separately from

the analyzer. You can charge the battery pack indoors, or you can use the automobile

power supply cord to charge the battery in your car. You can charge one battery pack at a

time using the external AMS 2140 Battery Charger. A full recharge may take three hours.

To power the external AMS 2140 Battery Charger, insert the power supply cord into the

connector on the back of the charger.

Figure 2-6: Power supply connector and air vents

A. Power supply connector

B. Air vents

WARNING!

• To prevent overheating, ensure the air vents on the back and sides of the charger are

clear when charging a battery pack. To ensure proper airflow, allow several inches of

clearance around the charger and occasionally inspect the charger vents. Remove any

foreign material, such as dust, that may have settled around the vents.

• To prevent damage to the charger and battery pack, do not charge a battery pack in an

extremely hot or cold location, such as inside an automobile during summer or winter

conditions. If the ambient temperature exceeds normal and safe operating limits of 50° F

to 95° F (10° C to 35° C), charging stops. In most situations, charging automatically

resumes when the ambient temperature is within normal and safe operating limits.

• Use the external AMS 2140 Battery Charger only in a non-hazardous area.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

LEDs

Figure 2-7: LEDs on the front of the charger

A. Battery LED—Display a green light if the battery pack is fully charged, or an amber LED if the battery

pack is charging.

B. AC Power—Display a green light if the charger is being powered.

Charge the battery pack using the external AMS 2140

Battery Charger

You can charge your battery pack separately from the analyzer. You can use the charger

indoors, or you can use the automobile power supply cord to charge your analyzer in your

car. You can charge one battery pack at a time. A full recharge may take 3 hours.

Note

If the battery pack is in storage mode, placing the battery pack on the charger will activate the

battery pack.

WARNING!

• Use only Emerson-supplied power supplies and chargers approved for use with the AMS

2140 and Emerson battery packs. Using any power supplies and chargers other than

approved Emerson power supplies and battery packs could not only void the warranty,

but will also most likely damage the analyzer or the battery pack.

• Ensure the air vents on the external AMS 2140 Battery Charger are clear and uncovered.

• When charging the AMS 2140 with the battery pack or the battery pack by itself, ensure

the ambient temperature where charging is occurring is 50° F to 95° F (10° C to 35° C).

• Charge the battery pack only in a non-hazardous area.

Prerequisites

Remove the battery pack from the analyzer. See Section 2.7.6.

Procedure

1. With the metal contacts on the battery pack facing up, lift the battery pack over the

raised edges and then slide the battery pack into the charger.

Figure 2-8: Battery pack inserted into the external AMS 2140 Battery Charger

A. Raised edges

B. Battery pac

Insert the power supply cord into an outlet and into the connector on the back of

the external AMS 2140 Battery Charger.

Charging begins and the LED is amber. The battery pack is fully charged when the

battery LED on the external AMS 2140 Battery Charger changes from amber to

green. To check the progress, press the button on the battery pack next to the 5

LEDs. Each LED represents approximately 20 percent charge

To remove the battery pack, lift up the battery pack to clear the two raised edges,

and then slide out the battery pack

Turn the analyzer on or off

You can set the number of seconds to hold the power key to shut down the analyzer. See

Section 2.14.6.

Procedure

Press and hold the power key to turn the analyzer on or off.

The Home screen appears when you turn on the analyzer. If you were working in a

program before shutting down, that program appears.

2.9.1 Hard reboot

Do a hard reboot only if the analyzer is unresponsive.

Procedure

Press and hold the power key for approximately 10 seconds until the analyzer shuts

down.

2.9.2 Standby

Standby is similar to the standby mode on a computer. The analyzer is powered on, but the

backlight is off to conserve battery power. You can use standby mode to lock the

touchscreen and keys when you are carrying the analyzer. You can manually put the

analyzer in standby, or you can wait for the standby timer. See Section 2.14.2. The standby

timer also shuts off the keypad backlight.

Note

After 60 minutes in standby, the analyzer shuts down. You do not lose any data when this occurs.

Procedure

1.

To enter standby, quickly press (1 second) the power key , or wait for the

standby timer to expire.

The LCD backlight and keypad backlight turn off. The blue LED on the analyzer’s

front panel is lit.

2.

To leave standby, quickly press the power key .

Home screen

The Home screen appears when you turn on the analyzer by pressing the power key.

Figure 2-9: Home screen

A. An alternate screen (ALT) includes additional options.

B. Current time and date.

C. Bluetooth device connection status (headphones connection icon shown).

D. Default splash screen.

E. Remaining battery pack charge.

F. Number of supported channels for the analyzer.

G. Serial number.

H. Group number for updating multiple analyzers at one site.

I. Available internal memory

Home screen programs and settings

The Home screen has two alternate screens that display programs and settings. ALT1 or

ALT2 appears at the top of the screen and the function keys are outlined in yellow. To

switch ALT screens, press the ALT key or the ALT text on the touchscreen.

ALT1 keys

Backlight

2.11.1 Set the LCD backlight

By default, the analyzer uses the Auto backlight mode to automatically adjust the backlight

intensity based on the light in your environment. You can disable the automatic

adjustments. You can set a timer to disable the backlight after a period of inactivity. See

Section 2.14.3.

Note

A higher backlight intensity decreases the battery pack life. For optimum battery pack life, set the

backlight to the medium setting.

Change the backlight using the LCD backlight key or the General Setup menu on the Home

screen.

Procedure

1.

To set the backlight using the LCD backlight key , press the key to select a

setting.

Each time you press the key, the backlight changes. The default is Auto.

2. To set the backlight from the Home screen:

a. Press Home > ALT > F2 General Setup > F8 Set Backlight.

b. Use the up and down arrow keys to select a setting.

c. Press Enter.

2.11.2 Set the keypad backlight

If your area has low light, turn on the keypad backlight to illuminate the analyzer’s keys.

Note

To comply with relevant safety certifications, the AMS 2140 labeled “ATEX/IECEx Zone 2” does not

have a keypad backlight.

Procedure

Press the keypad backlight key to turn the light on or off.

2.12 Touchscreen

The touchscreen and function keys let you access the menu options and enter text. If the

touchscreen does not respond accurately, calibrate the touchscreen.

WARNING!

Clean the touchscreen only in a non-hazardous area. An electrostatic discharge is possible

when you clean the equipment exterior. Do not use any abrasive or corrosive chemicals or

materials. Do not use petroleum distillates and ketone solvents, for example, acetone, gasoline

and kerosene. Use a dry, lint-free towel or cloth dampened with a mild soap and water

solution.

Note

To prevent permanent damage to the touchscreen, never use sharp objects or excessive pressure

with your fingers or stylus. Lightly tap the screen.

2.12.1 Lock or unlock the touchscreen

You can lock the touchscreen and only use the keys on the front of the analyzer to select

menus and options. Lock the screen to prevent inadvertently pressing buttons when you

carry the analyzer. You can also put the analyzer in standby to lock the touchscreen.

Procedure

Press Home > ALT > F2 General Setup > F9 Set Touch Screen to lock or unlock the screen.

If you locked the touchscreen, you can still use the buttons on the side of the screen to

select options.

2.12.2 Calibrate the touchscreen

Calibrate the touchscreen to respond to your touch. You can use your finger or a stylus.

Calibrate if the touchscreen does not respond accurately.

Procedure

1. Press Home > ALT > F2 General Setup > F10 Calibrate Touch Screen.

2. Touch in the center of each crosshair.

3. Press Enter.

2.12.3 Gestures

You can use gestures rather than pressing the keys to select menu options. The gestures

match the arrows on the corresponding analyzer keys. You can use gestures on all screens

that support the corresponding keys.

Note

You cannot use gestures when the analyzer displays the onscreen keyboard, or when Log is used for

the plot axis. The Enter gesture does not work on plots.

Tip

Use consistent pressure when you press in the middle of the touchscreen as indicated below

Onscreen keyboard

If the analyzer’s touchscreen is enabled/unlocked, the analyzer displays an onscreen

keyboard when you need to enter alphanumeric or special characters. See Section 2.12.1

for more information on locking or unlocking the touchscreen.

Note

Gestures are not supported when the analyzer displays the onscreen keyboard.

Tap the desired letter or character on the screen. The selected character is highlighted

yellow.

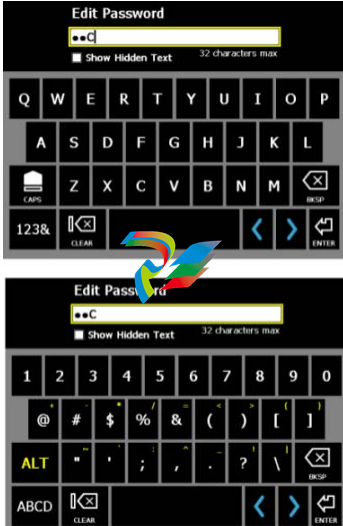

Figure 2-10: Examples of the onscreen keyboard

Menu navigation

The analyzer has a touchscreen and function keys for navigating and selecting menu

options. The menu options appear on the left and right sides of the screen and correspond

to the function keys on the analyzer. When you press a key or an option on the

touchscreen, a blue status LED flashes on the analyzer’s front panel.

To cancel or return to a previous screen, press the Back key. Press the Home key to return to

the Home screen.

2.13.1 ALT screens

Each screen displays up to 12 menu options, but additional options may be available on

alternate screens. ALT1 or ALT2 appears at the top of the screen and the function keys are

outlined in yellow. To switch screens, press the ALT key or the ALT label on the screen.

2.13.2 Entering text

If a menu option lets you enter text, an onscreen keyboard appears or the analyzer lists a

set of characters on the side of the screen. Tap the touchscreen or repeatedly press the key

until the desired character appears. Wait until the cursor moves and then enter the next

character. See Section 2.12.4 for more information about entering text using the keyboard.

Note

The onscreen keyboard appears only if the touchscreen is enabled/unlocked. By default, the

touchscreen is enabled/unlocked.

2.13.3 Display Help

Use the Help key to access information about a menu option or key.

Procedure

1.

Press the Help key .

2. Press a menu option.

The analyzer displays the Help text for that menu option.

3. Press Enter to close the Help text.

2.14 Settings

View and modify the default global settings from the Home ALT1 or ALT2 screens.


  • ALSTOM PIB1201A 3BEC0067 Power Interface Board (PIB)
  • ALSTOM PIB310 3BHB0190 Adapter Module / Printed Circuit Board (PCB)
  • ALSTOM PIB102A 3BEB0180 Communication Card / PCB Module
  • ALSTOM BGTR8HE 24491276A1004 High-Frequency Power Controller / Rack Module
  • ALSTOM AM164 Analog Output / Remote I/O
  • ALSTOM UT150-1 PID temperature controller / process control board
  • ALSTOM AL132 AL132A STO0982E01 Control Motherboard / CPU Card
  • ALSTOM AS111-1 Analog Output (AO) Module
  • ALSTOM AH116-2 Servo Drive / Control Module
  • ALSTOM V4555724-0100 Electromechanical Contactor /Power Switch
  • WATLOW 999D,999A Digital/Analog Dual-Channel Base Unit
  • WATLOW 998D 998A Digital/Analog Dual-Channel Base Unit
  • WATLOW 999D-11FF-AARG Dual-channel digital unit with universal process outputs
  • WATLOW Wattlo 998D-22KK-ARRG is a high-performance dual-channel digital controller.
  • WATLOW 996A Single-loop controller
  • WATLOW 996D-11CC-CUGR Single-loop digital controller
  • WATLOW 996D Single-Channel Digital Temperature/Process Controller
  • WATLOW 997D Digital Dual-Channel Base Unit
  • WATLOW 997A Analog Dual-Channel Variant
  • WATLOW DAC / SDAC,Digital-to-Analog / Serial-to-Analog Modules
  • WATLOW MLS300-OIT Operator Interface Terminal (Keypad/Display),Discontinued
  • WATLOW CIM300 Communication Interface Module (EIA-232/485),Discontinued
  • WATLOW MLS300-CIM Control Interface Module (Comm Bridge),Discontinued
  • WATLOW MLS300-AIM,Analog Input Module (16-channel expansion),Discontinued
  • WATLOW MLS300-PM Processor Module (Central CPU),Discontinued
  • Watlow MLS332 32-Loop Processor Base Unit,Discontinued
  • Watlow MLS316 Multi-loop thermal controller
  • Watlow CLS208 C10000CP high-performance, 8-loop PID temperature controller
  • Watlow CAS 16CLS/CAS Multi-loop temperature controller
  • HIMA K9212 Module Overview
  • ABB CP555 1SBP260179R1001 Product Overview
  • Watlow MLS300 Multi-Loop Control System
  • Watlow 997D-11CC-JURG SERIES 997 Vertical Limit Control
  • Watlow CLS216 | Multi-Loop PID Temperature Controller
  • Watlow NLS300-CIM316 Multi-Loop Control Interface Module
  • Watlow PPC-TB50 (30280-00) Precision Power Controller
  • ABB PPD113-B03-23-111615 high-performance Processor / Controller Module
  • ABB MB510 3BSE002540R1 Control System Accessory
  • ABB 3BSE000863R1 SR511 Power Supply
  • ABB 3BSE014227R1 RF533 Central Unit
  • ABB PDD500A101 high-performance Drive Board / Processor Module
  • ABB PPD512A10-150000 high-performance Controller/Processor Module
  • ABB 500BIO01 1MRB150005R0001 1MRB200060/E Binary Input/Output (Combined)
  • ABB 500BIM01-1MRB160024R0002 Binary (Digital) Input Module
  • ABB 500PSM03 1MRB150038R1 894-030375D 136-011100H Power Supply Module
  • ABB 500PSM02 1MRB150015R1 AD-272.100.20-01 AZ:C Power Supply Module
  • ABB 500AIM02 1MRB150022R001 1HDF 930412 X010 Analog Input Module (AIM)
  • ABB 500MTM02 1MRB150020R0712 1HDF 930512 X010 Multivariable Transmitter Module
  • ABB 500SCM01 1MRB150004R0001 1MRB200059/C Signal Regulation and Monitoring Module
  • ABB 500TRM02 1MRB150011R0001 Terminal/Input-Output Board
  • ABB 500CPU03 1HDF700003R5122 Central Processing Unit module
  • ABB 500PB101 1MRB178009R0001 1MRB200064/C Communication Module
  • ABB 500CSP04 HE401314/0002 1MRB150051R2 Control and System Processing Module
  • ABB 500CMP04 HE401314/0001 1MRB150051R1 Communication motherboard
  • ABB 500TTM02 1MB150021R01161HF930712X010 Temperature / Logic Interface Module
  • ABB DSAO110 57120001-AT/1 Analog Output 4 Channels
  • ABB UNS4684A-P,V.1 HIEE305114R00R0001 Overvoltage protection (OVP) and pulse coupling panel (PCP) module
  • ABB PVD164A2059 3BHE014340R2059 high-performance Excitation Processor Module
  • ABB PFCL201CE 10KN 3BSX105983-100 Pressductor® Curved Plate Force Sensor
  • ABB 500SCM01 1MRB200059/C 1MRB15004R0001 Control Module
  • ABB 500CPU05 1MRB150081R1/E Central Processing Unit module
  • ABB 500CIM05 1MRB150077R1/B Communication Interface Module
  • ABB 500BIO01 1MRB150005R1/J high-performance Binary Input/Output (BIO) module
  • Metso D201379L ACN RT Controller / Processor
  • Metso D201505 (ACN C20 Controller)
  • Metso D201463 high-performance Network Controller / Processor Module
  • Metso D201505R (ACN C20 Series)
  • Metso D201380 CPU / Processor Module
  • Metso D202275 ACN Communication / Gateway Node
  • Metso D201376 ACN RT (Real-Time) Controller Node
  • METSO D200175 Application Control Node (ACN) Proc
  • METSO D200137 high-performance controller module
  • METSO IOP111 Analog Input Module
  • METSO IOP353 Digital Output Module
  • METSO IOP304 high-performance Thermocouple (TC) / Millivolt (mV) Input Module
  • METSO PDP601 high-performance Distributed Processing Unit
  • METSO IOP345 Digital Input/Output Module
  • METSO DPU-MR high-performance Distributed Processing Unit
  • METSO IOP114 high-precision Analog Input Module
  • METSO IOT300A Terminal substrate / Interface module
  • Metso R/I-TB 9139041 nput/output (I/O) interface module
  • YOKOGAWA YS1700-100/A06/A31 Programmable Logic Controller
  • YOKOGAWA PW482-10 AC Input Power Module
  • YOKOGAWA SCP451-11 CPU
  • YOKOGAWA SR1030B62 high-precision Power Supply Unit (PSU)
  • YOKOGAWA AAI143-H50 high-density Analog Input Module
  • YOKOGAWA AMM42 high-density Analog Input/Output Module
  • YOKOGAWA SDV144-S63 Digital input module
  • YOKOGAWA AIP830-111 Operating keyboard
  • YOKOGAWA S9361DH-00 High-performance terminal board module
  • YOKOGAWA ATK4A-00 S1 Terminal block adapter
  • YOKOGAWA PW701 Power Supply Module
  • YOKOGAWA AVR10D-A22010 Bus Converter
  • YOKOGAWA PROFIBUS-DP communication module
  • YOKOGAWA AIP578 AIP591 Optical link transceiver module
  • YOKOGAWA PW501 Power module
  • YOKOGAWA YNT511D ER Bus Terminator
  • YOKOGAWA AIP171 Vnet/IP-V net Coupler Unit
  • YOKOGAWA VI702 high-speed Vnet/IP Interface Module
  • YOKOGAWA Models 4370 µR1800 Recorder
  • YOKOGAWA ANR10D communicates the analog I/O signals and contact I/O
  • YOKOGAWA SDV144-S13 Digital Input Module
  • YOKOGAWA NFAI143-H00 Simulation Input Module
  • YOKOGAWA EB501 ER bus interface slave module
  • YOKOGAWA V0/E1/TCAM/L08 Input/Output Module Card
  • YOKOGAWA VO/E2/TCDM24/L8 Temperature Controller / Data Logger
  • YOKOGAWA 16137-223 16137-222 Communication cable
  • YOKOGAWA 16137-153 Diagnosis and Maintenance Module
  • YOKOGAWA 8596020000 Process control
  • YOKOGAWA TCDM24 8662560000 Terminal Module
  • YOKOGAWA PSCAMAAN Power module
  • YOKOGAWA DR1030B60 Hybrid multi-point recorder
  • YOKOGAWA ADV551 Digital output module
  • YOKOGAWA AAI543 Simulation output module
  • YOKOGAWA LR4220E Desktop recording equipment
  • YOKOGAWA SR1008B62 Industrial-grade miniature recorder
  • YOKOGAWA SC200S Communication interface module
  • YOKOGAWA F3XD64-3N CPU module
  • YOKOGAWA F3WD64-3N Input-output module
  • YOKOGAWA F3SP21-0N, F3SP25-2N F3SP35-5N CPU module
  • YOKOGAWA F3PU10-0N AC power supply module
  • YOKOGAWA F3PU06-0N Core power module
  • YOKOGAWA F3NC01-0N F3NC02-0N Positioning Module with Analog Voltage Output
  • YOKOGAWA F3LC21-1N Multi-link unit
  • Yaskawa USAHEM-02-TE53 Servo motor
  • Yaskawa CACR-SR07BE12M Compact servo amplifier
  • YASKAWA JAMSC-B2732V High-performance analog output module
  • YASKAWA CACR-02-TE1K Servo driver
