CMZSMART SERVODRIVE FOR 2 PHASES SYNCHRONOUS MOTOR

• SMART SERVODRIVE FOR 2 PHASES SYNCHRONOUS MOTOR

HARDWARE FEATURES

Power supply

65-180Vdc [Nominal 160Vdc]

Control supply

20-180Vdc

Rated current

4Arms @40°C (8,5Arms with external ventilation)

Peak current

12Arms

Feedback

Incremental encoder

Encoder output

Incremental line driver (differential output)

Digital input

7 configurable 24Vdc PNP optoisolated (e.g.: limit switch +/-,

index, captures or general purpose)

Special digital input

2 configurable 24Vdc PNP or line driver optoisolated: settable

as master encoder or step/dir or general purpose

Analog input

1 Analogue IN +/-10V

Digital output

4 optoisolated PNP digital outputs 24Vdc max 200mA

n. 1 24Vdc max 1,4A

for motor brake control or general purpose

(external power device required)

Interface

Profibus-DP slave

CANopen RS232/485 (ModBus) step/dir,

+/-10V with encoder output

CAN Speed/address selection

by switches or software settable

Available versions

Profibus-DP, CANopen, ModBus RS485, Step/dir, ±10V

Dimensions (mm)

W51xH196xD125

Weight (Kg) 0.8

Certifications: CE

FUNCTIONAL FEATURES SVM

Integrated movement features:

device profile DS402, interpolated mode,

positioning, extended gearing function,

homing, capture

Stand alone programmability

according to the standard IEC61131,

ST language

Capture input

PC parametrization tool

Protection

I2t, Overload, Short circuit,

Overtemperature, Overvoltage

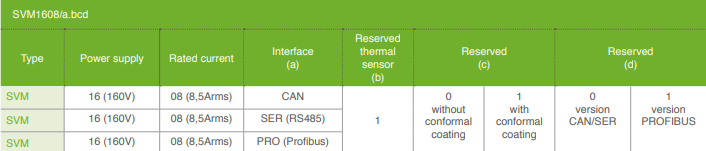

• SVM ORDERING CODES

CMZ engineers and manufactures electronic systems for

industrial motion control.

The company targets to OEMs and systems integrators

for the co-development of automatic machines featuring

a deep level of customization in multi axis motion. The

result: high performing machines with unique, special

features.

Established in 1976 focusing on controllers, today CMZ

offers a complete portfolio of solutions including the

systems design, the electronics programming, the

development of ready-to-use application libraries and

ad-hoc softwares, alongside a wide selection of master

controllers IEC61131 up to 99 axis, integrated and standalone drives, brushless and stepper motors up to 120

Nm strictly compact and Made in Italy, peripherals and

I/O modules both digital and analogic, integrated vision

systems based on machine learning technology, HMI

operator panels.

CMZ’s high technological and safety standing is based on

its team of 70 technicians and engineers. The systems

realized to date in its plant count over 125,000 units.

CMZ is part of SOGA ENERGY TEAM industrial group

operating in power generation, motion and control since

CMZ sviluppa e realizza sistemi elettronici e soluzioni

per il motion control industriale.

L’azienda si rivolge a OEMs e system integrators

per la co-progettazione di macchine automatiche

dotate di funzionalità personalizzate e speciali nella

movimentazione degli assi. Il risultato: macchine ad alta

performance e dalle caratteristiche uniche.

Fondata nel 1976 con focus sui controllori, oggi CMZ

offre un portfolio integrale di soluzioni che include

la progettazione dei sistemi, la programmazione

dell’elettronica, lo sviluppo di librerie applicative readyto-use e pacchetti software ad-hoc, affiancati a un’ampia

scelta di controllori IEC 61131 programmabili fino a

99 assi, azionamenti integrati e stand-alone, motori

brushless e passo-passo fino a 120 Nm rigorosamente

compatti e Made in Italy, periferiche e moduli I/O digitali

e analogici, sistemi di visione integrata con tecnologia

machine learning, pannelli operatore HMI.

L’elevato standing tecnologico e di sicurezza di CMZ

si basa su un team di 70 tecnici e ingegneri. I sistemi

realizzati fino ad oggi nel sito produttivo dell’azienda sono

oltre 125.000. CMZ fa parte del gruppo industriale SOGA

ENERGY TEAM, attivo dal 1966 a livello internazionale

1966. nei settori power generation, motion e control.
