Introduction

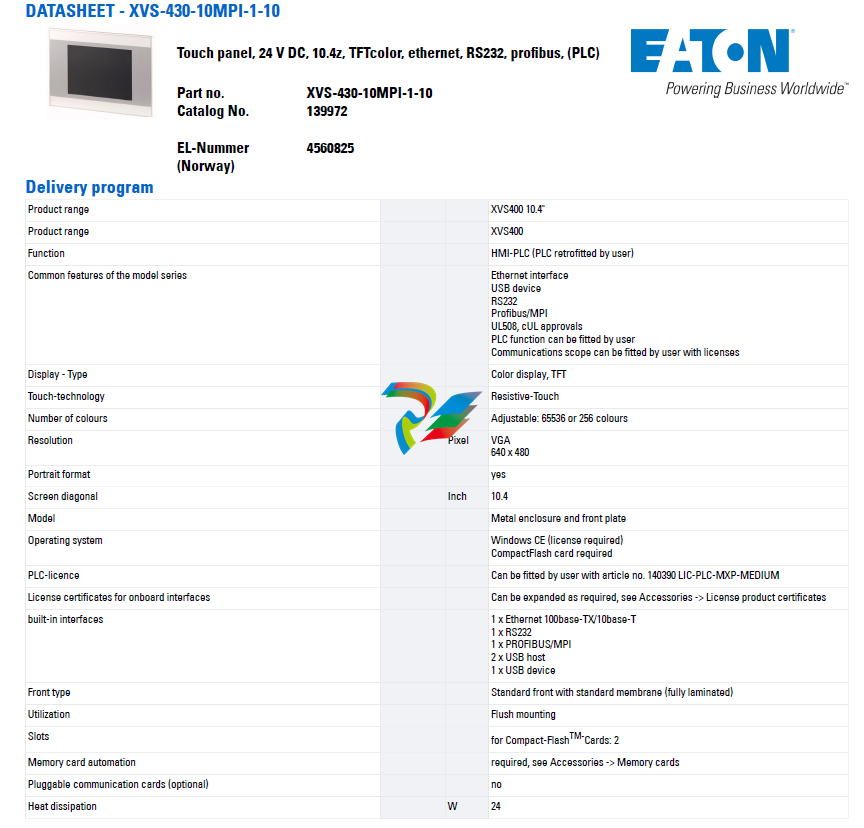

This document provides a technical summary of the Eaton XVS-430-10MPI-1-10, a versatile touch panel from the XVS400 series. This device functions as a combined Human-Machine Interface (HMI) and Programmable Logic Controller (PLC), designed for a wide range of industrial automation applications. All information is based on the official product datasheet (Part No. 139972).

Core Functionality & Design

The XVS-430-10MPI-1-10 is a robust unit featuring a metal enclosure and front plate, designed for flush mounting. It offers a comprehensive set of features tailored for control and visualization tasks.

• Function: HMI with user-retrofittable PLC functionality (via license).

• Operating System: Runs on Windows CE, which requires a license and a CompactFlash card to operate.

• PLC Programming: Can be programmed using Eaton's XSOFT-CODESYS-2 or XSOFT-CODESYS-3 software.

• Visualization Software: Compatible with GALILEO and EPAM for HMI development.

Display & Human-Machine Interface (HMI)

The device is equipped with a high-quality display and responsive touch interface for intuitive operator control.

• Display Type: 10.4-inch TFT color display.

• Resolution: VGA, 640 x 480 pixels.

• Colors: Adjustable, supporting up to 65,536 colors.

• Touch Technology: 4-wire resistive touch panel.

• Brightness & Backlight: Typically 350 cd/m² with a long-life LED backlight (approx. 50,000 hours) that is dimmable via software.

System, Memory & Power

The internal architecture is designed for reliable performance in industrial environments.

• Internal Memory:

• 64 MByte DRAM (for OS, program, and data).

• Approx. 1.5 MByte available Flash for data backup.

• Approx. 32 KByte NVRAM for retained data.

• External Memory: Features two slots for CompactFlash (CF) cards (Type I/II), which are required for the operating system, programs, and data storage.

• Power Supply:

• Nominal voltage: 24 V DC SELV (Safety Extra Low Voltage).

• Permissible range: 20.4 V to 28.8 V DC.

• Power consumption: 24 W maximum.

Connectivity & Interfaces

The XVS-430-10MPI-1-10 provides a rich set of built-in communication ports to ensure seamless integration into various control systems.

• Built-in Interfaces:

• 1 x Ethernet (10/100Base-TX)

• 1 x RS232

• 1 x PROFIBUS/MPI

• 2 x USB Host (2.0)

• 1 x USB Device (1.1)

• Supported Protocols: Native support for a wide range of industrial protocols, including TCP/IP, PROFIBUS, MODBUS, and EtherNet/IP. The communication scope can be expanded with additional licenses.

Environmental & Physical Specifications

The device is built to withstand typical industrial conditions.

• Housing: Anodized metal housing with a fully laminated standard front membrane.

• Degree of Protection: IP65 rated at the front, IP20 at the rear.

• Operating Temperature: 0 to +50 °C.

• Storage/Transport Temperature: -20 to +60 °C.

• Approvals: cUL (UL508) and CE marking, compliant with EN 61131-2 and other relevant standards.

Conclusion

The Eaton XVS-430-10MPI-1-10 is a powerful and flexible HMI-PLC solution. Its combination of a high-quality touch display, user-expandable PLC capabilities, extensive communication interfaces, and robust construction makes it an ideal choice for complex machine control, process visualization, and data handling in a variety of industrial settings.
