AB 1336 Series introduction

AB1336 series inverter is a high performance inverter produced by Rockwell Automation, which is widely used in the field of industrial automation, with a variety of models and features. The following is a detailed introduction to the AB1336 series frequency converter:

I. Series overview

AB1336 series drives are known for their excellent performance and wide range of applications, and the series includes several sub-series, such as 1336 PLUS, 1336 IMPACT, 1336 FORCE, etc., each sub-series has its own unique features and scope of application.

Second, technical characteristics

FORCE technology: Some AB1336 series drives use FORCE technology, which is a field-oriented control method that can separate and independently control the motor's magnetic field and torque, so that it can still produce full torque at zero speed. This technology makes the inverter perform well in high-performance drive applications, most of which are usually only suitable for DC governors.

High Performance control: With precise magnetic field and torque control, the AB1336 series drives provide excellent speed and torque performance. In the absence of encoders, high speed accuracy and torque adjustment can also be achieved, thus eliminating the expensive encoder installed in the motor in many applications.

Easy operation: This series of inverter design is simple, easy to operate. The quick motor setting step allows the operator to enter simple motor parameters from a menu, while the rest of the required parameters are automatically entered, greatly simplifying the commissioning process.

Modular design: The AB1336 series inverter may adopt a modular design for easy installation, replacement and maintenance, improving the reliability and maintainability of the system.

Communication interface: Supports a variety of communication protocols and interfaces, such as SCANport protocol, for easy integration with other programming devices and control systems.

Built-in functions: Some models have built-in process fine-tuning controllers, which can further improve the control accuracy and stability of the system.

3. Application fields

AB1336 series drives are widely used in various industrial automation fields, including but not limited to manufacturing, aviation, machinery, transportation and other industries. In the production line, robot control, motor drive and other occasions, this series of inverter can play an excellent performance.

4. Specific model examples

1336-BDBMX3-SP3: This is a specific model of the AB1336 series inverter with specific parameters such as rated capacity, rated current and applicable motor power.

1336F-BRF Series: such as 1336F-BRF05-AN-EN, 1336F-BRF10-AN-EN, etc., these models represent different power and function of the inverter to meet the needs of different application scenarios.

V. Summary

AB1336 series inverter with its advanced technology, excellent performance and a wide range of applications, in the field of industrial automation occupies an important position. Whether it is from the perspective of control accuracy, speed regulation range or ease of operation, this series of inverters performs well and is an indispensable part of industrial automation control systems.

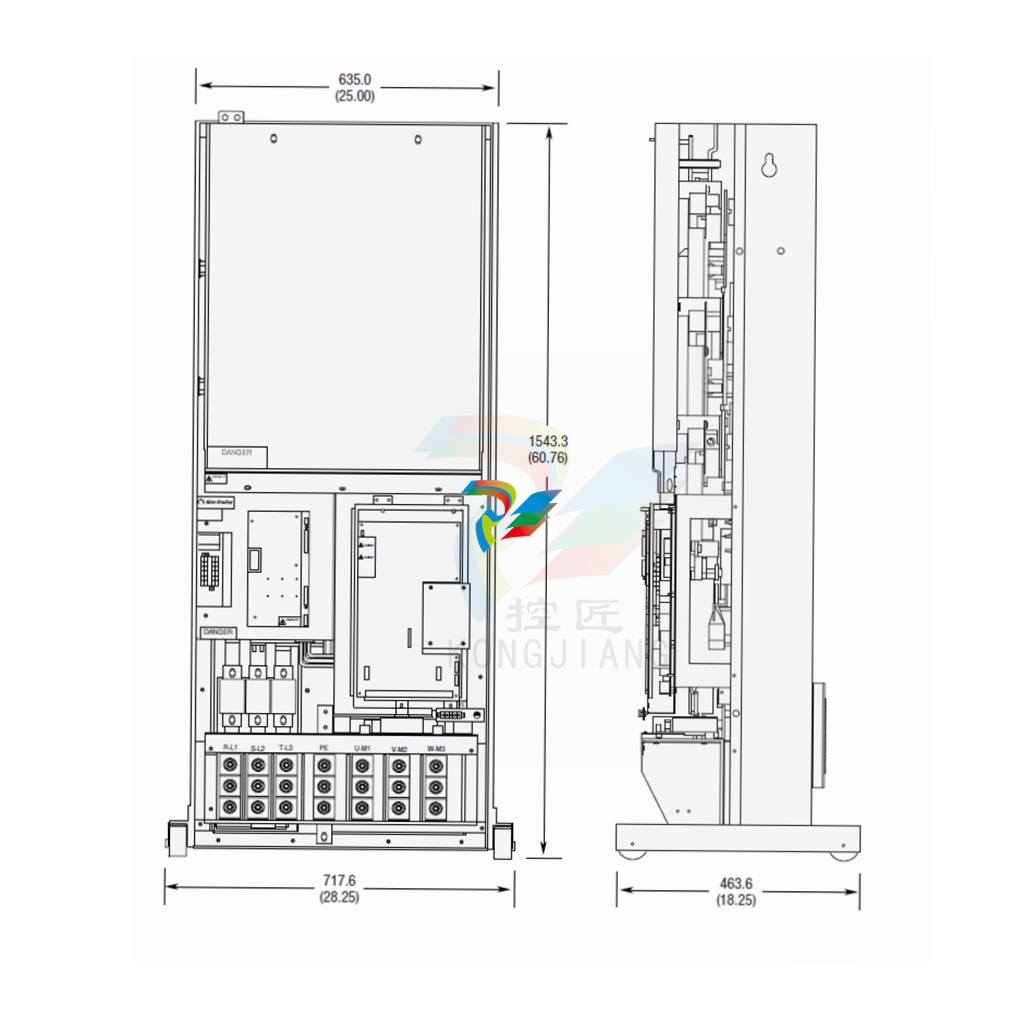

6.Product drawing
