johnsoncontrolsNAE55 Catalog Page

Control Units and Accessories for Fire Alarm Systems

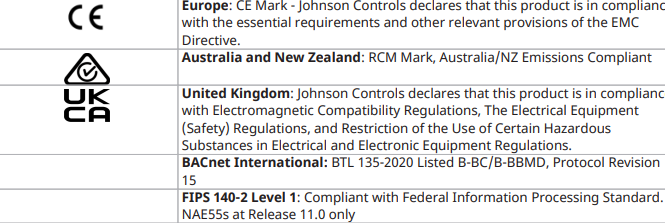

Europe: CE Mark - Johnson Controls, Inc. declares that this product is in

compliance with the essential requirements and other relevant provisions of

the EMC Directive.

Australia and New Zealand: RCM Mark, Australia/NZ Emissions Compliant

United Kingdom: Johnson Controls declares that this product is in compliance

with Electromagnetic Compatibility Regulations, The Electrical Equipment

(Safety) Regulations, and Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations.

BACnet International: BTL 135-2020 Listed B-BC/B-BBMD, Protocol Revision

15

Table 8: NAE55xx-3 (UL 916, Energy Management) and NAE5510-3U (UL 864, Smoke Control) technical

specifications

Power requirement Dedicated nominal 24 VAC, Class 2 power supply (North America), SELV power

supply (Europe), at 50/60 Hz (20 VAC minimum to 30 VAC maximum)

Power consumption 50 VA maximum

Table 8: NAE55xx-3 (UL 916, Energy Management) and NAE5510-3U (UL 864, Smoke Control) technical

specifications

Ambient operating

conditions

0°C or 32°F to 50°C or 122°F; 10% to 90% RH, 30°C or 86°F maximum dew point

Ambient storage conditions -40°C or -104°F to 70°C or 158°F; 5% to 95% RH, 30°C or 86°F maximum dew

point

Data protection battery Supports data protection on power failure. Rechargeable gel cell battery: 12 V,

1.2 Ah, with a typical life of 3 to 5 years at 21°C (70°F); Product Code Number:

MS-BAT1010-0

Clock battery Maintains real-time clock through a power failure. Onboard cell; typical life 10

years at 21°C or 70°F

Processor 1.46 GHz Intel® Atom® Bay Trail E3815 processor for MS-NAE55xx-3 models

Memory 16 GB flash nonvolatile memory for operating system, configuration data, and

operations data storage and backup for MS-NAE55xx-3 models.

2 GB DDR3 SDRAM for operations data dynamic memory for all models

Operating system NAE5510-3U (UL 864 UUKL 10th ed /S527 UUKL7 4th ed): OEM Version of

Microsoft® Windows® Embedded Standard 7 with SP1 (WES7)

NAE55xx-3: (UL 916): Wind River® Linux LTS 17 (LTS=long-term support)

Network and serial

interfaces

• One Ethernet port; 10/100/1000 Mbps; 8-pin RJ-45 connector

• Two optically isolated RS-485 ports; 9.6k, 19.2k, 38.4k, or 76.8k baud;

pluggable and keyed 4 position terminal blocks, RS-485 terminal blocks

available on NAE55 models only

• Two RS-232-C serial ports, with standard 9-pin sub-D connectors, that

support all standard baud rates

• Two USB 2.0 serial ports; standard USB connectors support an optional,

user-supplied external modem, no longer supported at Release 10.0 or later

• One LonWorks port; FTT10 78 Kbps; pluggable, keyed 3-position terminal

block. LonWorks port available on NAE552x-x models only

Housing Plastic housing with internal metal shield

Plastic material: ABS + polycarbonate; Protection: IP20 (IEC 60529)

Mounting On a flat surface with screws on four mounting feet or on a dual 35 mm DIN

rail

Dimensions

(Height x Width x Depth)

226 mm x 332 mm x 96.5 mm or 8.9 in. x 13.1 in. x 3.8 in. including mounting

feet

Minimum space for mounting: 303 mm x 408 mm x 148 mm or 12.0 in. x 16.1

in. x 5.8 in.

Shipping weight 2.9 kg or 6.4 lb

Compliance United States: UL Listed, File E107041, CCN PAZX, UL 916, Energy

Management Equipment, FCC Compliant to CFR47, Part 15, Subpart B, Class A

UL Listed, File S4977, UL 864 UUKL/UUKLC 10th Edition Listed, Smoke Control

Units and Accessories for Fire Alarm Systems Equipment (MS-NAE5510-3U

model only with Release 8.1 software)

Canada: UL Listed, File E107041, CCN PAZX7, CAN/CSA C22.2 No. 205, Signal

Equipment, Industry Canada Compliant, ICES-003

UL Listed, File S4977, UL 864 UUKL/ORD-C100-13 10th Edition Listed, Smoke

Control Units and Accessories for Fire Alarm Systems. MS-NAE5510-3U model

only with Release 8.1 software

Table 8: NAE55xx-3 (UL 916, Energy Management) and NAE5510-3U (UL 864, Smoke Control) technical

specifications

North American emissions

compliance

United States

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when this equipment

is operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference, in which case the

users will be required to correct the interference at

their own expense.

Warning (Part 15.21)

Changes or modifications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

Canada

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Industry Canada Statement(s)

This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the

following two conditions:

1. This device may not cause interference, and
