HoneywellUDC1200 & UDC1700 Universal Digital Controllers Series Micro-Pro Specifications 51-52-03-35 June 2011

Overview

The UDC1200 & UDC1700 are microprocessor-based

1/16 DIN and 1/8 DIN controllers, which combine a

high degree of functionality and reliability at low cost.

They are fully dedicated to monitor and control

temperatures, pressures and levels in a wide range of

applications such as environmental chambers,

furnaces, ovens, packaging machines and other

applications in plastics and the food and beverage

industries. The large and easy-to-read dual 4-digit

display and tactile keypad make the UDC1200 and

UDC1700 easy to configure and use. Their

outstanding flexibility enables you to configure any unit

for any application and change it if required.

For the thousands of satisfied UDC1000/1500 users,

the UDC1200/ 1700 controllers are downward

compatible to existing UDC1000/1500 applications

and installations.

Features

Dual display

Two 4-digit displays with 7 LED segments, each

configurable for:

 PV and SP (non adjustable)

 PV and SP (adjustable)

 PV and Ramping SP

 PV only

Easier to configure

Two different configuration levels (Configuration mode

and set-up mode) provide easy access to parameters.

A 4-digit security code prevents unauthorized changes.

Moisture resistant front-face

Meets NEMA 3 / IP65 front-face protection against

dust and water.

Universal input

Accept seven different types of thermocouples, RTDs,

current and voltage linear inputs. All inputs are configurable

as standard.

Universal power supply

The UDC1200 and UDC1700 can operate on any line

voltage from 90 Vac to 264 Vac at 50/60 Hz. A 24/48 Vac/dc

model is available as an option.

Easy upgrade

All the option boards are jumper free and detected

automatically by the instrument.

Easy output selection

All the outputs (including the control output) of the

instrument can be changed to meet the exact

customer’s needs.

Alarm strategy

Two soft alarms for PV, deviation high/low/absolute. A

special loop alarm is also provided to detect faults in

the control loop by continuously analyzing the PV

response to the control output. Alarm inhibit is

available on power up and setpoint switching.

Manual/Automatic mode

Manual control (via bumpless transfer) is enabled by

simply pressing the front-face AUTO/MAN key. The

“SET” LED flashes and the output power is displayed

on the lower display. Output can be adjusted with the

upper and lower keys.

Pre-tuning and self-tuning strategy

Pre-tuning is used to set up the PID parameters close

to the optimum values, which the self-tuning algorithm

uses to subsequently optimize the tuning parameters.

Limit controller

Packaged in 1/16 DIN, the UDC1200 limit controller is

designed to provide a safety shut-off and optional

alarm for use in a wide variety of applications.

Up to three outputs

The UDC1200 and UDC1700 provide up to three

outputs for time and current proportioning, duplex

mode (heat/cool), PV or SP retransmission, and

alarms.

Setpoint ramp

The current setpoint can ramp to a new-targeted

setpoint by way of a user defined ramp rate.

Dual setpoint

Dual setpoint option is available on the UDC1200 and

UDC1700. The current setpoint is selected by a digital

input. This option is exclusive with UDC1200 limit

model remote alarm reset.

Communication

An optional RS485 communications interface is

available on the UDC1200 and UDC1700. It provides a

link for up to 32 units and a host computer through

ASCII or Modbus RTU protocol at up to 19200 baud.

Highly secure

A non-volatile memory based on EEPROM technology

ensures data integrity during loss of power supply, with

retention of more than 100 years. A 4-digit security code

prevents unauthorized or accidental change.

UDC1700 UDC1200

Upper display: 4 characters

dedicated to show the PV.

In configuration mode, it shows

the parameter value or selection

Lower display: 4 characters

dedicated in normal operation

mode to display the SP. In

configuration mode, it displays

the parameter name.

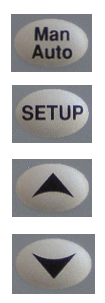

Selects manual or automatic mode. Becomes

« Reset » on UDC1200 Limit model.

Allows operator mode parameters to be scrolled.

In combination with the «Upper» key, allows

configuration mode or Setup mode to be entered.

Increases setpoint, output or configuration

parameter values.

Decreases setpoint, output or configuration

parameter values.

Optional Features

The following can be selected via the Model selection

Guide (see page 8):

 RS485 ASCII communication

 RS485 Modbus RTU communication

 Digital Input

 Output 2

 Output 3

 Power Supply 24/48 Vac/dc

Physical Description

The UDC1200 controller is housed in a 110 mm (4.33

inches) deep case with a standard UDC gray bezel. It
