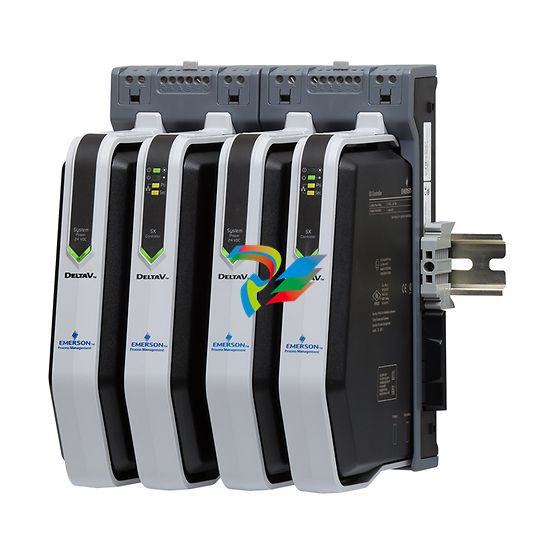

Emerson DeltaV™ S series SX controller

Emerson DeltaV™ S series SX controller

Product Description

The DeltaV™ S series controllers offer communication and control functions and can be used to integrate field devices into other nodes on the control network. The SX, SQ and SD Plus controllers can help expand the controllers according to process requirements. They also offer new user-friendly features, eliminating the need for screws and accelerating cabinet assembly.

Specification

DST limit: 1500

SCADA Tag 3200

The maximum data transmission rate is 4000 per second

The maximum data reception capacity is 500 per second

The maximum active client node provided is 120

The module execution speeds are 100ms, 200ms, 500ms, 1s, 2s, 5s, 10s, 30s, and 60s

User memory is 96 MB

Fuse protection (internal) 3.0A non-replaceable fuse

The typical power dissipation value is 5.0W, and the maximum value is 7.0W

Operating temperature: -40° C to 60°C (-40° F to 140°F)

Storage temperature: -40 to 85 °C (-40 to 185 °F)

Relative humidity 5 to 95%, no condensation

Shock-resistant 10 g ½ -sine wave lasts for 11 ms

Vibration 1mm peak value (from 2 to 13.2Hz), 0.7g (from 13.2 to 150 Hz)

Features

Meet all your functional expectations for the DeltaV™ system: self-addressing, automatic I/O detection

Support 1:1 redundancy to enhance availability

The S series hardware has been redesigned to achieve project execution speed

The controller is easy to configure.

The new design improves installation and robustness while still using the same processor and operating system that have been field-proven

The S series controllers feature highly distributable I/O capabilities and are equipped with Charm-based electronic hub functionality
