EMERSONOvation™ VHF Power Delivery System Leading power technology to enable advanced dielectric etch and PVD processes

Any Process Environment

The Ovation system is compact

in size for easy installation and

seamless integration into your new

or existing processes. The small

product footprint maximizes your

chamber design flexibility.

Communication Options

This power-delivery system offers an

array of interfacing options, including

analog and RS-232 (AE Bus) interfaces.

RS-232 interfaces, when used with

the optional AE® Virtual Front Panel

(VFP) software package, allow data

visualization of many internal source

parameters and fault conditions.

Reliability & Compliance

The Ovation power-delivery

system has received the following

safety certifications:

• CE 73/23/EEC & 89/336/EEC

• IEC/EN 61010-1

• CSA C22.2 No. 1010.1

• ANSI/ISA-82.02.01

• NRTL/C

• SEMI F47

• EN 55011, EN61326, and 47 CFR

Value-Added Options

Virtual Front Panel

AE’s optional VFP graphical computer

interface gives you the ability to

perform critical functions dynamically,

and in real time, including:

• Process setup

• Troubleshooting

• Operational control

• Data visualization

Navigator™ Matching Network

Advanced Energy’s Navigator™

matching network provides advanced

match technology for rapid, accurate,

and reliable matching from an

RF generator to the processing

tool across a wide range of load

impedances. This versatile matching

network optimizes delivered power

to semiconductor, flat panel display,

and MEMs manufacturing processes,

including CVD, HDP-CVD, and

chamber clean applications. Equipped

with microprocessor-controlled

stepper motor circuitry and digital,

user-selectable tuning algorithms,

the Navigator matching network

minimizes reflected power by

automatically tuning the complex

impedance of a coupled plasma. The

network’s digital scheme delivers

superior performance over traditional

analog-based tuning methods, which

are less consistent and accurate. An

optional, internal Z’Scan® RF sensor

provides real-time measurement

and analysis of process power

and impedance, enabling process

engineers to identify and significantly

reduce process variability—a

competitive advantage over other

matching networks without real-time

monitoring capability. In addition, the

Navigator matching network features

embedded instrumentation that

permits process engineers to exercise a

level of electrostatic chuck control and

a level of process-recipe optimization

not possible with non-embedded,

separate instrumentation. Moreover,

with AE’s VFP software, process

engineers can monitor and command

the matching network through a

personal computer—enabling a level

of control not previously available.

Sweep Frequency

The Ovation 3060 sweep frequency

incorporates direct digital synthesis

(DDS) technology for control of

its operating frequency when the

power system is mismatched. This

field-proven, robust technology has

been incorporated into AE products

since 1996. The frequency can be

programmed to dither over a predetermined range, enable plasma

ignition, and minimize the mismatch

to the power system during plasma

processing. The DDS operating

parameters can be set via an RS232 or Ethernet port and are stored

indefinitely in non-volatile RAM.

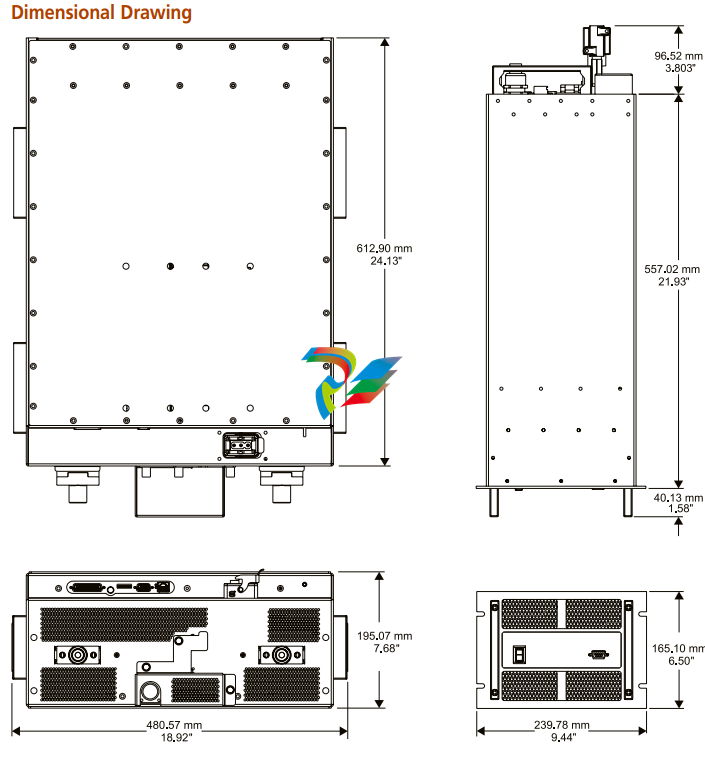

General Specifications

Physical

Size

Up to 2.7 kW 16.5 cm (H) x 24.0 cm (W) x 59.7 cm (D)

6.5" (H) x 9.45" (W) x 23.5" (D)

(Does not include connectors and handles)

Above 4.5 kW 19.5 cm (H) x 43.9 cm (W) x 64.4 cm (D)

7.68" (H) x 17.30"(W) x 25.35" (D)

(Does not include connectors and handles)

Weight < 29.5 kg (65 lb) max for power up to 2.7 kW

< 65.9 kg (145 lb) max for powers higher than 2.7 kW

RF Output Connector Type HN female at 2.7 kW/ QRM F for 4.5 kW

User Interface Connector 25-pin, sub-D, female

Remote Digital Interface

(AE Bus)

9-pin, sub-D, female

Electrical

Input Power

Line Voltage 180 to 229 VAC (208 V nominal), 3 Φ, 4-wire, no neutral connection required

Line Frequency 50/60 Hz

RF Output

Full-Rated Output Power 2.7 to 4.5 kW, depending on model

Accuracy +3% or 20 W, whichever is greater

Optional V and I Outputs Available for non-50-Ω power measurement

Frequency 60 MHz
