GE Fanuc Automation VMIVME-7750 Specifications

and VxWorks. IOWorks board drivers take advantage of all the

key benefits and features of each suppo

I/O boards are constantly being added.

IOWorks board drivers contain both a C++ class library and a C

function library that provide a common interface to GE Fan

Embedded Systems I/O products for reading, writing and

configuring. You do not need to know the details of how an

individual board is programmed. For instance, you can use the

SetAttributes function on any supported GE Fanuc Embedded

Systems board; the WriteAnalog function controls the output

from any GE Fanuc Embedded Systems analog output board

the GetScanMode function retrieves the scan mode for any

GE Fanuc Embedded Systems analog board.

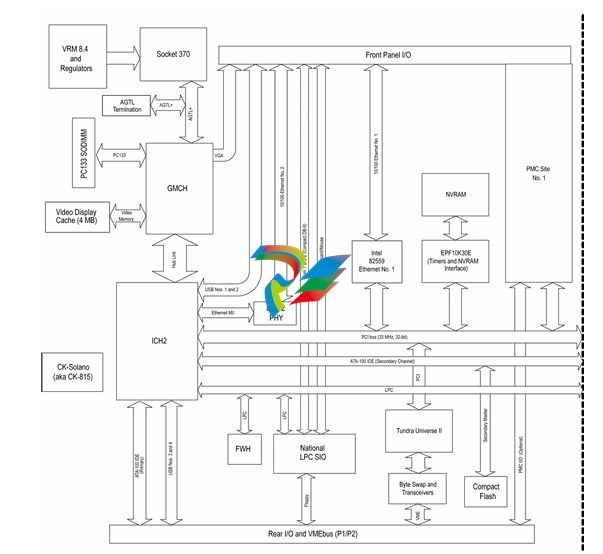

Physical/Environmental Specif

Dimensions: single slot Eurocard format

Height   9.2 in. (233.4mm)

Depth   6.3 in. (160mm)

Thickness  0.8 in. (20

Power Requirements:

+5VDC (±5 percent), 6A (typical), 7A maximum

+12VDC (±5 percent), 105mA (typical), 200mA maximu-12VDC (±5 percent), 50mA (typical), 75mA maximum

Note: The currents at +1

serial connectors open.

Operating Temperature: 0 to 50° C

Extended

options:

A=2 (733 MHz, 0 to 60° C)

A=9 (1.26 GHz, 0 to 55°

A=6 (1 GHz, 0 to 40° C)

(Air flow requirement as

greater than 350 LFM)

Storage Temperature: -25 to 80° C

Relative Humidity: 10% to 90

VMEbus Inte ce:

DTB Master: BLT32/BLT64. A32/D32. A24/D32. A16/D32

DTB Slave: BLT32/BLT64. A32/D32. A24/D32. A16/D32

Requester: Programmable, BR

Interrupt Han r: IH(1 to 7) D8(O)

Interrupte Programmable

Arbite SGL, PRI, RRS

BTO:  Programmab

Compliance: Rev. C.1

PMC Expansion Site Connector: 5V

32-bit PCI bus, 33 MHz maximum

Compatible Products

The VMIVME-7750 can be used with a number of GE Fanuc

Embedded Systems PMC and VME products.

Floppy/Hard Disk: GE Fanuc Embedded Systems produces

floppy/hard drive modules to support the built-in IDE and floppy

controller ports.The VMIVME-7452 provides hard disk storage

and a 3.5-inch 1.44 Mbyte floppy drive. Contact Sales for

availability. The unit fits into a standard VME 6U single slot form

factor. The VMIACC-0562 converts P2 IDE/Floppy signals to 40-

and 34-pin headers for use at the rear of the VME backplane.

PMC Capability: GE Fanuc Embedded Systems supports PMC

via the PMC expansion sites. These expansion sites allows the

VMIVME-7750 to take advantage of the many commercially

available PMC boards available from third-party sources.

CD-ROM Support: Since much of today’s advanced software is

delivered on CD-ROM, the VMIVME-7455 provides CD-ROM

capability within a single 6U VME slot.

VME: The VMIVME-7750 enables access to GE Fanuc Embedded

Systems’ wealth of VME products. If you have real world control,

monitoring and real time networking requirements, GE Fanuc

Embedded Systems has a solution for you. Today’s system

requirements demand state of the art solutions. Our advanced

I/O features such as built-in-test, self-test, isolation, digital

autocalibration, and intelligent DSP processing give our

customers those solutions.

The I/O Solution for Your I/O Problem: GE Fanuc Embedded

Systems’ experience in supplying high performance

deterministic controllers for multiple markets has led to the

development of IOWorks software with features, benefits and

capabilities to solve nearly any I/O problem. From PLC

alternatives to data servers that support the seamless

interconnection of dissimilar systems, GE Fanuc Embedded

Systems has the solution for simple to complex, high speed,

deterministic requirements. IOWorks PC platforms, target, OS

and I/O independency provide the flexibility for solutions shown

in Figure 1.

Trademarks

MMX is a trademark and Intel and Pentium are registered

trademarks of Intel Corporation. Visual Basic, Visual C++, and

Windows are registered trademarks of Microsoft Corporation.

Other registered trademarks are the property of their respective

owners.
