EMERSONAMS 2140 Machinery Health™ Analyzer

to 35° C).

• When operating the AMS 2140 with the battery pack, ensure the ambient

temperature where the analyzer is being used is -4° F to 122° F ( -20° C to 50° C).

Prevent battery degradation

When storing the AMS 2140 with the battery pack or storing the battery pack by itself for a

prolonged period of time:

• Ensure the ambient temperature where the battery pack is located is -4° F to 95° F

( -20° C to 35° C). Due to the chemical composition of Lithium-Ion battery

technology, over time there will be some degradation that results in a reduced

charge capacity and performance. This degradation is unavoidable and irreversible.

Prolonged storage at temperatures outside this range, especially temperatures

above the high end, speeds up the degradation process.

• Disconnect the power supply from the AMS 2140 or the battery pack.

• When storing for 1–3 months, Emerson recommends removing the battery pack

from the AMS 2140.

• When storing the battery for longer than three months, contact Technical Support

to learn how to enter storage mode. Storage mode protects the battery during long

term storage. In storage mode, the analyzer and battery are non-functional. The

analyzer does not power on and the battery LEDs do not operate. Connect the

charger to the unit to reactivate the battery.

Note

If you do not enter storage mode, ensure the battery capacity is approximately 40 percent

and periodically recharge the battery pack (to approximately 40 percent charge capacity)

during storage to ensure the battery does not drain to low levels.

Prevent damage

To prevent damage to the analyzer:

• Do not connect a signal larger than 0 to 24 volts into the Accel input of the AMS

2140.

• Do not connect a signal larger than +/- 24 volts into the Volts / Tach input of the

AMS 2140.

1.5 Technical Support and Customer Service

When you contact Technical Support, be ready with a screen capture of the error message

and details such as when and how the error occurred.

Hardware Technical Help

Have the number of the current version of your firmware ready when you call. To view the

firmware version of the AMS 2140, select Home > ALT > F1 Version.

Software Technical Help

Provide the software version numbers of both your Microsoft® Windows operating system

and AMS Machinery Manager, and your AMS Machinery Manager serial number. To find

AMS Machinery Manager version and serial numbers, select Help > About.

Be at your computer when you call. We can serve you better when we can work through

the problem together.

Software Technical Support

Emerson provides technical support through the following for those with an active support

agreement:

• Telephone assistance and communication via the Internet.

• Mass updates that are released during that time.

• Interim updates upon request. Please contact Emerson Technical Support for more

information.

Introduction to the analyzer

Topics covered in this chapter:

• Standard equipment

• Front view

• Top view

• Turn on the analyzer for the first time

• Use the stand

• Attach the shoulder strap

• Battery pack

• External AMS 2140 Battery Charger

• Turn the analyzer on or off

• Home screen

• Backlight

• Touchscreen

• Menu navigation

• Settings

• Memory card

• Bluetooth

• Utilities

• Clean the analyzer

• AMS 2140 Four-Channel Input Adapter

• Multiple inputs

• AMS 2140 for use in hazardous locations

2.1 Standard equipment

Unpack the analyzer and compare the contents of the package to the list below. If you find

a discrepancy, contact your local sales representative immediately.

• Firmware media

• Micro USB cable to connect to AMS Machinery Manager

• Power supply to charge the battery pack

• Screen protector

• Shoulder strap

Note

The AMS 2140 does not support cables with 25-pin connectors or cables that connect to the Volts/

Tach input from previous Emerson vibration analyzers.

2.2 Front view

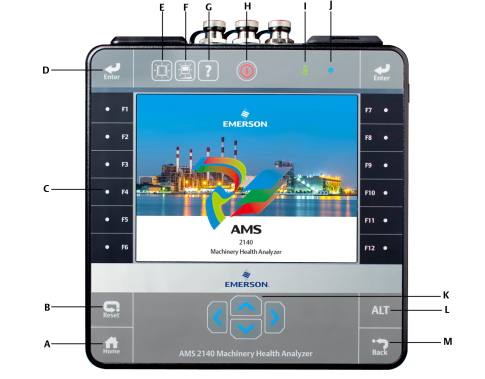

Figure 2-1: AMS 2140 front panel

A. Home key—Return to the Home screen from any program.

B. Reset key—Return to the main menu in a program.

C. Function keys—Display menu options.

D. Enter key—Select a menu or option.

E. Keypad backlight key—Turn on the backlight under the keys. (1)

F. LCD backlight key—Set the backlight for the LCD touchscreen.

G. Help key—Display Help text for a key.

H. Power key—Turn the analyzer on or off, or put the analyzer in standby.

I. Battery LED—Green light if the battery pack is charged; amber when charging.

J. Status LED—Blue light flashes each time you press a key or option, blinks in power save mode, and

remains solid in standby mode.

K. Arrow keys—Move through menus.

L. ALT key—Display an alternate screen, if available.

M. Back key—Back up to the main menu in a program

Top view

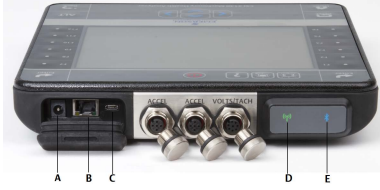

Figure 2-2: Connectors

A. Power supply connector.

B. Ethernet port.

C. Micro USB port.

D. Wireless LED.

E. Bluetooth® LED (not present on newer versions).

CAUTION!

To prevent damage to the analyzer:

• Do not connect a signal outside the range of 0 to 24 volts into the Accel input of the AMS

2140.

• Do not connect a signal outside the range of +/- 24 volts into the Volts / Tach input of the

AMS 2140.

2.4 Turn on the analyzer for the first time

Activate the battery pack before turning on the analyzer for the first time. The battery pack

is shipped in storage mode to protect the battery charge. Connect the provided power
