A-BPOINT I/O EtherNet/IP Adapter Catalog Number 1734-AENTInstallation Instructions

mportant User Information

Because of the variety of uses for the products described in this

publication, those responsible for the application and use of these

products must satisfy themselves that all necessary steps have been

taken to assure that each application and use meets all performance

and safety requirements, including any applicable laws, regulations,

codes and standards. In no event will Rockwell Automation be

responsible or liable for indirect or consequential damage resulting

from the use or application of these products.

Any illustrations, charts, sample programs, and layout examples

shown in this publication are intended solely for purposes of

example. Since there are many variables and requirements associated

with any particular installation, Rockwell Automation does not

assume responsibility or liability (to include intellectual property

liability) for actual use based upon the examples shown in this

publication.

Allen-Bradley publication SGI-1.1, Safety Guidelines for the

Application, Installation and Maintenance of Solid-State Control

(available from your local Rockwell Automation office), describes

some important differences between solid-state equipment and

electromechanical devices that should be taken into consideration

when applying products such as those described in this publication.

Reproduction of the contents of this copyrighted publication, in

whole or part, without written permission of Rockwell Automation, is

prohibited.

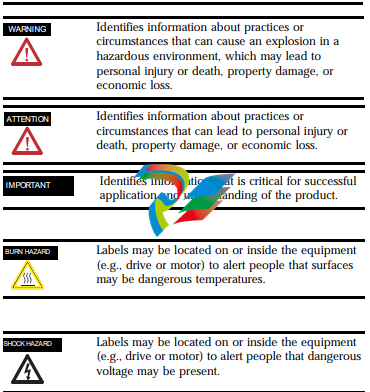

Throughout this publication, notes may be used to make you aware

of safety considerations. The following annotations and their

accompanying statements help you to identify a potential hazard,

avoid a potential hazard, and recognize the consequences of a

potential hazard

Environment and Enclosure

This equipment is intended for use in a Pollution

Degree 2 industrial environment, in overvoltage

Category II applications (as defined in IEC

publication 60664-1), at altitudes up to 2000 meters

without derating.

This equipment is considered Group 1, Class A

industrial equipment according to IEC/CISPR

Publication 11. Without appropriate precautions,

there may be potential difficulties ensuring

electromagnetic compatibility in other environments

due to conducted as well as radiated disturbance.

This equipment is supplied as "open type"

equipment. It must be mounted within an enclosure

that is suitably designed for those specific

environmental conditions that will be present and

appropriately designed to prevent personal injury

resulting from accessibility to live parts. The interior

of the enclosure must be accessible only by the use

of a tool. Subsequent sections of this publication

may contain additional information regarding

specific enclosure type ratings that are required to

comply with certain product safety certifications.

See NEMA Standards publication 250 and IEC

publication 60529, as applicable, for explanations of

the degrees of protection provided by different

types of enclosure. Also, see the appropriate

sections in this publication, as well as the

Allen-Bradley publication 1770-4.1 ("Industrial

Automation Wiring and Grounding Guidelines"), for

additional installation requirements pertaining to

this equipmen

Preventing Electrostatic Discharge

This equipment is sensitive to electrostatic

discharge, which can cause internal damage and

affect normal operation. Follow these guidelines

when you handle this equipment:

• Touch a grounded object to discharge

potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on

component boards.

• Do not touch circuit components inside the

equipment.

• If available, use a static-safe workstation.

• When not in use, store the equipment in

appropriate static-safe packaging.

ATTENTION POINT I/O is grounded through the DIN rail to

chassis ground. Use zinc-plated, yellow-chromated

steel DIN rail to assure proper grounding. Using

other DIN rail materials (e.g., aluminum, plastic,

etc.) which can corrode, oxidize or are poor

conductors, can result in improper or intermittent

platform grounding.

WARNING When you connect or disconnect the Removable

Terminal Block (RTB) with field side power

applied, an electrical arc can occur. This could

cause an explosion in hazardous location

installations.

Be sure that power is removed or the area is

nonhazardous before proceeding

Before You Begin

 To effectively use your adapter, note the following considerations.

Determine Compatibility

If using the 1734-AENT adapter with a 1756-ENBT module or

1788-ENBT module, use the following required firmware versions for

these bridge modules:

• 1756-ENBT firmware version 2.3 or greater

• 1788-ENBT firmware version 1.33 or greater

If you use the BootP Utility to assign IP addresses to the adapter, use
