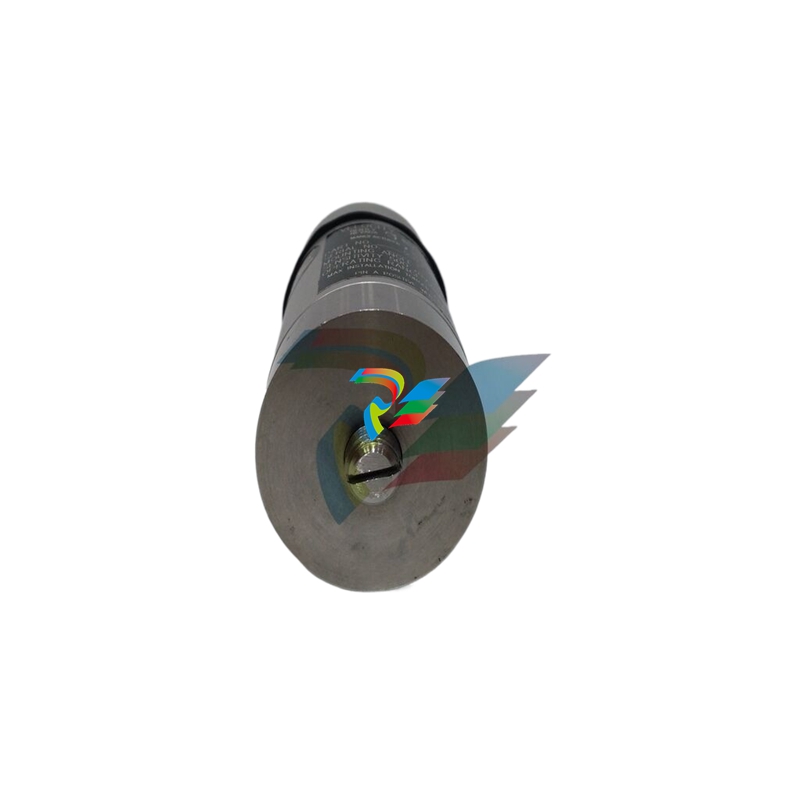

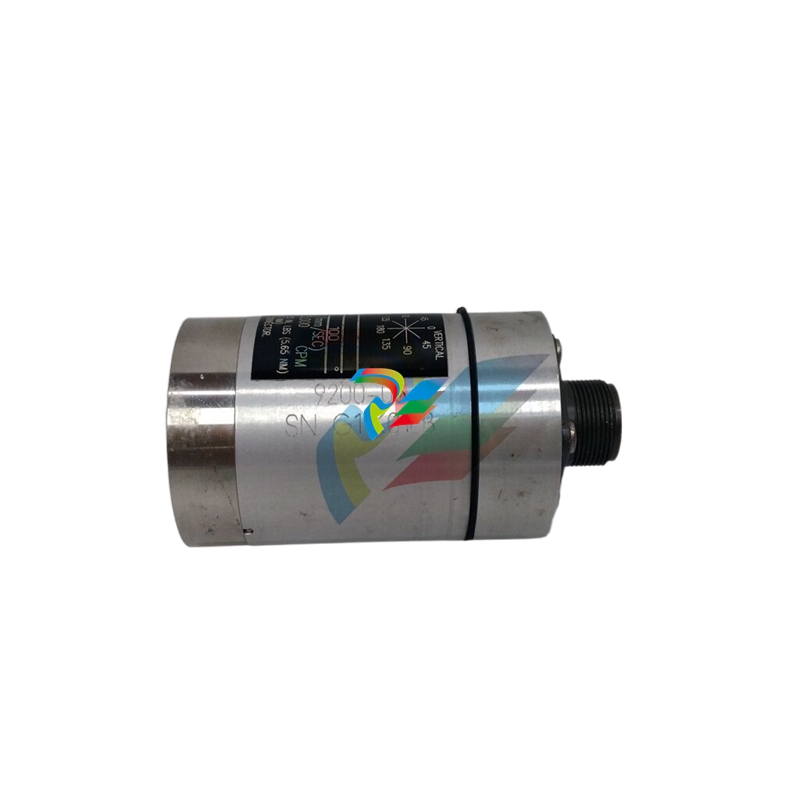

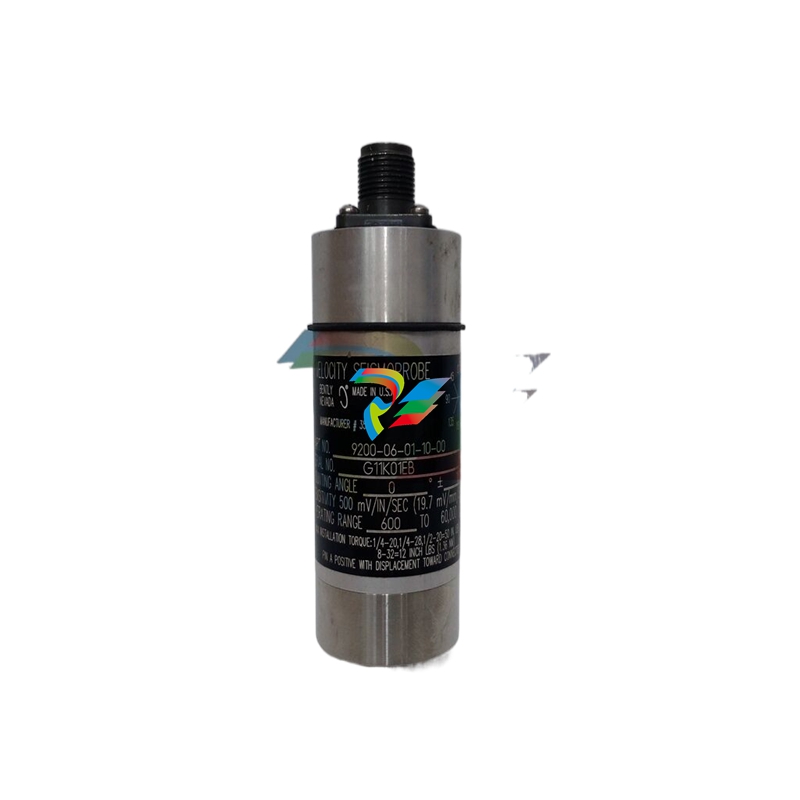

BENTLY 9200-06-01-10-00

The Bently 9200-06-01-10-00 is a highly specialized and valuable product in the field of industrial monitoring.

This is a velocity transducer that is engineered to measure the absolute vibration of a bearing box, housing, or structure with great precision. It is suitable for both continuous monitoring and periodic measurement when used in conjunction with test or fault diagnosis instrumentation. The transducer features a seismo probe design, which enables it to effectively measure the vibration of bearing housings, casings, and structures. It offers high-performance casing speed measurement and has a more solid structure, ensuring reliable and accurate results even in demanding industrial environments.

In terms of technical specifications, when properly terminated and positioned at the calibration angle, it has a sensitivity of 20 mv/mm/s (500 mv/in/s) ± 5% at 100 Hz (6,000 cpm) and 25 mm/s (1 in/s) ± 5% from zero to peak at 100 Hz (6,000 cpm). It has a frequency response ranging from the minimum operating frequency to 1 kHz (60,000 cpm), with typical values in the range of +0 to ± 3 dB. The Bently 9200-06-01-10-00 can withstand a maximum peak acceleration of 50 g and has a transverse sensitivity of ± 10% max. The lead length between the seismo probe and Bentley 3500 vibration monitor can be up to 305 m (1,000 ft). It has a typical height of 102 mm (4 in) and a diameter of 41 mm (1.6 in), with a typical weight of 480 g (17 ounces). Overall, the Bently 9200-06-01-10-00 is an essential tool for industries that require accurate and reliable vibration monitoring of their machinery.
