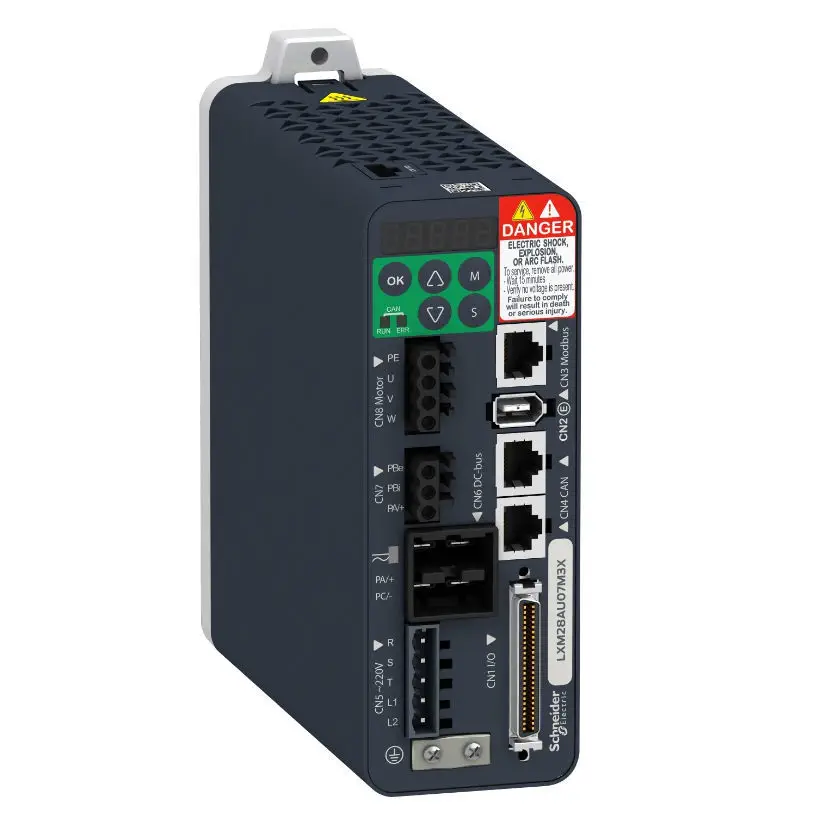

Schindler Single-phase servo-drive LXM28AUA5M3X

Format of the drive - Compact housing [Us] rated supply voltage - 200...240 V (- 10...15 %) for three phase 200...240 V (- 20...15 %) for single phase Supply voltage limits - 200…255 V three phase 170…255 V single phase

Supply frequency - 50/60 Hz - 5...5 % Network frequency - 47.5...63 Hz EMC filter - Without EMC filter Continuous output current - 0.64 A at 16 kHz Nominal power - 0.05 kW at 220 V 16 kHz switching frequency - 16 kHz Overvoltage category - III Maximum leakage current - 1.3 mA Output voltage - <= power supply voltage electrical isolation - Between power and control Type of cable - Shielded motor cable (temperature: 0…55 °C) copper Electrical connection - Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2) Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T) Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE) Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe) Discrete input number - 8 programmable (CN1) 1 pulse train input (PTI) (CN1) 2 fast capture (CN1) 1 safety function STO (CN9) Discrete input voltage - 24 V DC for logic Discrete input logic - Positive or negative (CN1) Discrete output number - 5 logic output (CN1) at 12...24 V DC 1 pulse train output (PTO) (CN1) Discrete output voltage - 12...24 V DC Discrete output logic - Positive or negative (CN1) analogue input number - 2 Absolute accuracy error - 0.1 % Analogue input type - V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits T_REF voltage analog input Control signal type - Servo motor encoder feedback CN2 Protection type - Against reverse polarity: inputs signal
