1. General Safety Precautions

• Power Handling: Ensure the power supply is disconnected before installing, removing, or maintaining the module to prevent electric shock, equipment damage, or operational failures.

• Environmental Requirements: Install the F3DIO20802 in a clean, dry environment with ambient temperature between -20°C and +60°C (-4°F to +140°F) and relative humidity ≤ 95% (non-condensing). Avoid exposure to direct sunlight, corrosive gases, excessive dust, or strong electromagnetic interference (EMI).

• Mechanical Protection: Handle the module with care to avoid physical impact, vibration, or dropping. Do not disassemble the casing or modify internal components without authorization, as this may void the warranty and cause safety hazards.

2. Installation Guidelines

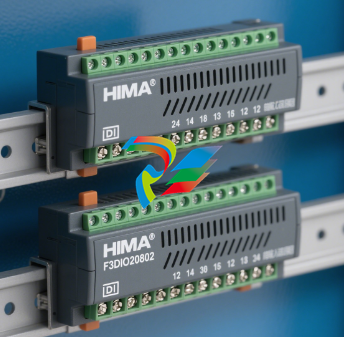

• Mounting: Use compatible DIN rail mounting brackets (EN 50022 standard) for secure installation. Ensure the mounting surface is flat and stable to prevent loosening during operation.

• Wiring Requirements: Follow the wiring diagram in the official manual for correct terminal connections. Use insulated wires with appropriate gauge (recommended 0.5–1.5 mm²) and ensure all connections are tight to avoid poor contact or overheating.

• Grounding: Connect the module’s protective earth terminal (PE) to a reliable protective ground system with low impedance to minimize EMI and ensure safety.

3. Power Supply Notes

• Voltage Rating: The F3DIO20802 requires a DC power supply of 24V ±10% (typical current consumption: 150mA max). Overvoltage or undervoltage beyond this range may cause permanent damage.

• Power Circuit Protection: Install a circuit breaker or fuse (rated 1A–2A) in the power supply line to protect against short circuits or overloads.

• Power-On Sequence: Power on the controller first, then the connected peripherals, to avoid voltage spikes that may affect module performance.

4. Operation and Configuration

• Programming Safety: Before downloading or modifying programs via HIMA’s programming software (e.g., HIMatrix Studio), ensure the program is verified for logic errors to prevent unexpected behavior.

• Parameter Settings: Configure input/output parameters (such as signal type, response time) according to the application requirements and save a backup of configuration files to facilitate recovery.

• Diagnostic Checks: Regularly monitor the module’s status indicators (e.g., power, error, I/O activity) and use diagnostic tools to check for faults like open circuits or short circuits in I/O channels.

5. Maintenance and Servicing

• Cleaning: Disconnect power before cleaning. Use a dry, lint-free cloth to wipe dust from the surface. Do not use liquids or abrasive cleaners.

• Inspection Schedule: Periodically check terminal screws for tightness, cable insulation for damage, and cooling vents for blockages (if applicable).

• Replacement Guidelines: If the module malfunctions, replace it with a genuine HIMA F3DIO20802 module to ensure compatibility and safety. Contact authorized service personnel for repairs beyond basic troubleshooting.

6. Disposal and Compliance

• Dispose of the module in accordance with local environmental regulations for electronic waste. Do not incinerate or discard in regular trash.

• This product complies with relevant industry standards (e.g., IEC 61508 for functional safety) when installed and operated as specified.
