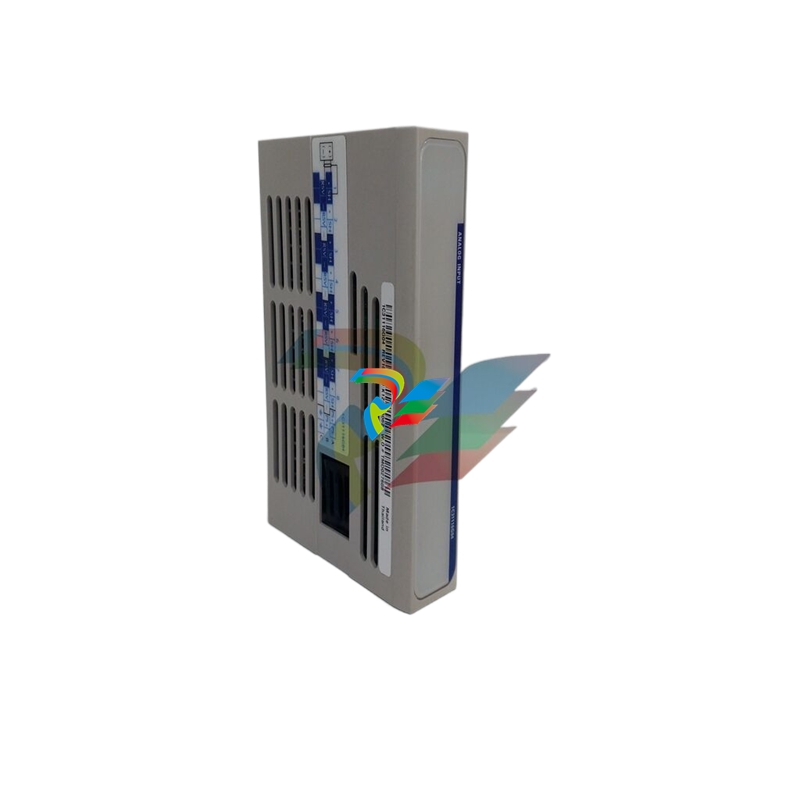

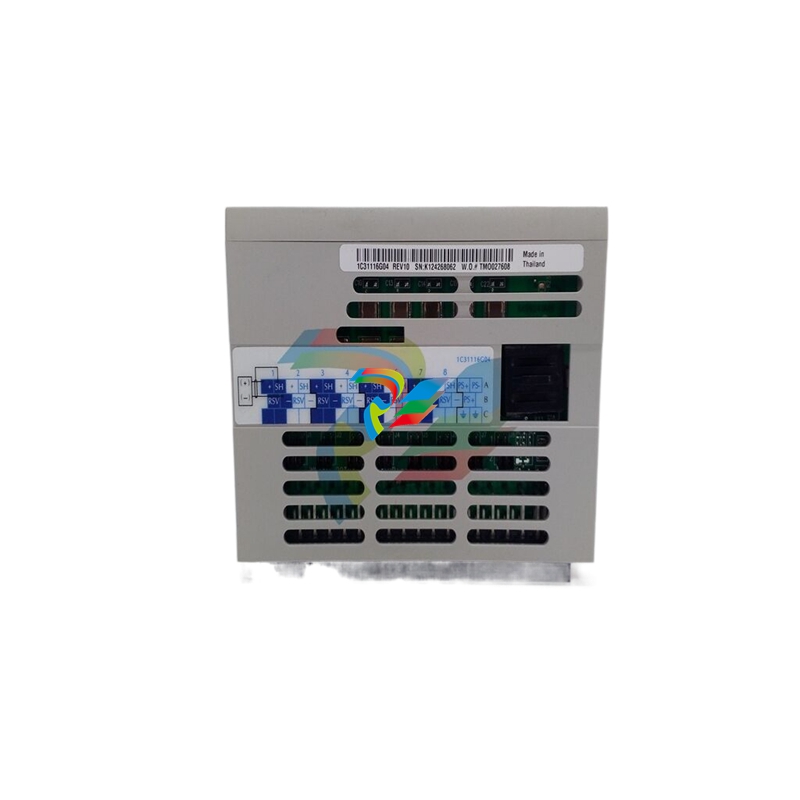

Emerson 1C31116G04



1. Signal Input Capability:

• It provides eight sets of individually isolated input channels, which can handle a variety of input signals. The input range is ±1V for voltage signals, and it also has an input range of 4 to 20 mA for current signals. This allows it to be compatible with different types of sensors and other signal sources in industrial applications.

1. Conversion and Transmission:

• The module performs analog-to-digital conversions with high precision. For one group, it has a 14-bit resolution, while for another group, it has a 13-bit resolution with a sign bit. This ensures accurate conversion of the input analog signals into digital signals for the Ovation system to process and analyze.

• It provides an interface to the Ovation serial I/O bus, enabling seamless data transmission between the module and the control system.

2. Protection and Reliability:

• The personality module provides surge protection to safeguard the input circuits of the electronics module. This helps protect the module from damage caused by electrical surges and transient voltages, enhancing its reliability and durability in industrial environments.

• It has excellent dielectric isolation between channels and between channels and logic, with a rating of 1000V AC/DC. This isolation helps prevent interference and ensures the stability and accuracy of signal transmission.
